Removal And Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  2. Disconnect the output shaft speed (OSS) sensor electrical connector.

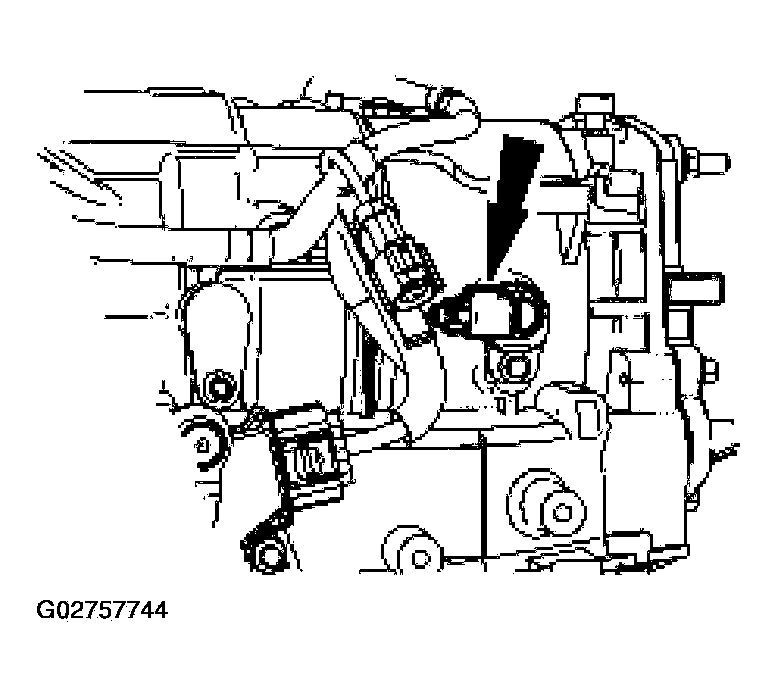

    Fig 1: Disconnecting Output Shaft Speed (OSS) Sensor Electrical Connector
    G02757744Courtesy of FORD MOTOR CO.
  3. Remove the OSS sensor bolt and the sensor
    1. Remove the OSS sensor bolt.
    2. Remove the OSS sensor.

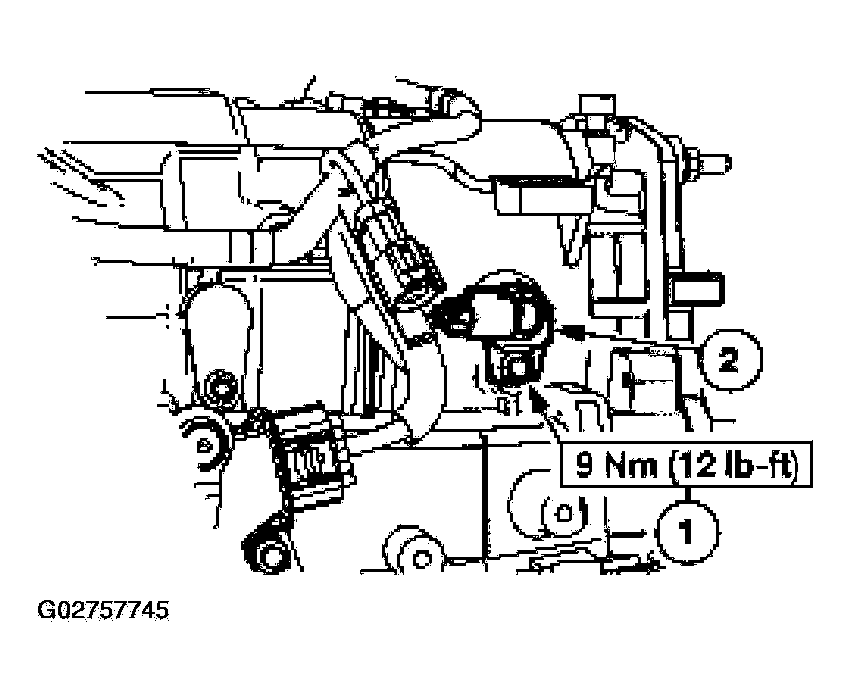

    Fig 2: Removing OSS Sensor Bolt
    G02757745Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
