Extension Housing Seal: Installation

    NOTE: When installing the new seal, make sure that the drain hole in the seal is in the 6 o'clock position.
    Fig 1: Installing Extension Housing Seal
    G02757607Courtesy of FORD MOTOR CO.
  1. Using the special tool, install a new extension housing seal.
    2. NOTE: The output shaft and the driveshaft are a balanced assembly.
    Fig 2: Installing Driveshaft
    G02757608Courtesy of FORD MOTOR CO.
  2. Install the driveshaft.
    • Align all the index marks and position the driveshaft on the transmission.
    • Install the driveshaft.
    3. NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

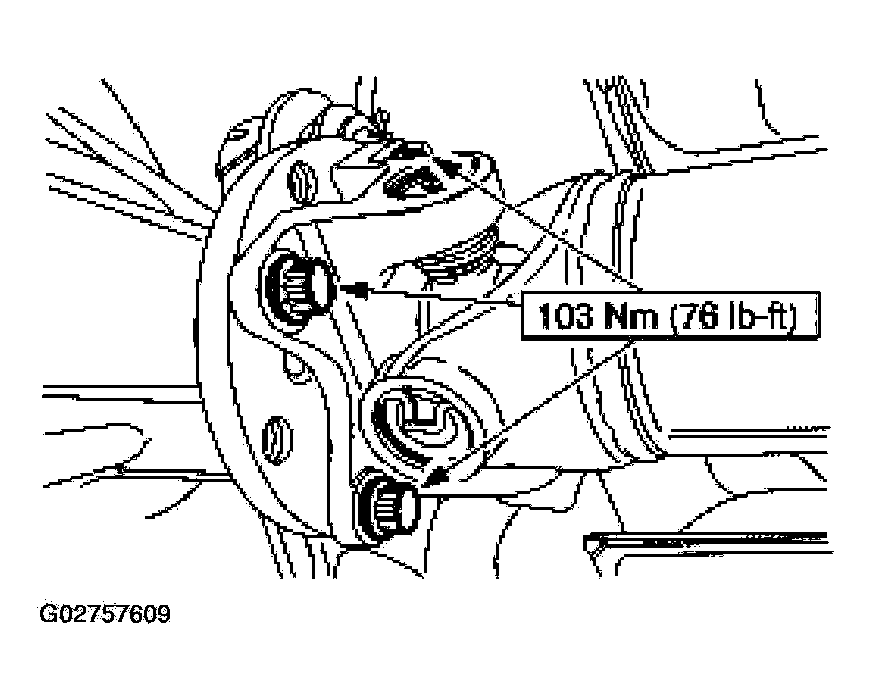

    Fig 3: Installing Retaining Bolts
    G02757609Courtesy of FORD MOTOR CO.
  3. Install the 4 retaining bolts.
  4. Check the level of the transmission fluid, add clean automatic transmission fluid as necessary.
