Digital Transmission Range (TR) Sensor: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
Disconnect the manual lever shift control cable.

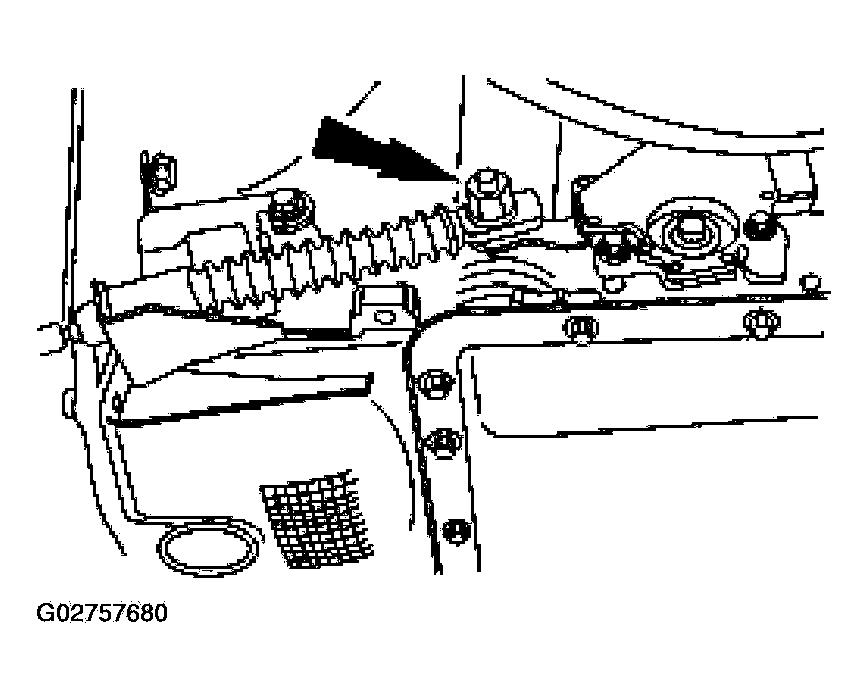

Fig 1: Disconnecting Manual Lever Shift Control Cable
Courtesy of FORD MOTOR CO.
Disconnect the digital TR sensor connector.

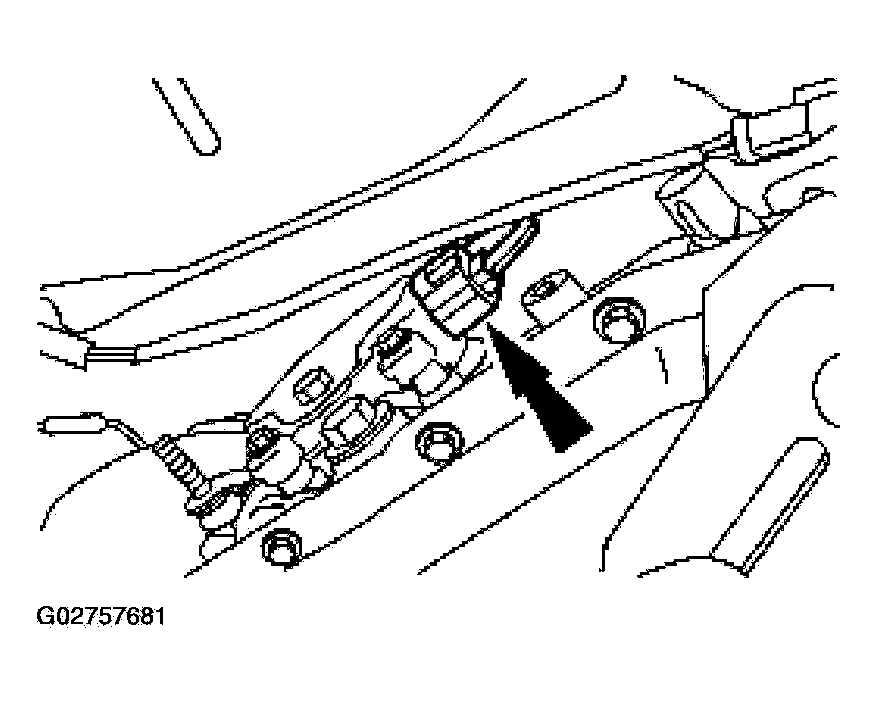

Fig 2: Disconnecting Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the digital TR sensor.

Fig 3: Removing Digital TR Sensor
Courtesy of FORD MOTOR CO.
