Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.

NOTE: Manual shift lever shaft must be in the neutral position.

Fig 2: Aligning Digital TR Sensor Slots

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

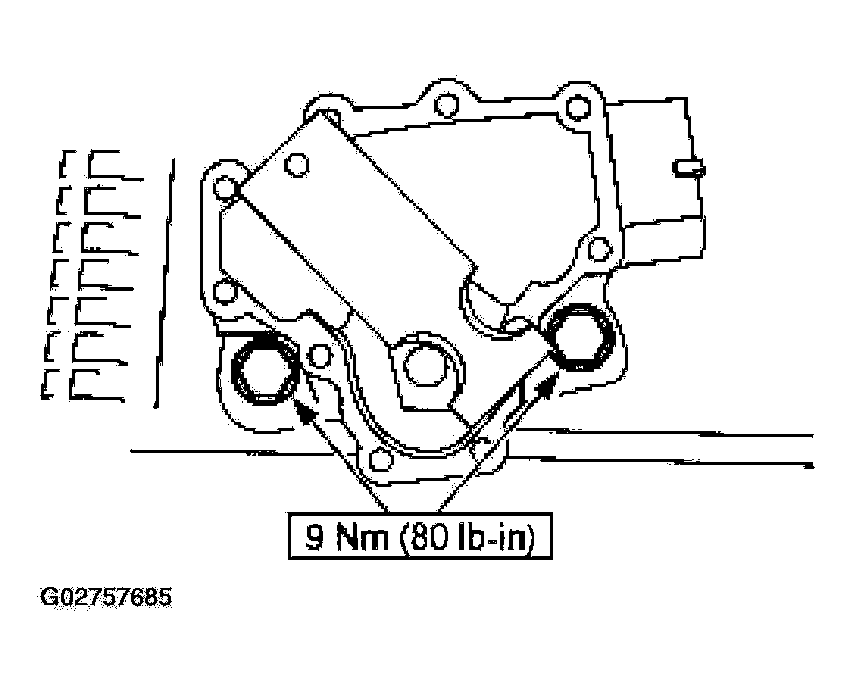

Fig 3: Tightening Screws

Courtesy of FORD MOTOR CO.

Tighten the screws in an alternating sequence.

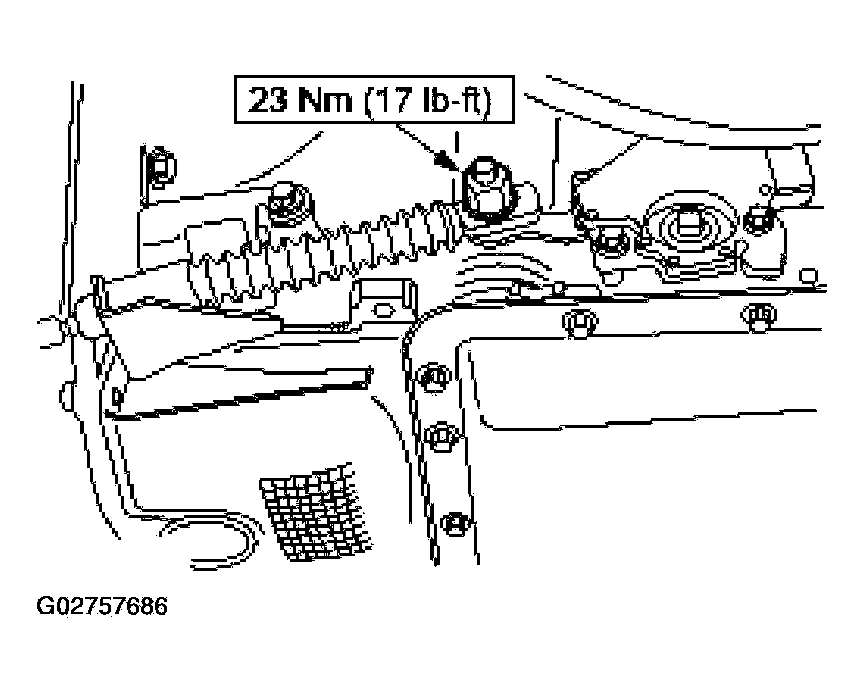

With the manual lever in overdrive, connect the shift lever control cable.

Fig 4: Connecting Shift Lever Control Cable
Courtesy of FORD MOTOR CO.

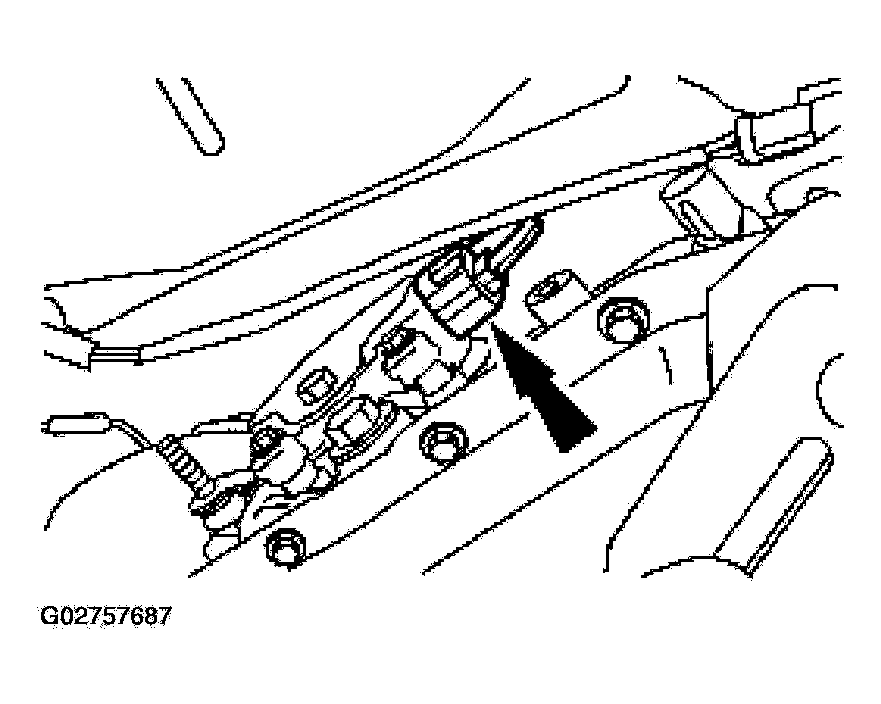

Connect the digital TR sensor electrical connector.

Fig 5: Connecting Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
