1-2 Accumulator: Removal

  1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.

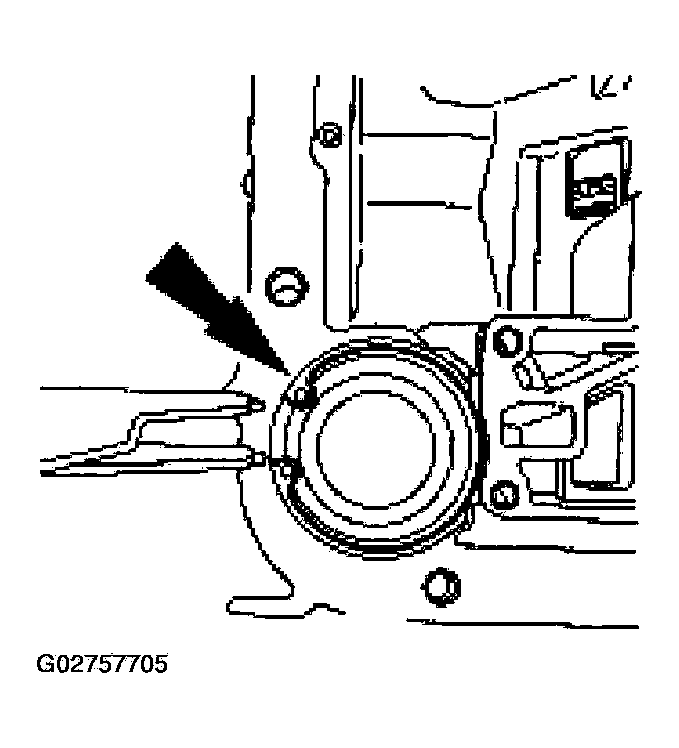

    Fig 1: Removing Accumulator Piston Retaining Ring
    G02757705Courtesy of FORD MOTOR CO.
    2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.

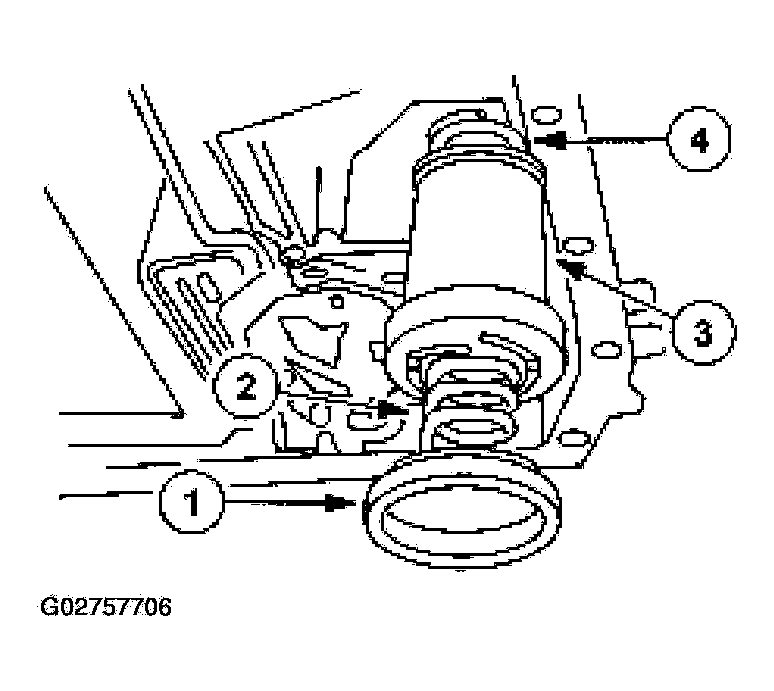

    Fig 2: Removing 1-2 Accumulator
    G02757706Courtesy of FORD MOTOR CO.
  2. Remove the 1-2 accumulator.
    1. Remove the 1-2 accumulator cover.
    2. Remove the lower 1-2 accumulator spring.
    3. Remove the accumulator piston.
    4. Remove the upper 1-2 accumulator spring.
