Pinpoint Test C: The Control Linkage Is Binding

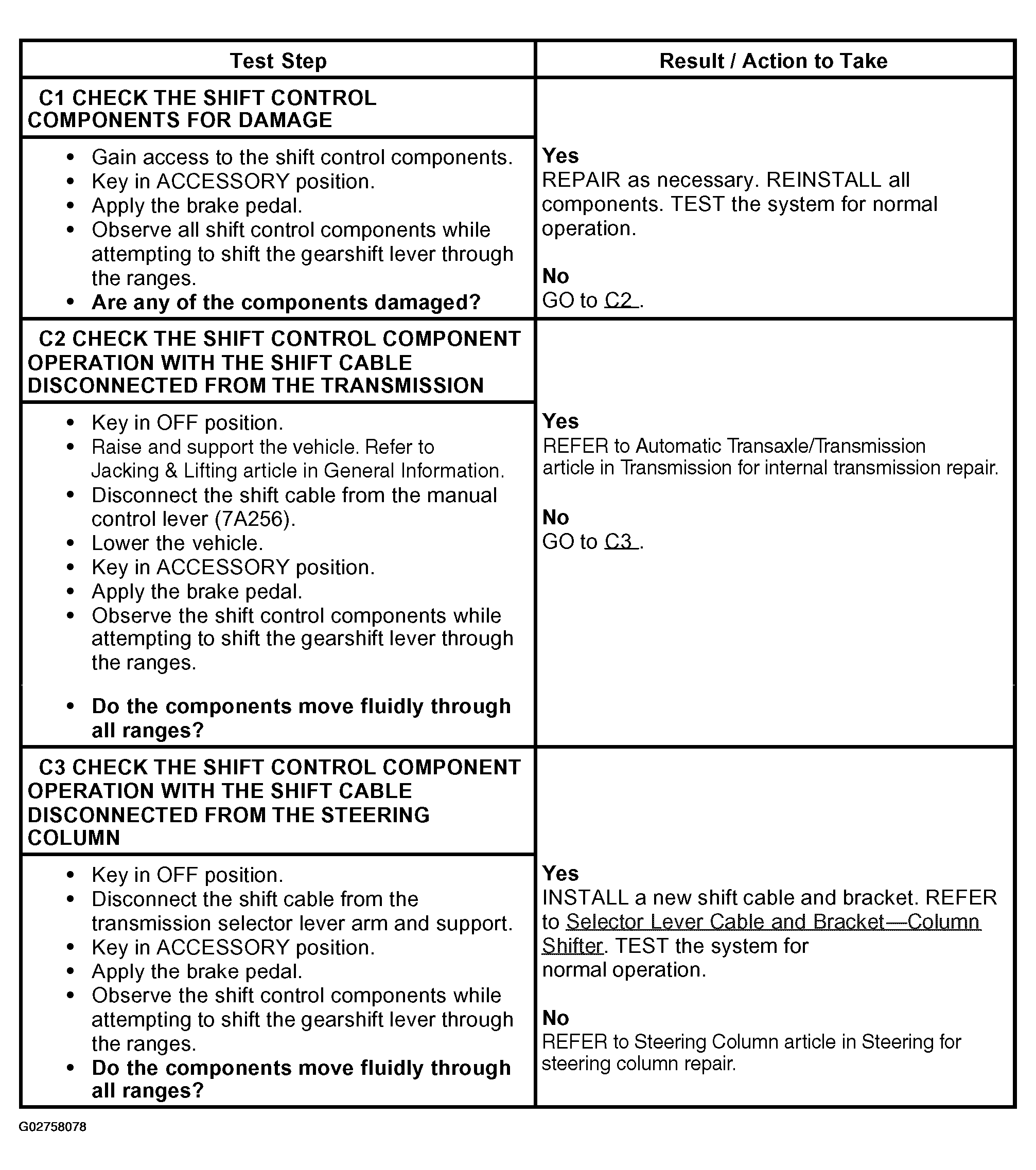

Fig 1: Pinpoint Test C Chart - Control Linkage Is Binding (C1-C3)

G02758078

Courtesy of FORD MOTOR CO.
