Coupling - Spring Lock: Connect

WARNING: This page is about a different car, the 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect and clean both coupling ends.

NOTE: Install new O-ring seals (9229).

NOTE: Lubricate the O-ring seals with 5W30 engine oil meeting Ford specification WSS-M2C153-G or equivalent prior to installation to help seal and ease the installation.

Push together the spring lock coupling fittings until the spring engages.

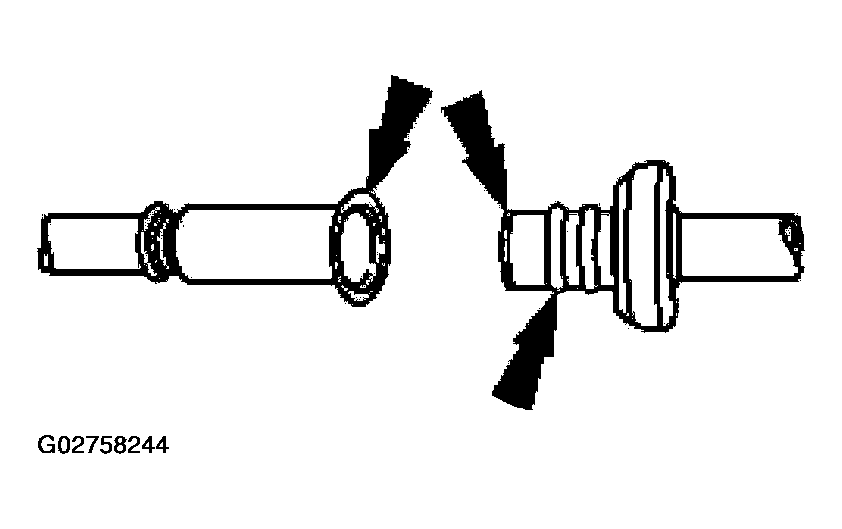

Fig 1: Installing Spring Lock Coupling

Courtesy of FORD MOTOR CO.
