Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the fan shroud. For additional information, refer to ENGINE COOLING .
  3. Remove the alternator. For additional information, refer to BATTERY & CHARGING SYSTEM .
  4. Remove the front wheel and tire assemblies. For additional information, refer to SUSPENSION SYSTEM .
  5. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PARTS REMOVAL STEPS SPECIFICATION

    Part Steps
    Left-hand insulator 2-6
    Right-hand insulator 1, 3, 4-6, 8

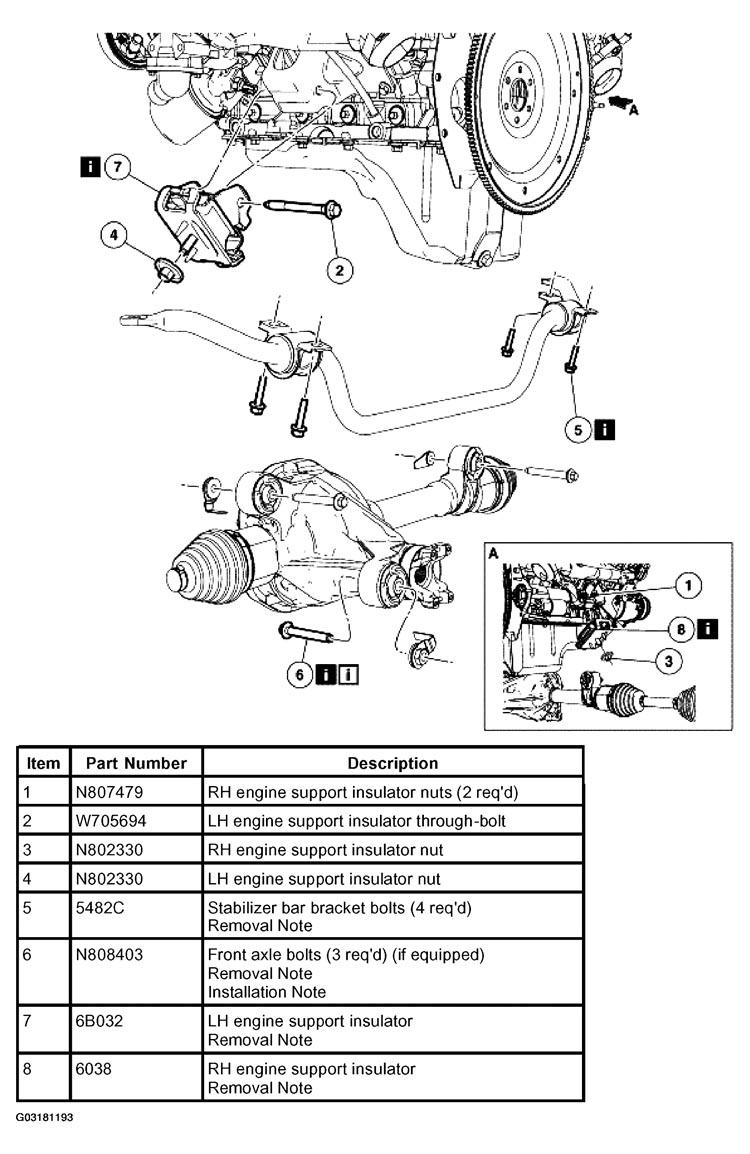

    Fig 1: Identifying Left And Right-Hand Insulator
    G03181193Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
  7. Install the front wheel and tire assemblies. For additional information, refer to SUSPENSION SYSTEM .
  8. Install the alternator. For additional information, refer to BATTERY & CHARGING SYSTEM .
  9. Install the fan shroud. For additional information, refer to ENGINE COOLING .
