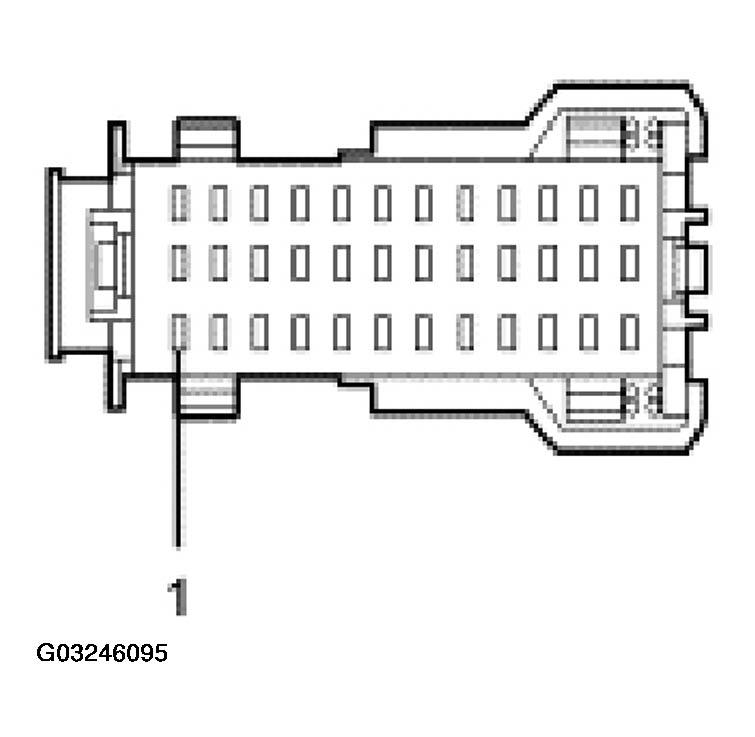

Smart Junction Box (SJB) C2280a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. SJB C2280A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
1205 (BK) SJB ground |
Less than 5 ohms between the SJB connector and ground. |
