Pinpoint Test L: No Module/Network Communication - SCP Network

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

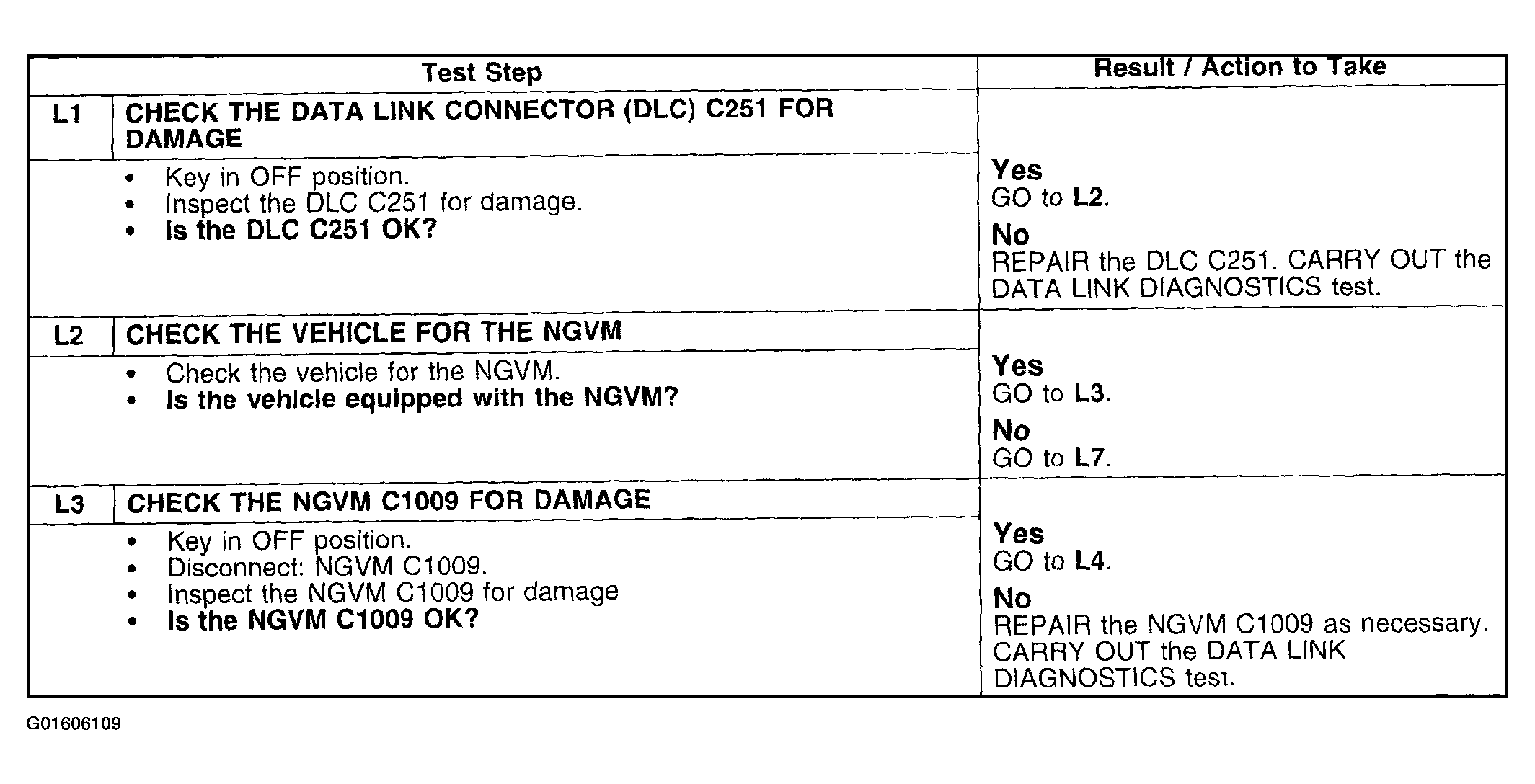

Fig 1: Pinpoint Test L: No Module/Network Communication - SCP Network (L1-L3)

Courtesy of FORD MOTOR CO.

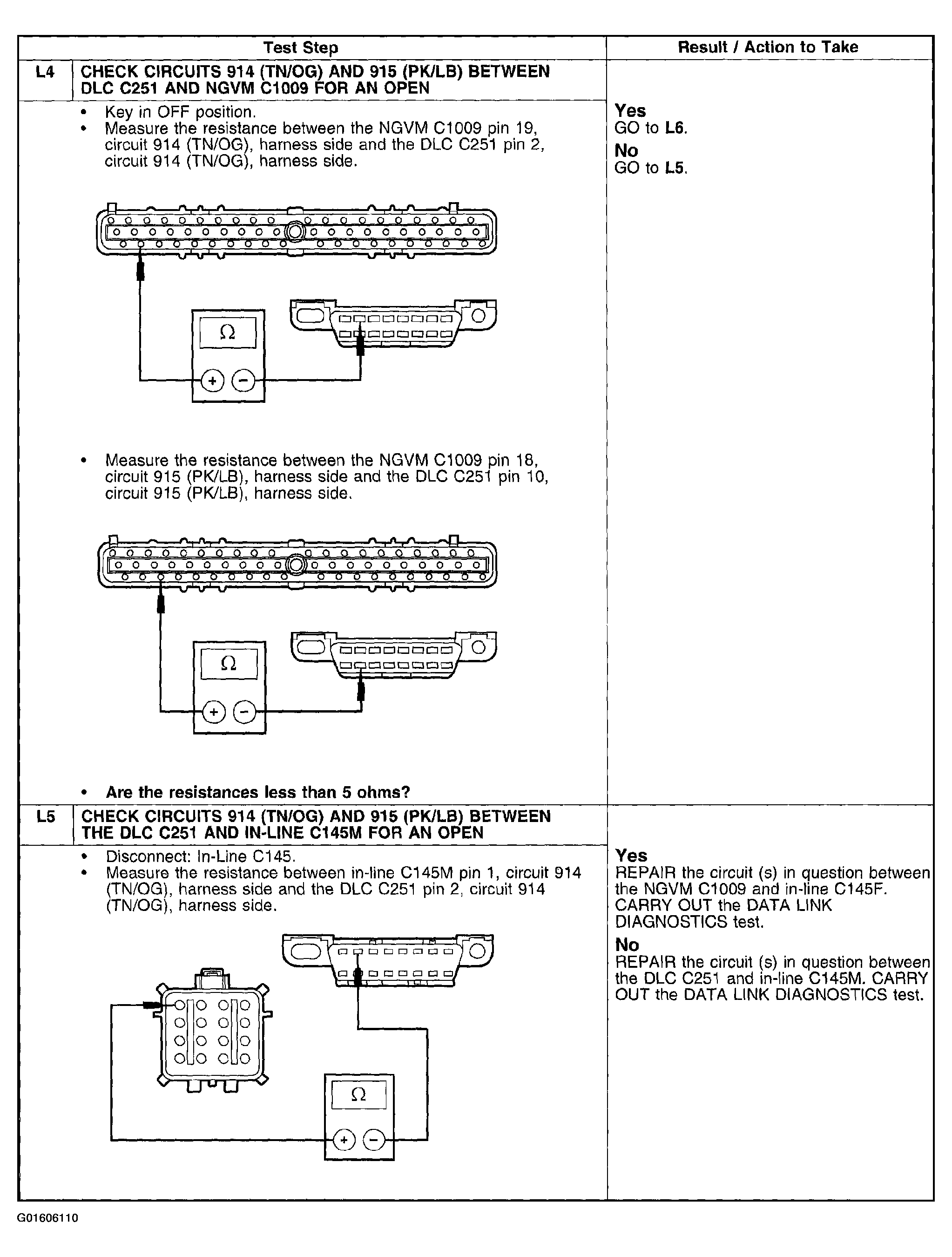

Fig 2: Pinpoint Test L: No Module/Network Communication - SCP Network (L4-L5)

Courtesy of FORD MOTOR CO.

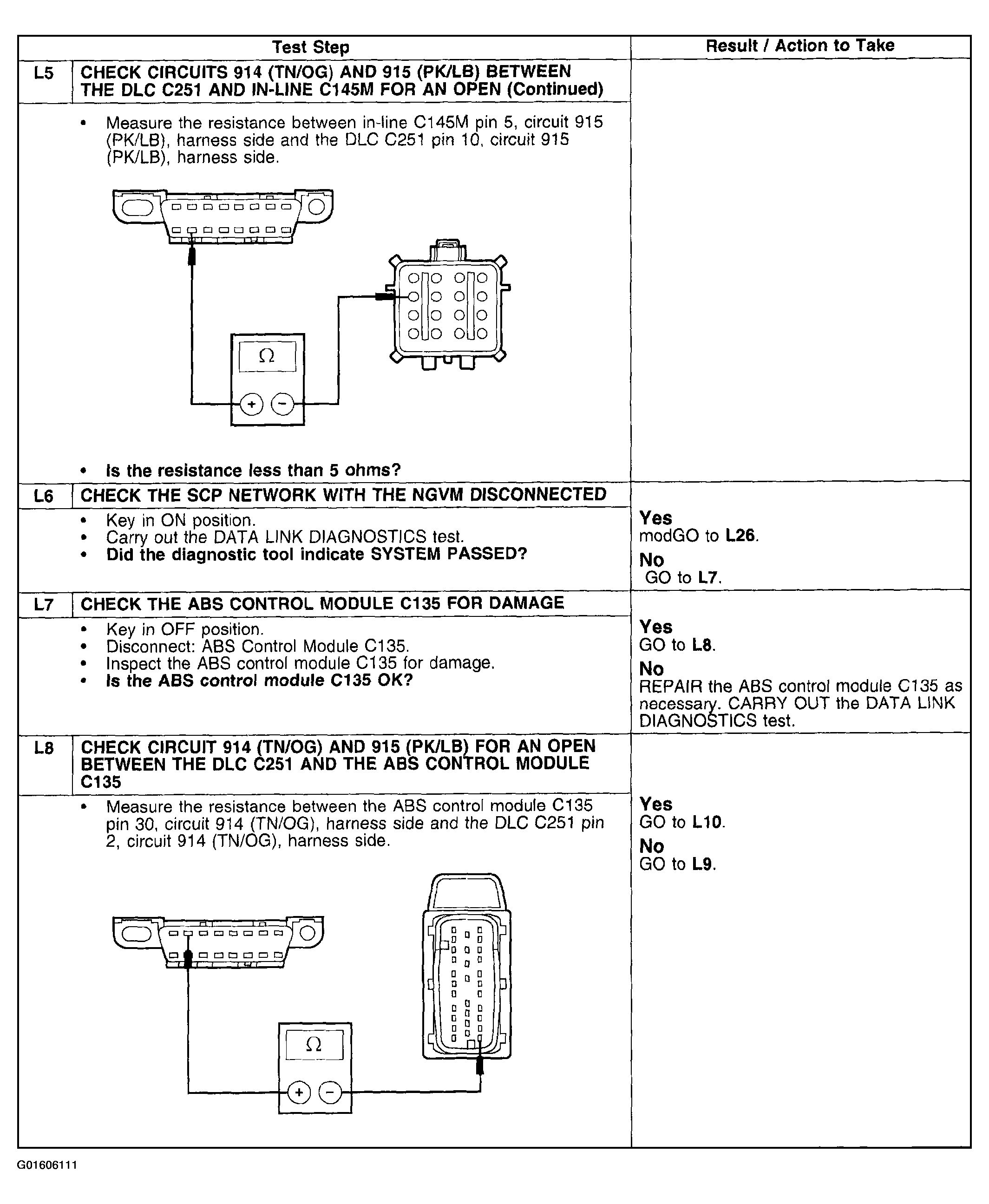

Fig 3: Pinpoint Test L: No Module/Network Communication - SCP Network (L5 Cont.-L8)

Courtesy of FORD MOTOR CO.

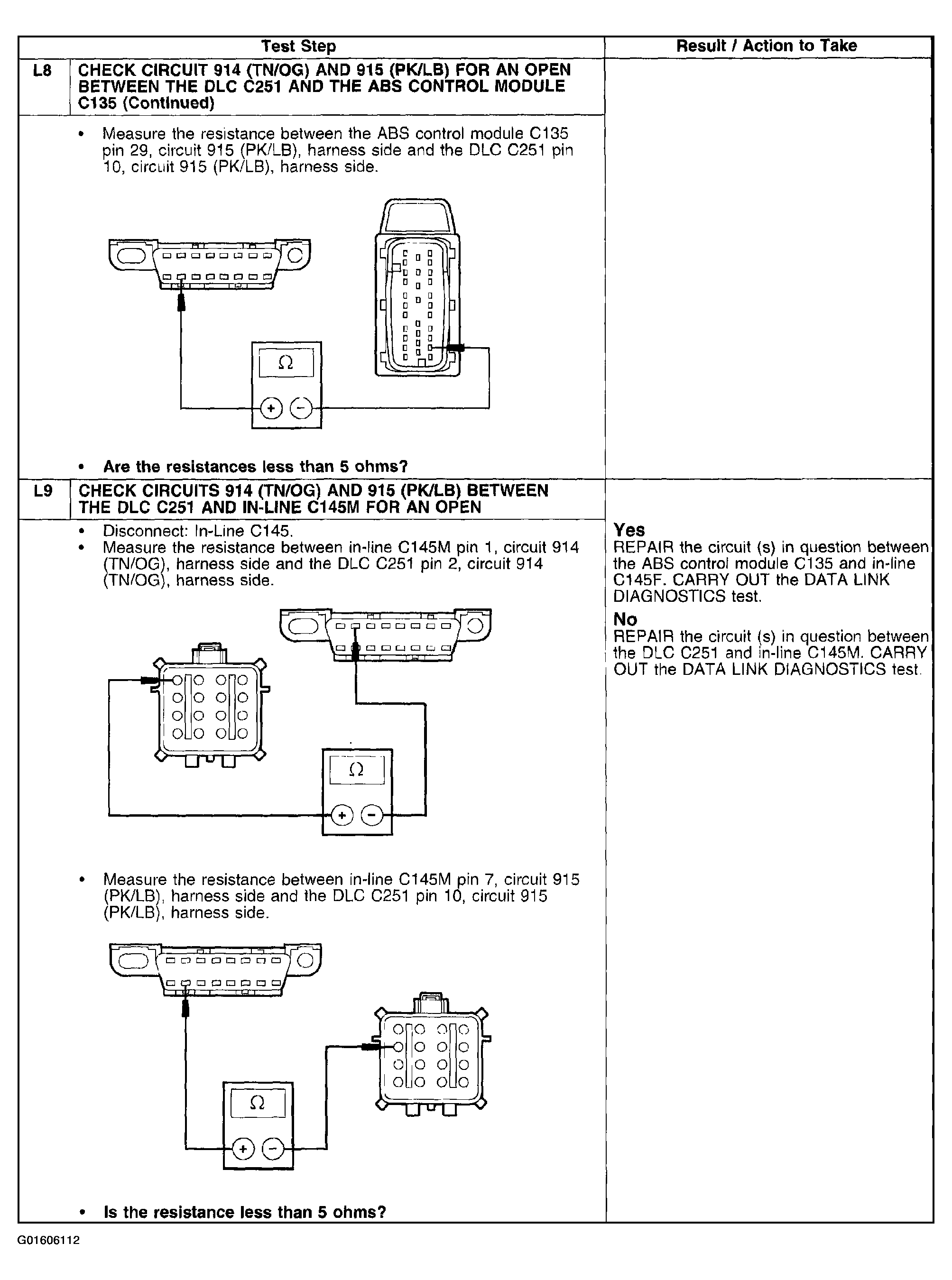

Fig 4: Pinpoint Test L: No Module/Network Communication - SCP Network (L8 Cont.-L9)

Courtesy of FORD MOTOR CO.

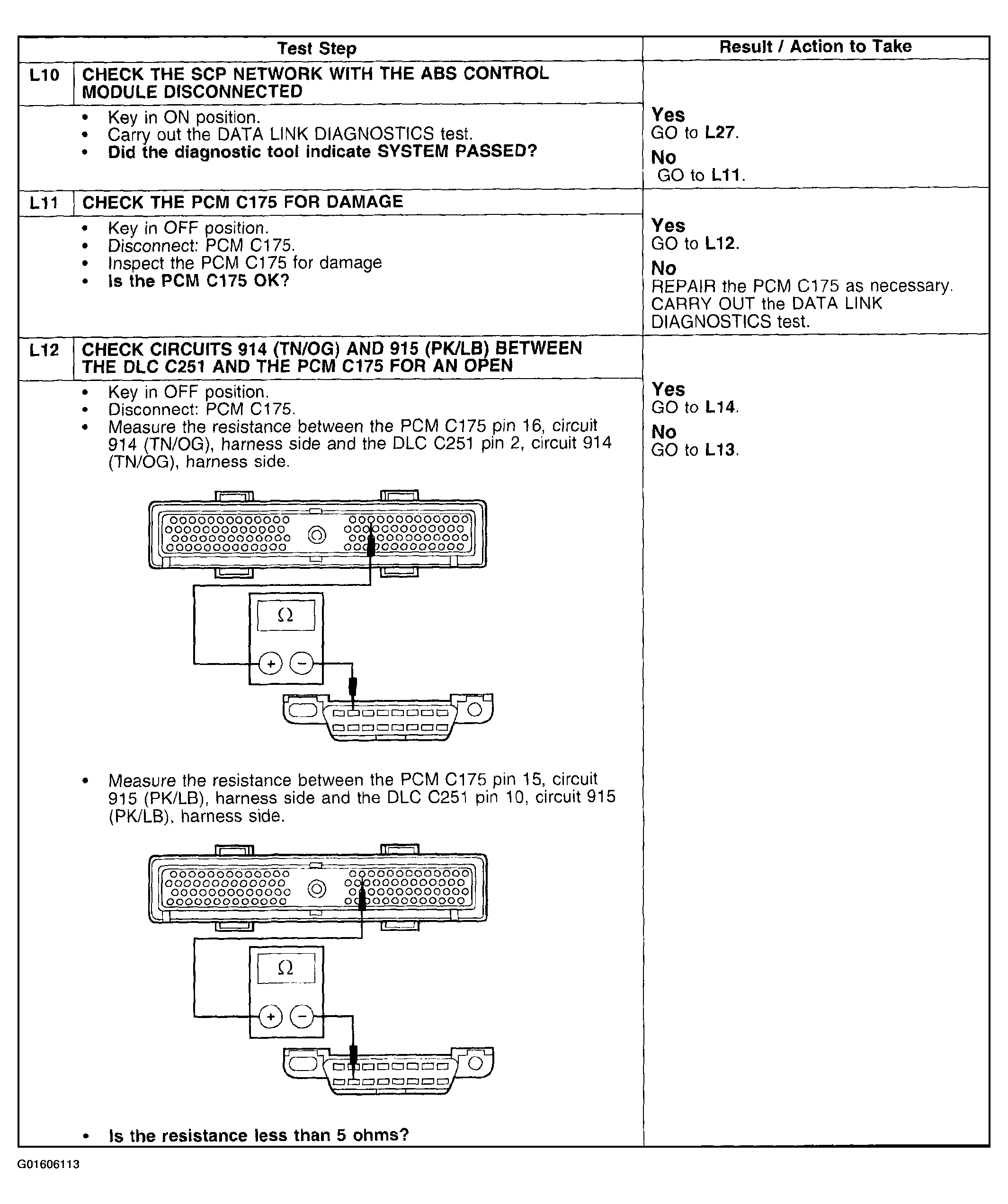

Fig 5: Pinpoint Test L: No Module/Network Communication - SCP Network (L10-L12)

Courtesy of FORD MOTOR CO.

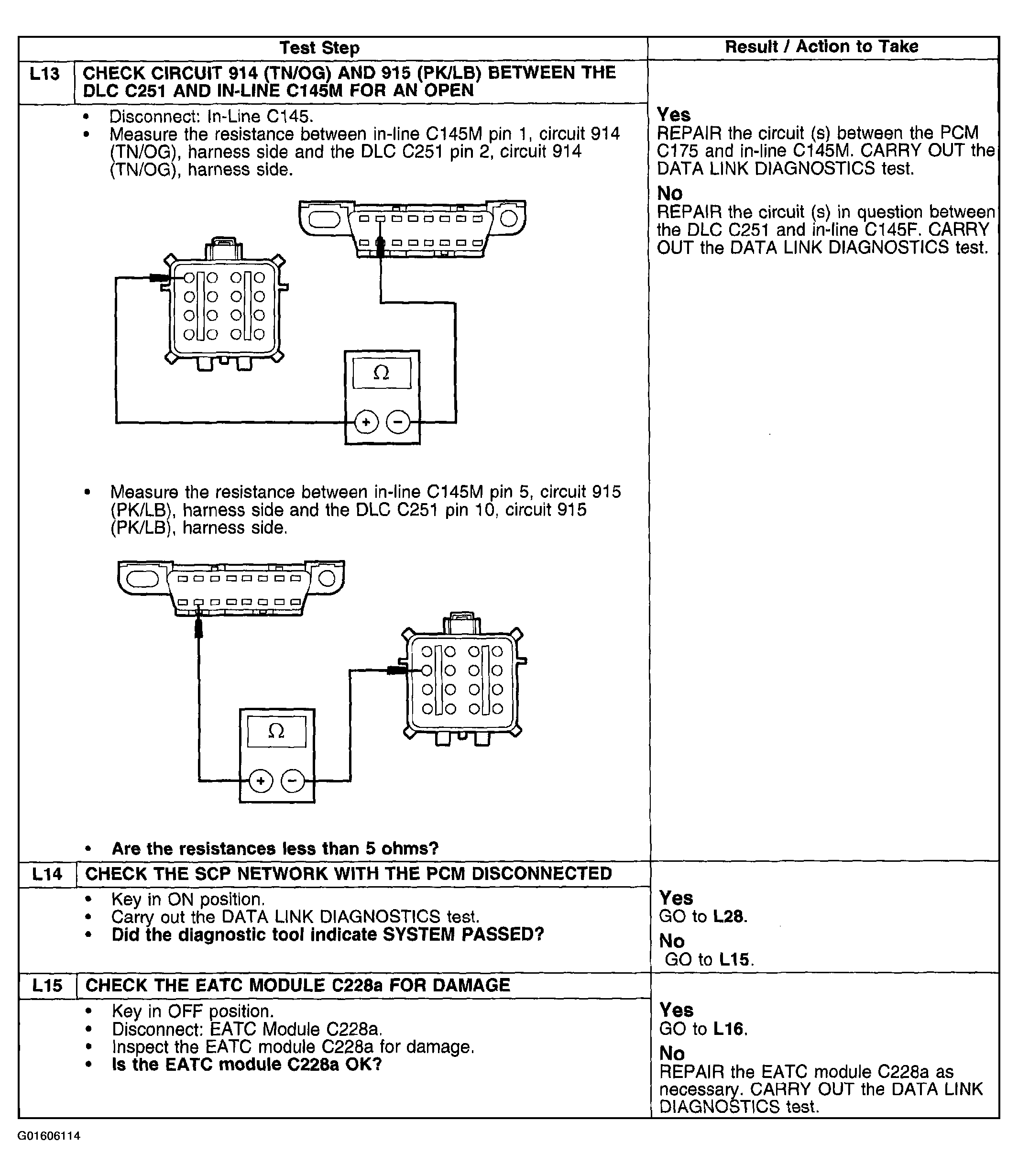

Fig 6: Pinpoint Test L: No Module/Network Communication - SCP Network (L13-L15)

Courtesy of FORD MOTOR CO.

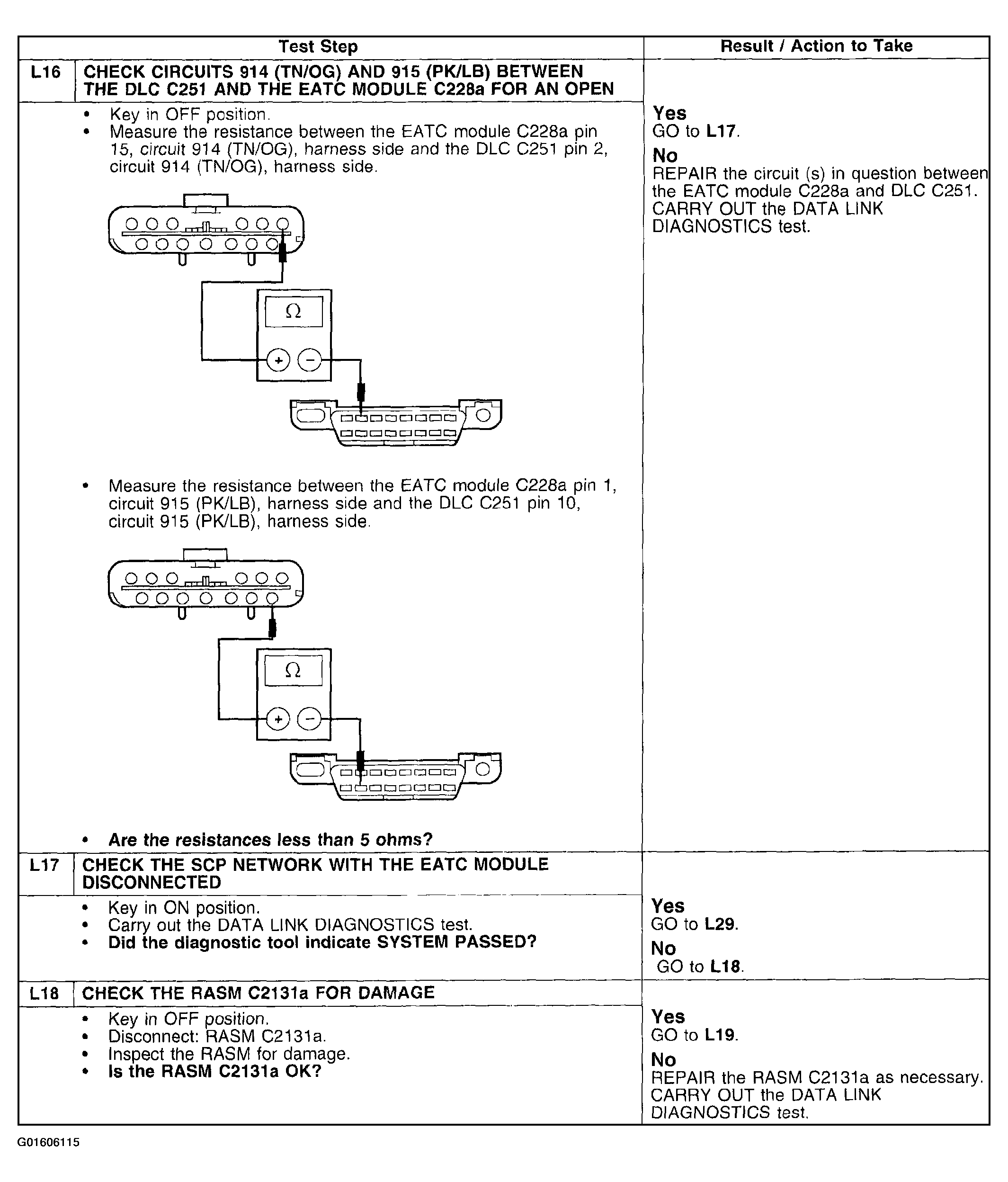

Fig 7: Pinpoint Test L: No Module/Network Communication - SCP Network (L16-L18)

Courtesy of FORD MOTOR CO.

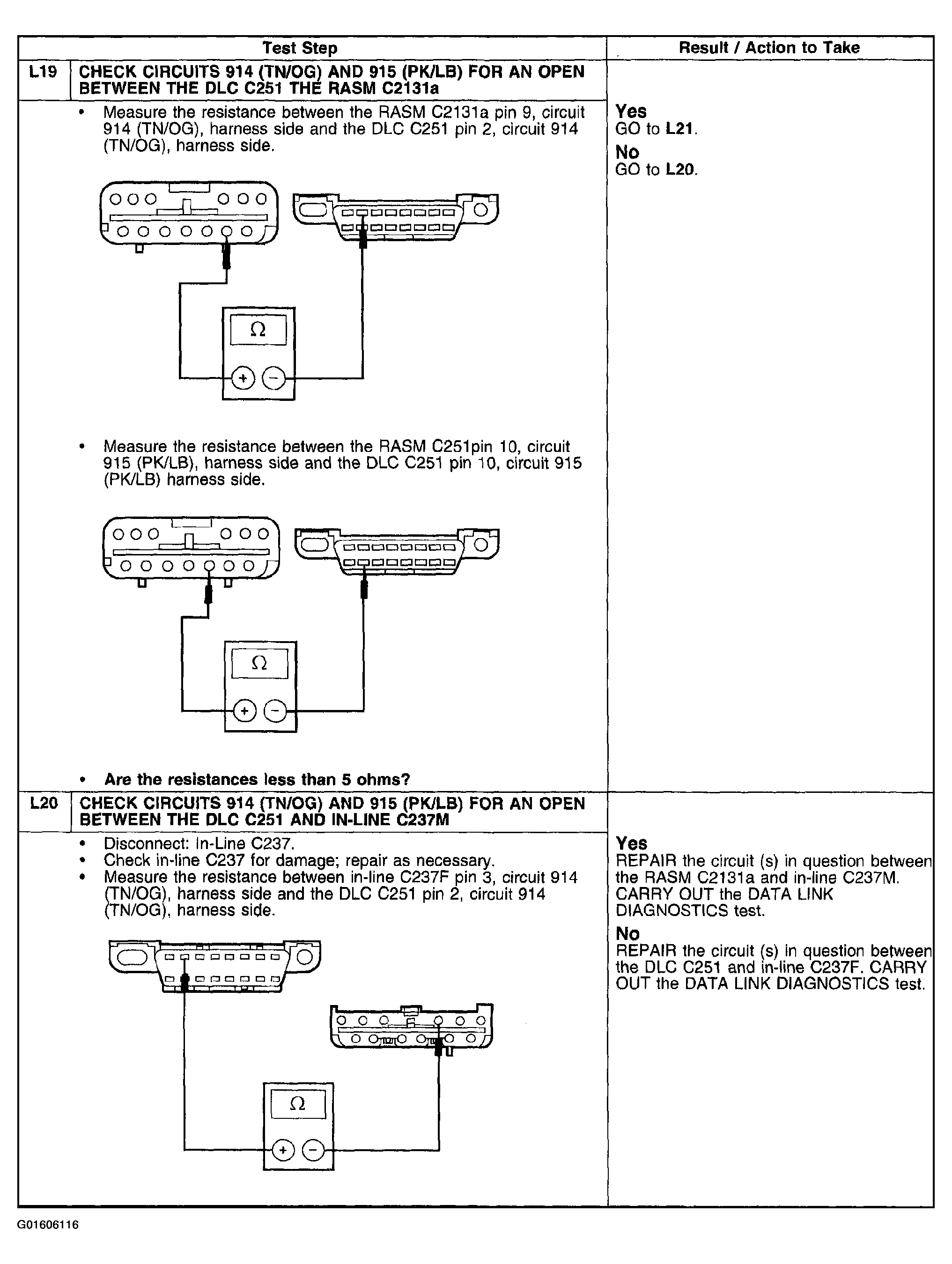

Fig 8: Pinpoint Test L: No Module/Network Communication - SCP Network (L19-L20)

Courtesy of FORD MOTOR CO.

Fig 9: Pinpoint Test L: No Module/Network Communication - SCP Network (L20 Cont.-L23)

Courtesy of FORD MOTOR CO.

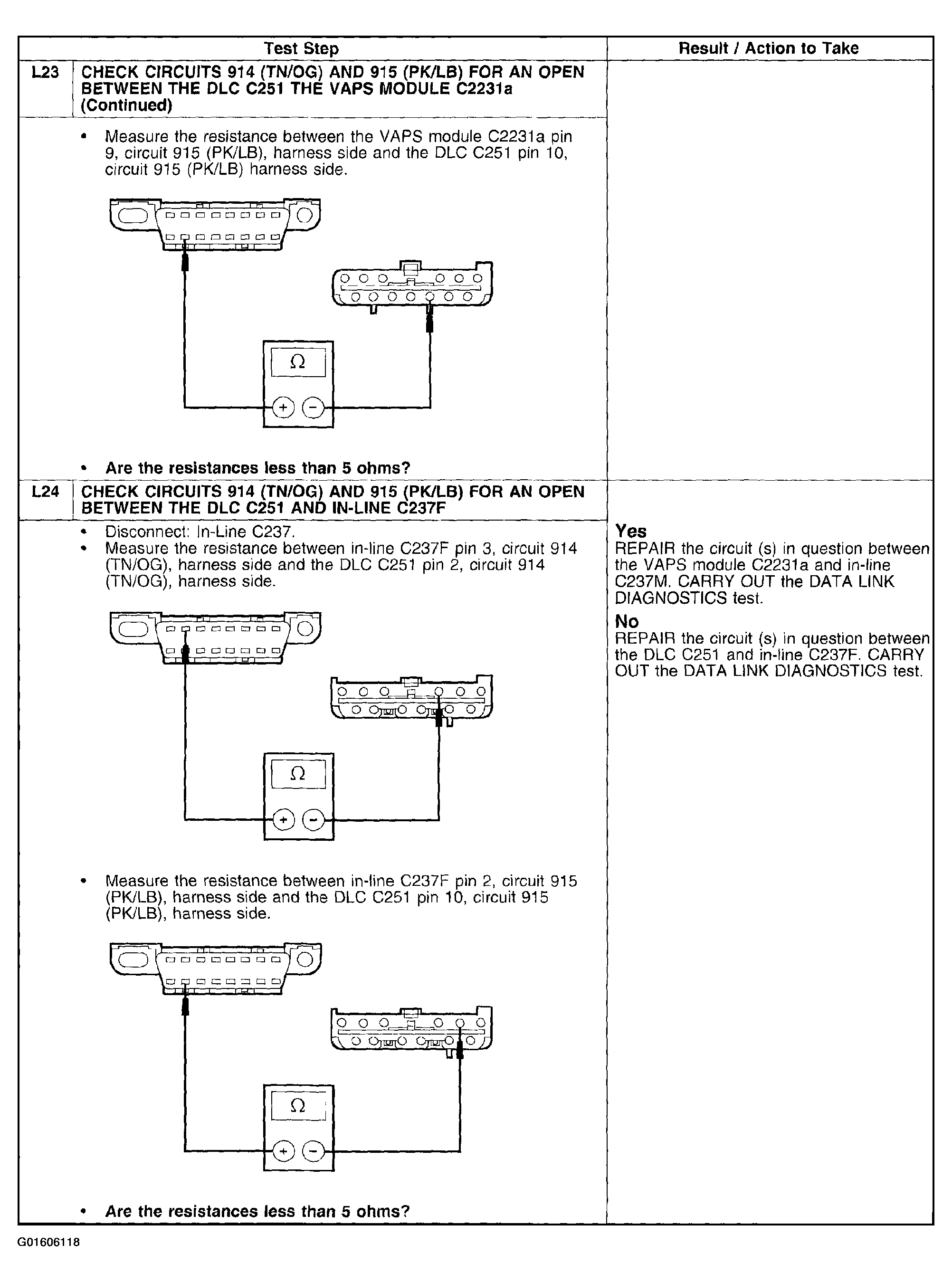

Fig 10: Pinpoint Test L: No Module/Network Communication - SCP Network (L23 Cont.-L24)

Courtesy of FORD MOTOR CO.

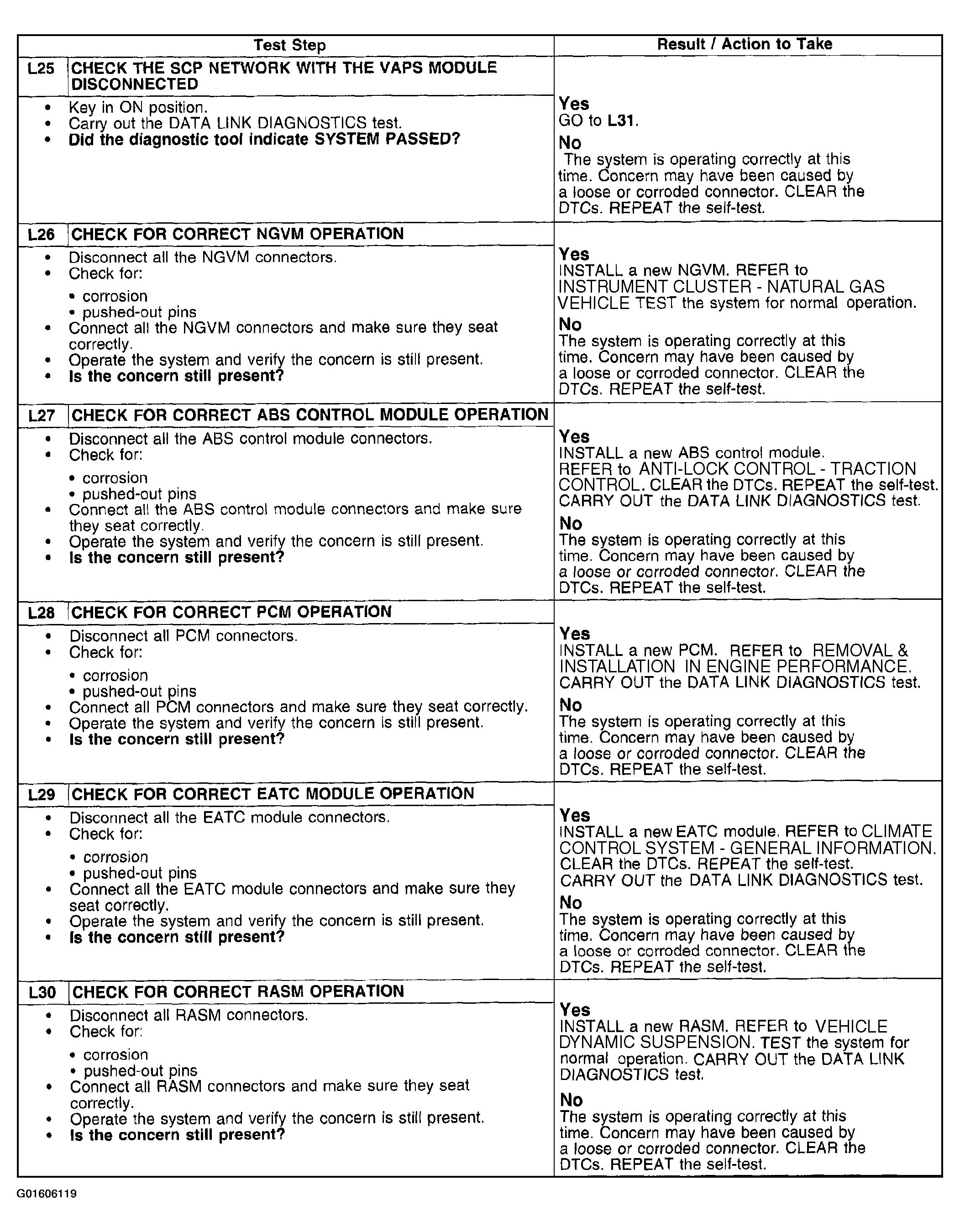

Fig 11: Pinpoint Test L: No Module/Network Communication - SCP Network (L25-L30)

Courtesy of FORD MOTOR CO.

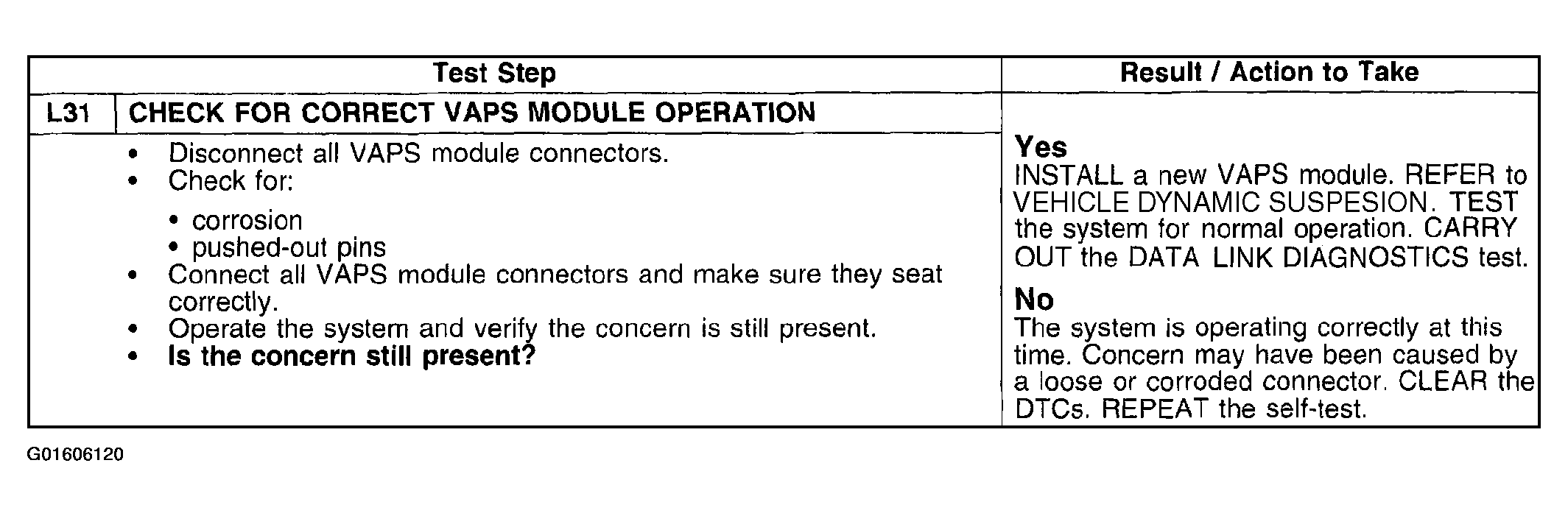

Fig 12: Pinpoint Test L: No Module/Network Communication - SCP Network (L31)

Courtesy of FORD MOTOR CO.
