Ignition Coil-On-Plug: Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Remove the RH ignition coil cover bolts and the cover.
    Fig 1: Removing RH Ignition Coil Cover Bolts And Cover
    G02754730Courtesy of FORD MOTOR CO.
  4. Remove the ignition coil.
    1. Disconnect the connectors.
    2. Remove the ignition coils.

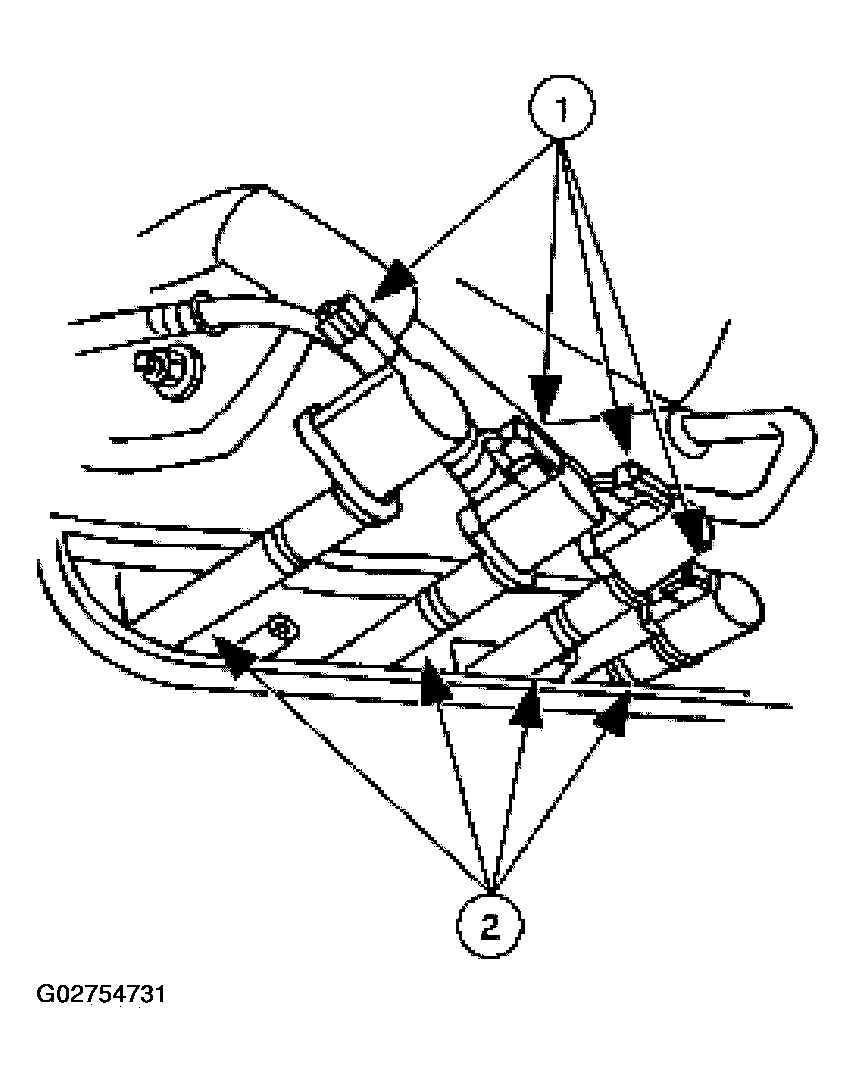

    Fig 2: Removing Ignition Coils
    G02754731Courtesy of FORD MOTOR CO.
  5. Remove the LH ignition coil cover bolts and the cover.

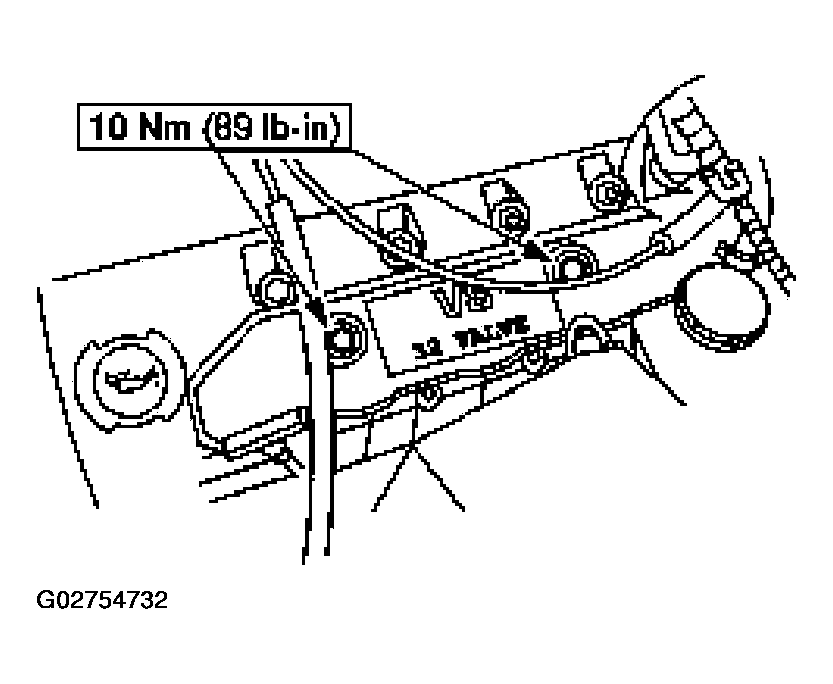

    Fig 3: Removing LH Ignition Coil Cover Bolts And Cover
    G02754732Courtesy of FORD MOTOR CO.
  6. Remove the ignition coil.
    1. Disconnect the connectors.
    2. Remove the ignition coils.

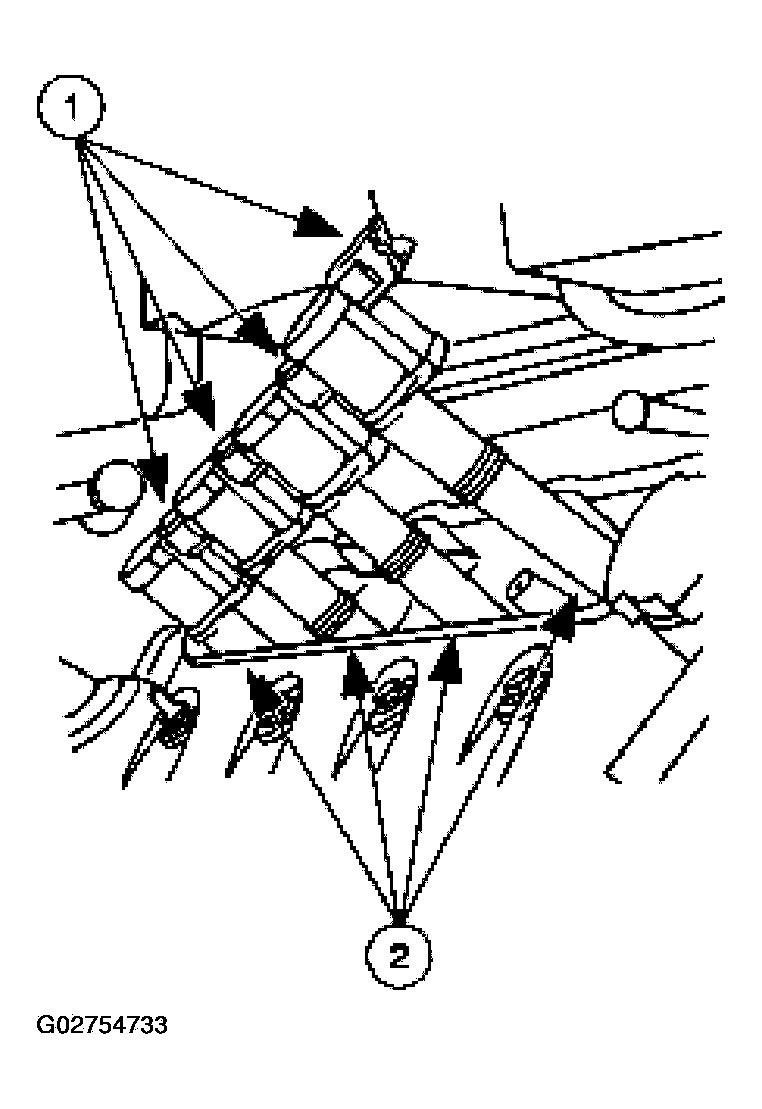

    Fig 4: Removing Ignition Coils
    G02754733Courtesy of FORD MOTOR CO.
