Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disengage the 4 retaining clips by first pulling down on the front of the overhead console and then the rear of the overhead console.
    • Disconnect the electrical connectors.

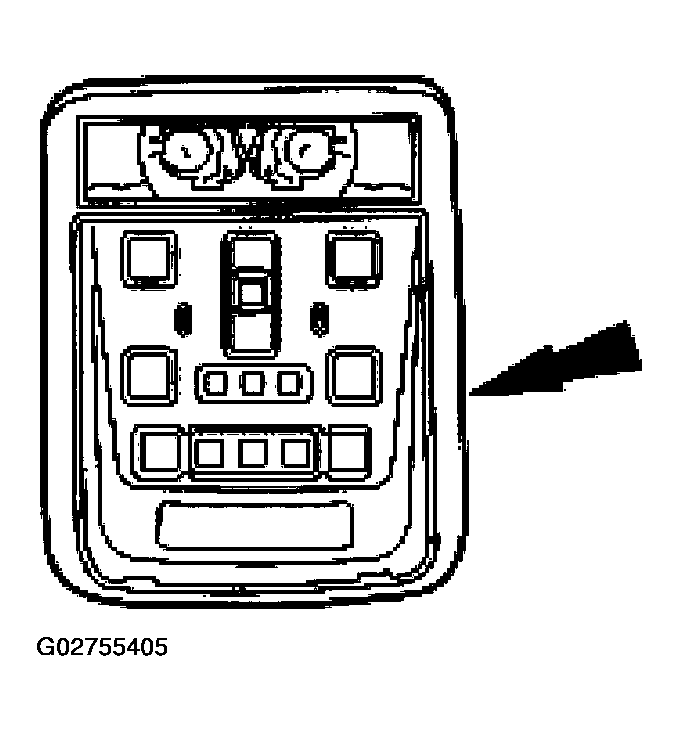

    Fig 1: Identifying Message Central Module
    G02755405Courtesy of FORD MOTOR CO.
  3. Remove the four screws and the message center module.
    Fig 2: Removing Screws Of Message Center Module
    G02755406Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
