Removal and Installation

Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the anti-lock brake system (ABS) module electrical connectors.
- Disconnect the control module electrical connector.
- Disconnect the pump motor electrical connector.

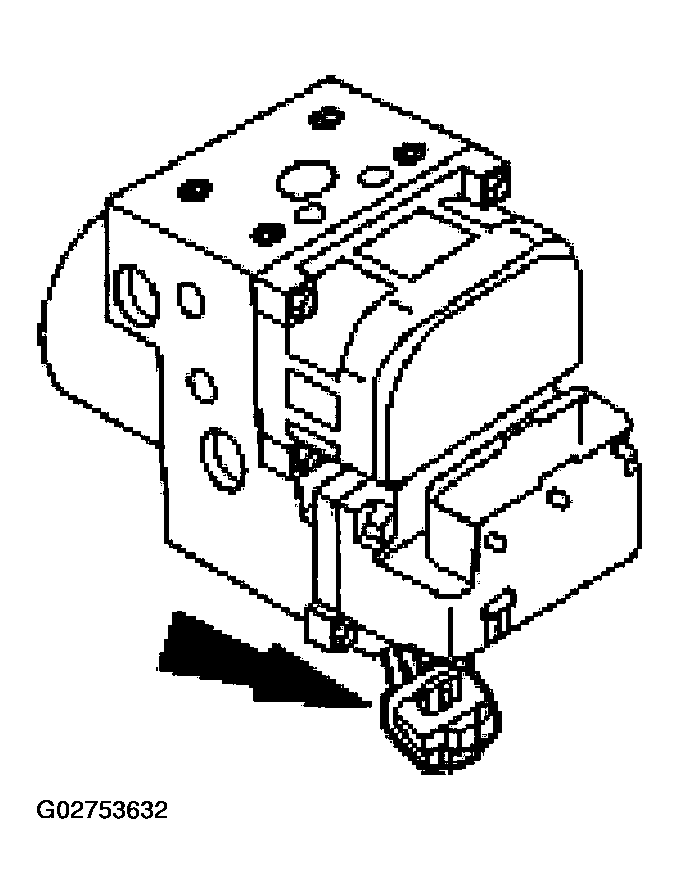

Fig 1: Identifying Brake System (ABS) Module Electrical Connectors
Courtesy of FORD MOTOR CO.

NOTE: Do not pry the module from the hydraulic control unit (HCU).

Fig 2: Removing ABS Module

Courtesy of FORD MOTOR CO.

Remove the ABS module.
- Remove the screws in the sequence shown.
- Remove the module.

NOTE: Be sure the ABS module-to-HCU gasket is clean and installed correctly.
