Pinpoint Test F: Poor Vehicle Tracking During Anti-Lock Function

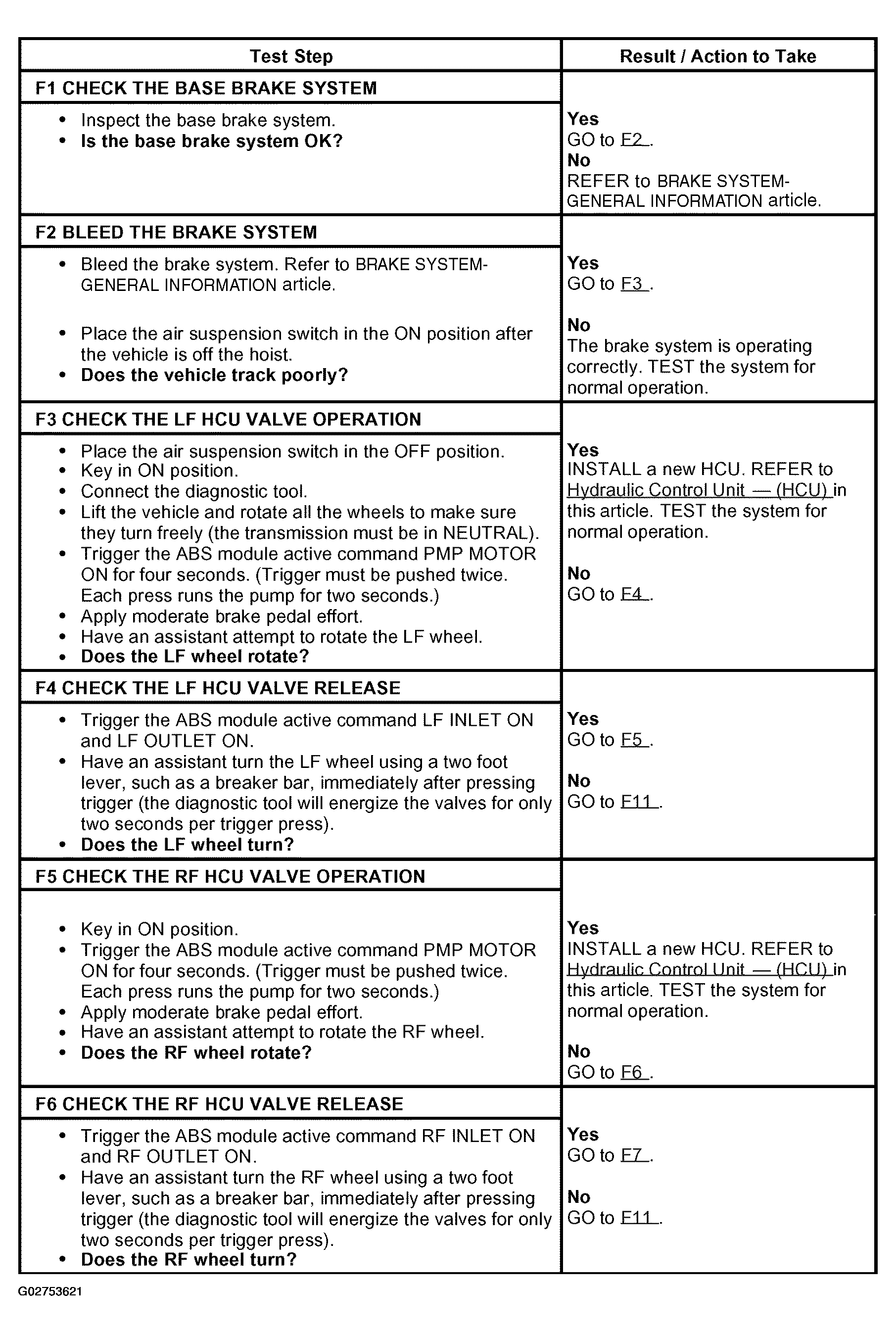

Fig 1: Pinpoint Test F: Poor Vehicle Tracking During Anti-Lock Function (F1 - F6)

Courtesy of FORD MOTOR CO.

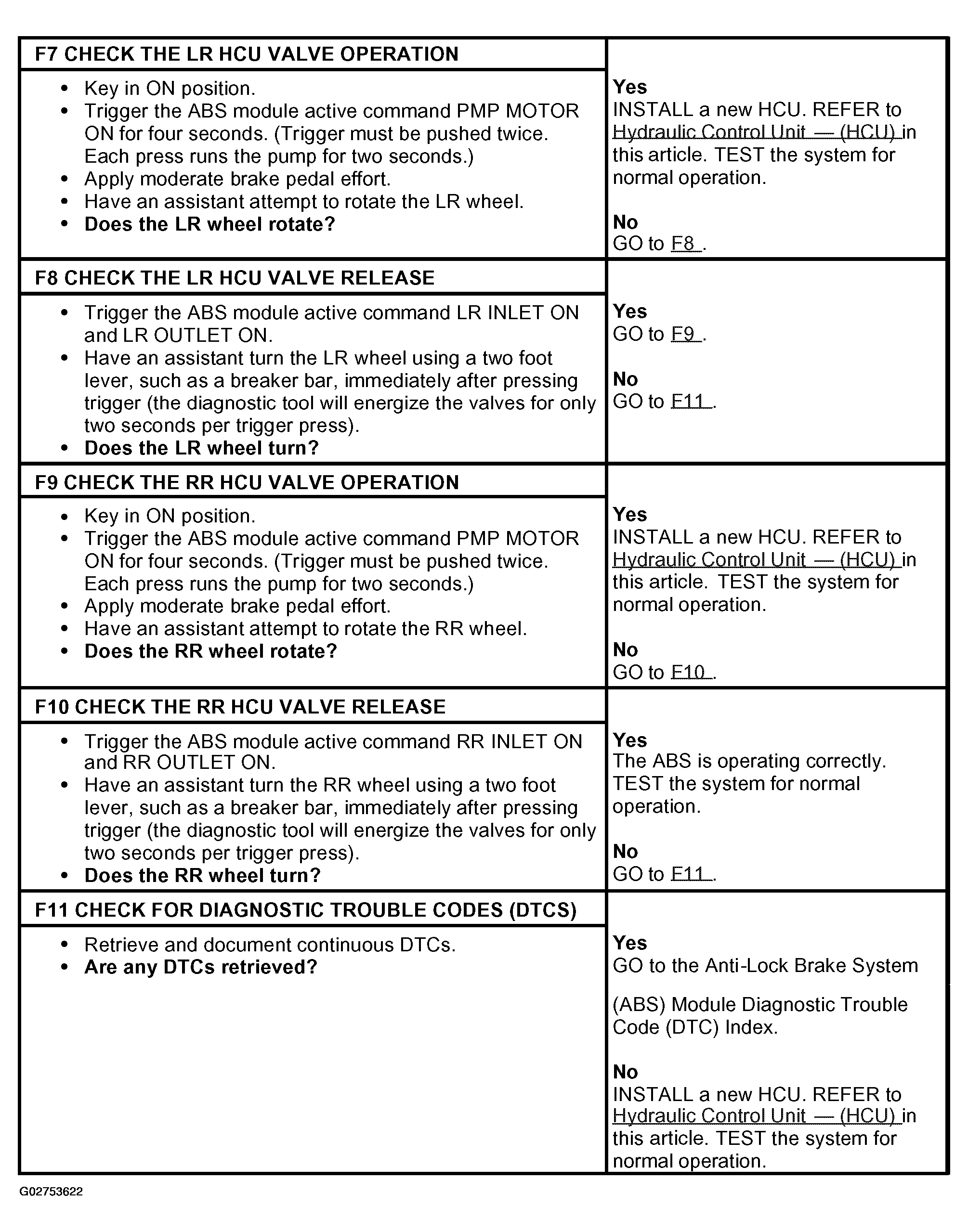

Fig 2: Pinpoint Test F: Poor Vehicle Tracking During Anti-Lock Function (F7 - F11)

Courtesy of FORD MOTOR CO.
