Removal and Installation

    NOTE: Left front door shown, all others similar.
    Fig 1: Locating Window Control Switch
    G02756246Courtesy of FORD MOTOR CO.
  1. Lift the front of the switch plate from the front door trim panel and position it aside.
  2. Disconnect the electrical connectors.

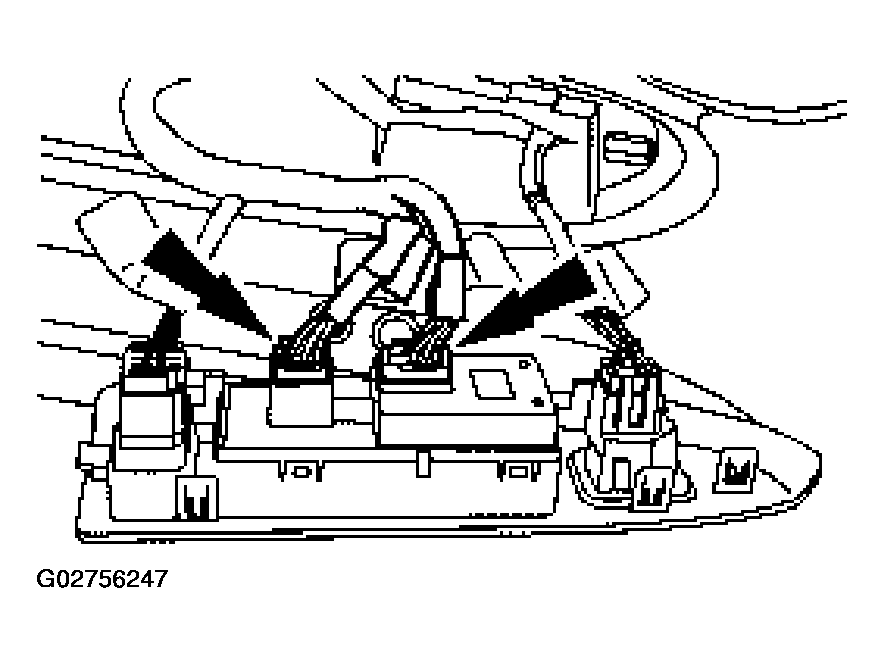

    Fig 2: Disconnecting Electrical Connectors
    G02756247Courtesy of FORD MOTOR CO.
  3. Remove the window control switch.
    • Release the four locking tabs.
    Fig 3: Releasing Locking Tabs
    G02756248Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
