Lumbar Control Switch: Removal

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with an SRS component is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Driver side shown, passenger side similar.

    Marauder

  1. Position the seat to access the fasteners.

    2. All vehicles

  2. Depower the SRS. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

    3. Marauder

  3. Remove the affected seat. For additional information, refer to FRONT SEAT .

    4. Crown Victoria/Grand Marquis

    NOTE: Take care in removing the power lumbar bezel, pry the side of bezel at tabs to remove.
    Fig 1: Removing Cover
    G02756054Courtesy of FORD MOTOR CO.
  4. Remove the cover.
  5. Disconnect the lumbar control switch electrical connector. Remove the lumbar control switch.
    Fig 2: Disconnecting Lumbar Control Switch Electrical Connector
    G02756055Courtesy of FORD MOTOR CO.

    6. Marauder

  6. Release the seat cushion cover J-clips to access the lumbar control switch.
  7. Disconnect the power lumbar switch electrical connector.
    Fig 3: Disconnecting Power Lumbar Switch Electrical Connector
    G02756056Courtesy of FORD MOTOR CO.

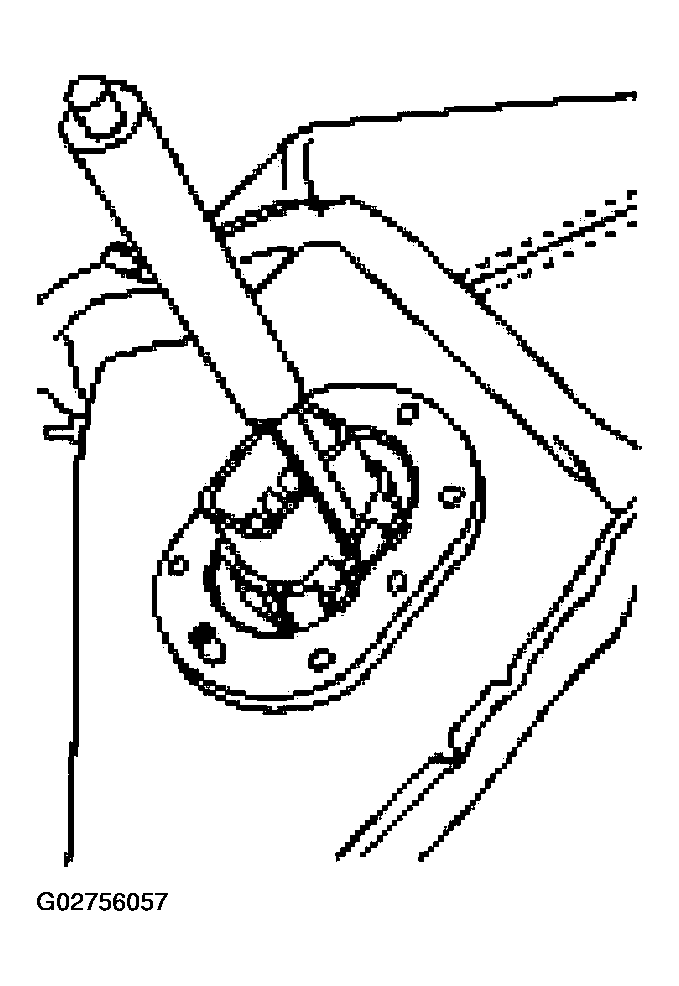

  8. Insert a screwdriver between the bezel and the power lumbar switch, pry the tab and push the switch through the bezel.
    Fig 4: Inserting Screwdriver Between Bezel And Power Lumbar Switch
    G02756057Courtesy of FORD MOTOR CO.

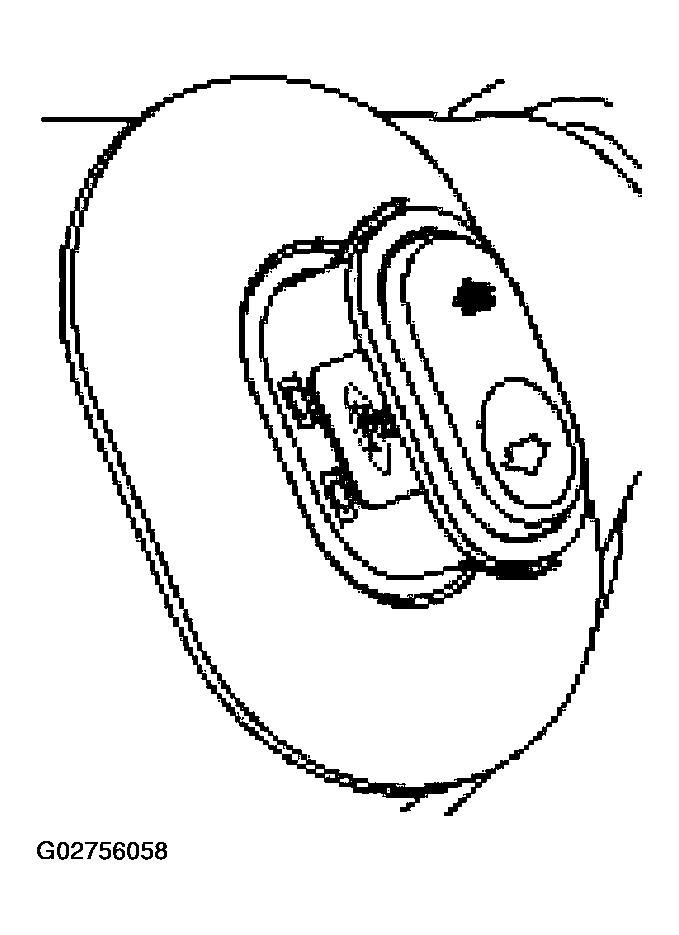

  9. Remove the power lumbar switch.
Fig 5: Removing Power Lumbar Switch
G02756058Courtesy of FORD MOTOR CO.
