Pinpoint Test M: The Remote Keyless Entry Transmitter Is Out Of Synchronization

NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

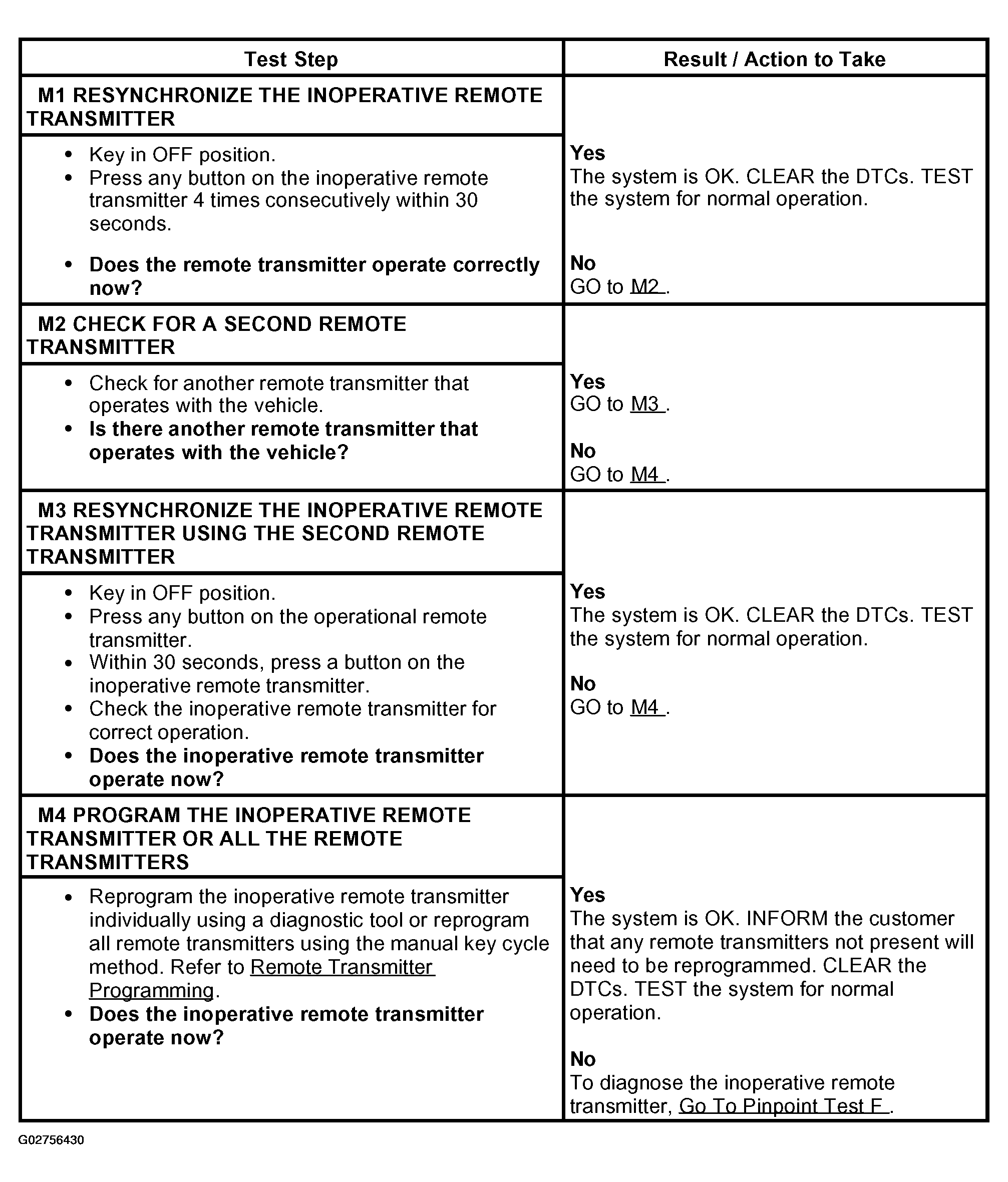

Fig 1: Pinpoint Test M: Remote Keyless Entry Transmitter Is Out Of Synchronization
G02756430Courtesy of FORD MOTOR CO.
