Pinpoint Test E: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

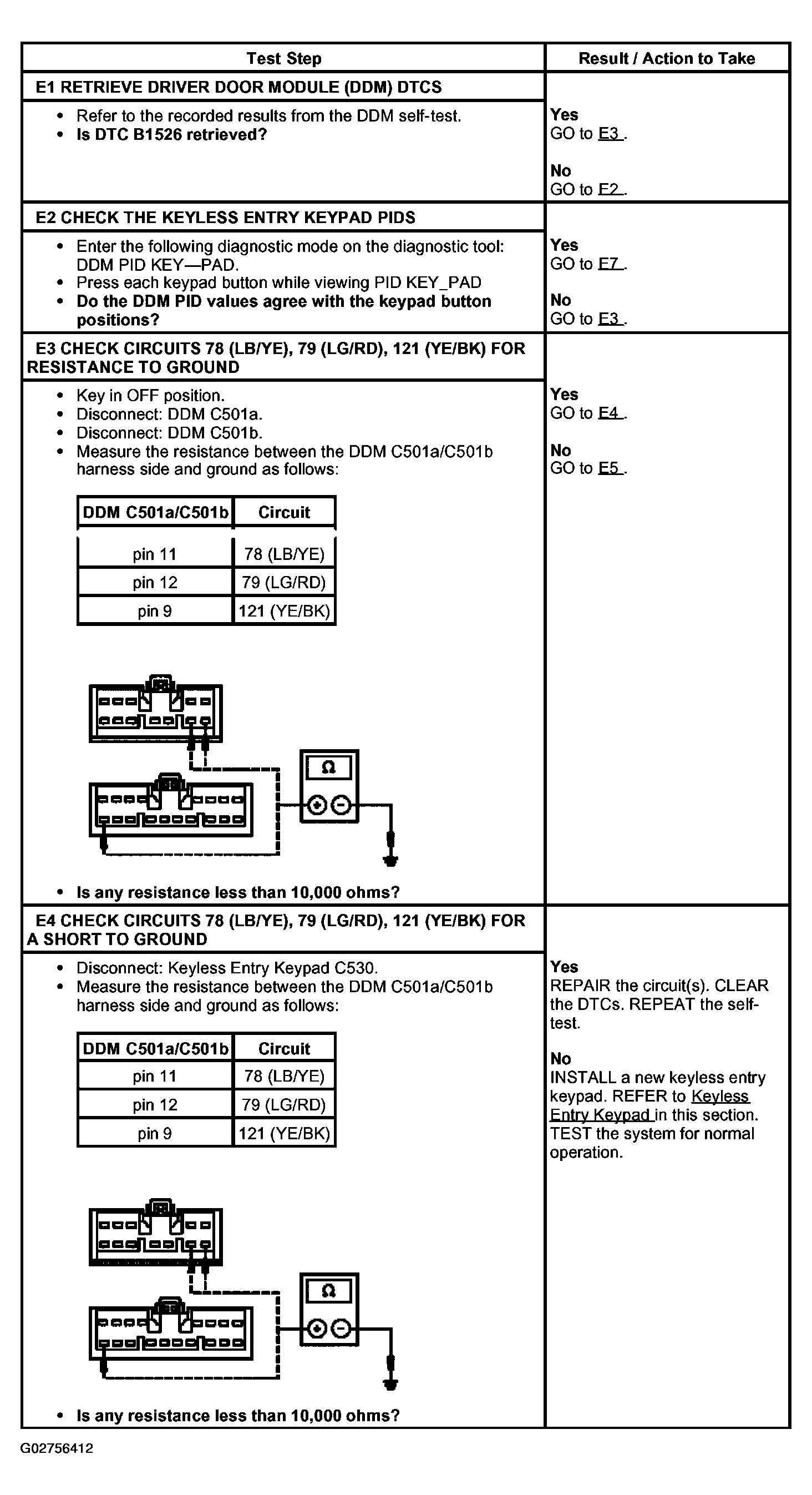

Fig 1: Pinpoint Test E: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (Step E1-E4)
G02756412Courtesy of FORD MOTOR CO.

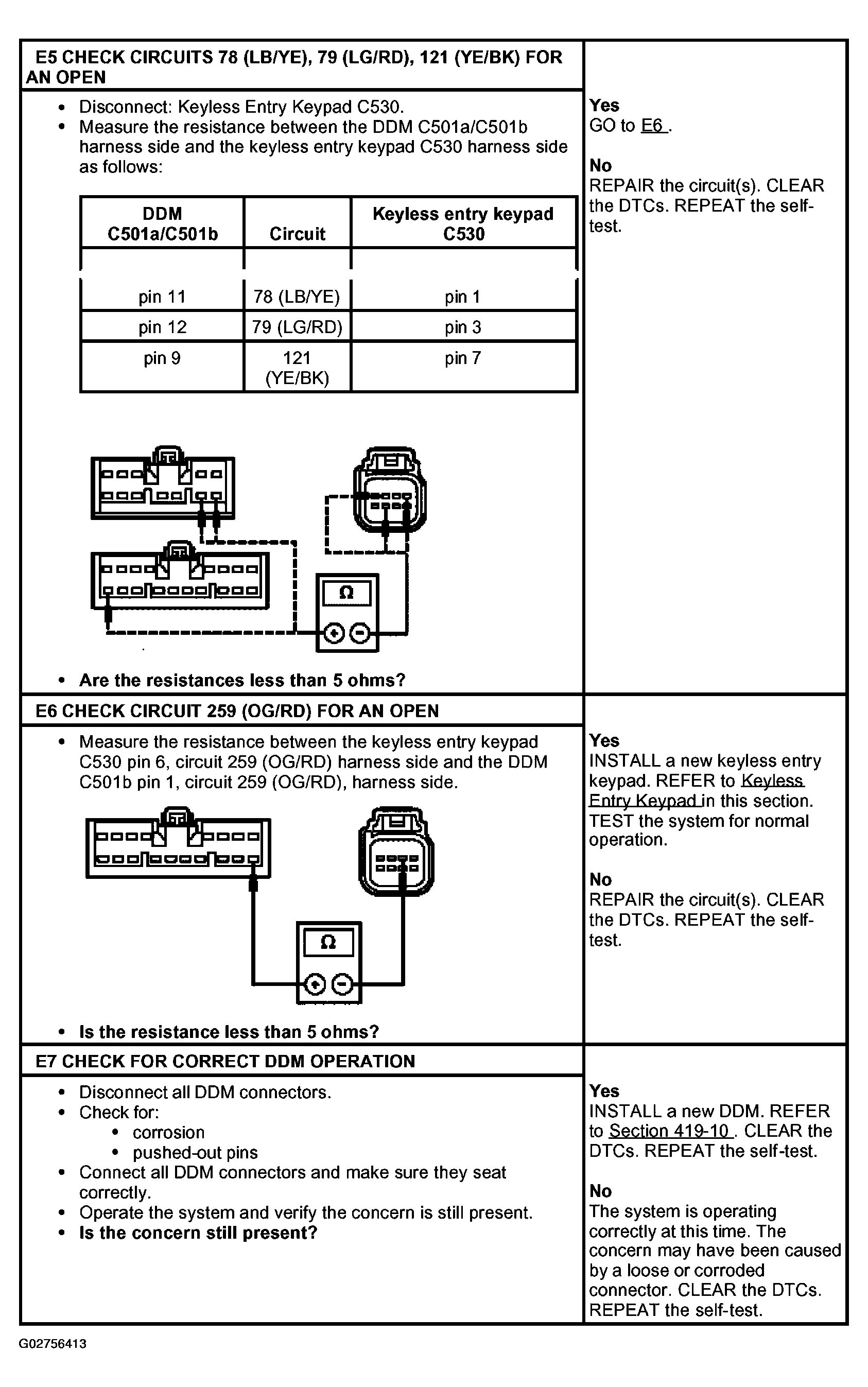

Fig 2: Pinpoint Test E: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (Step E5-E7)
G02756413Courtesy of FORD MOTOR CO.
