Home >> Mercury >> 2004 >> Marauder >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Diagnosis And Testing >> External Controls >> Pinpoint Tests >> Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship

Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship

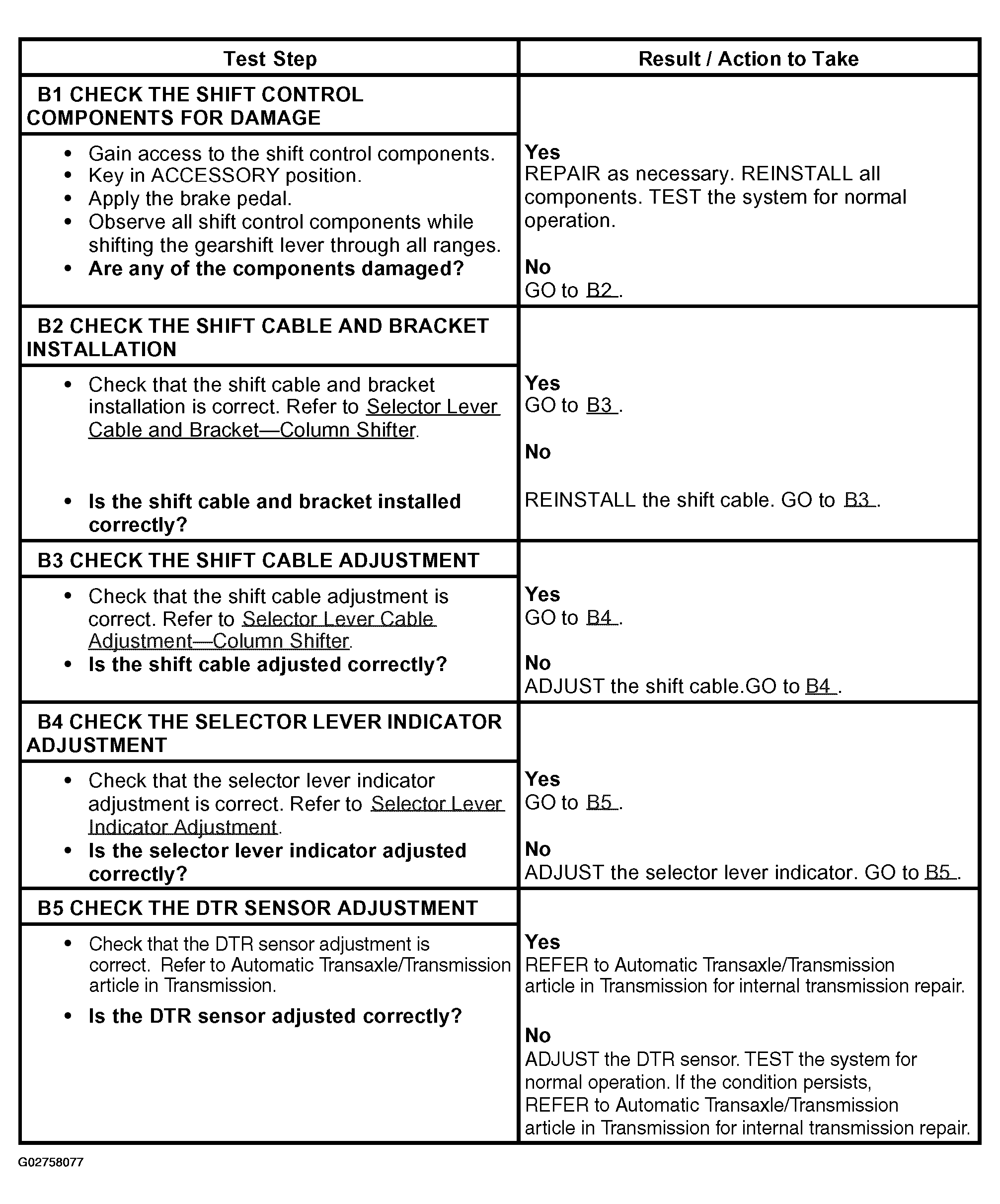

Fig 1: Pinpoint Test B Chart - Shift Control Is Out Of Correct Gear Relationship (B1-B5)

G02758077

Courtesy of FORD MOTOR CO.
