Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly - Column Shift

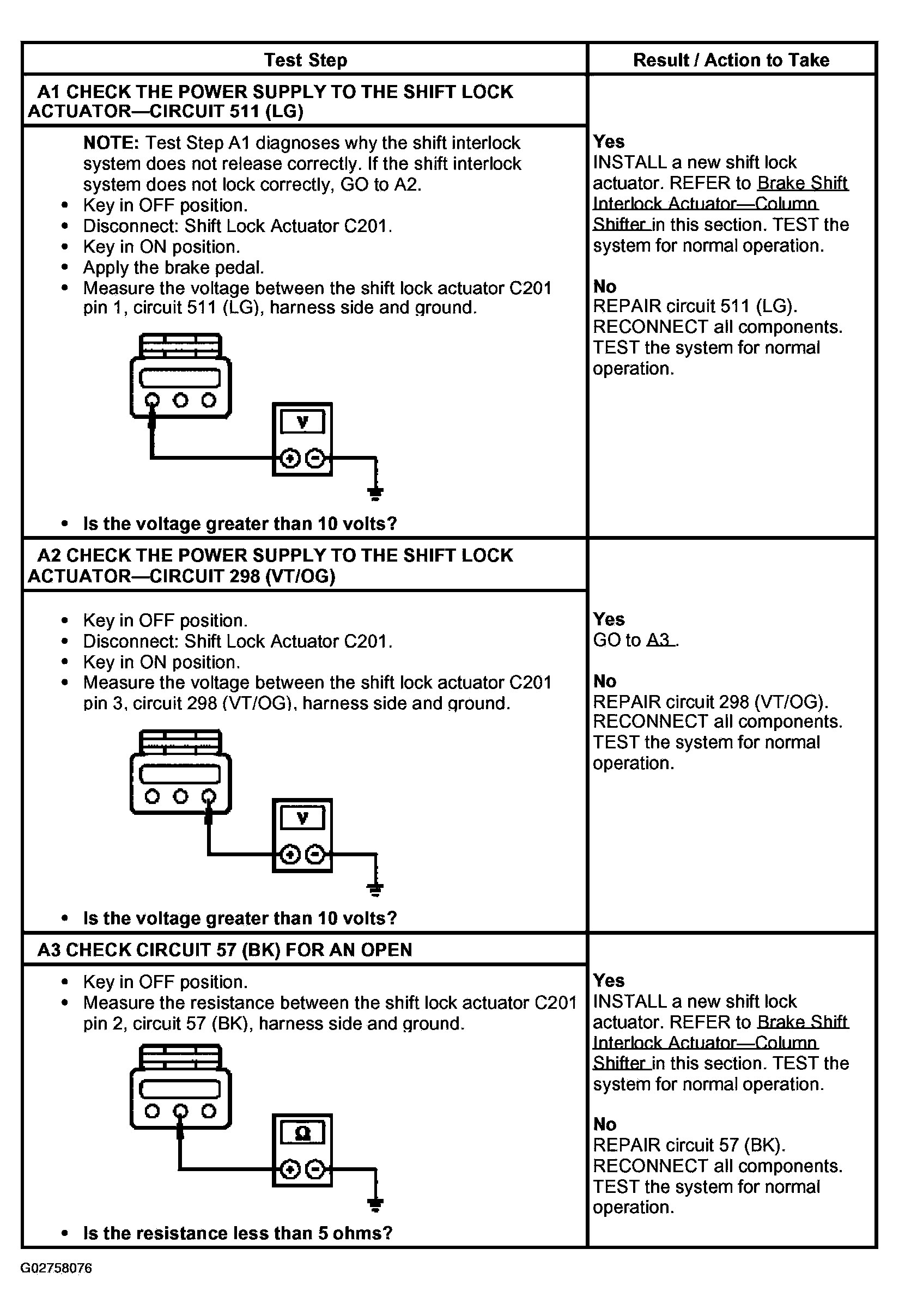

Fig 1: Pinpoint Test A Chart - Shift Interlock System Does Not Release/Lock Correctly - Column Shift (A1-A3)
G02758076Courtesy of FORD MOTOR CO.
