Pinpoint Test F: Steering System Drift/Pull/Wander

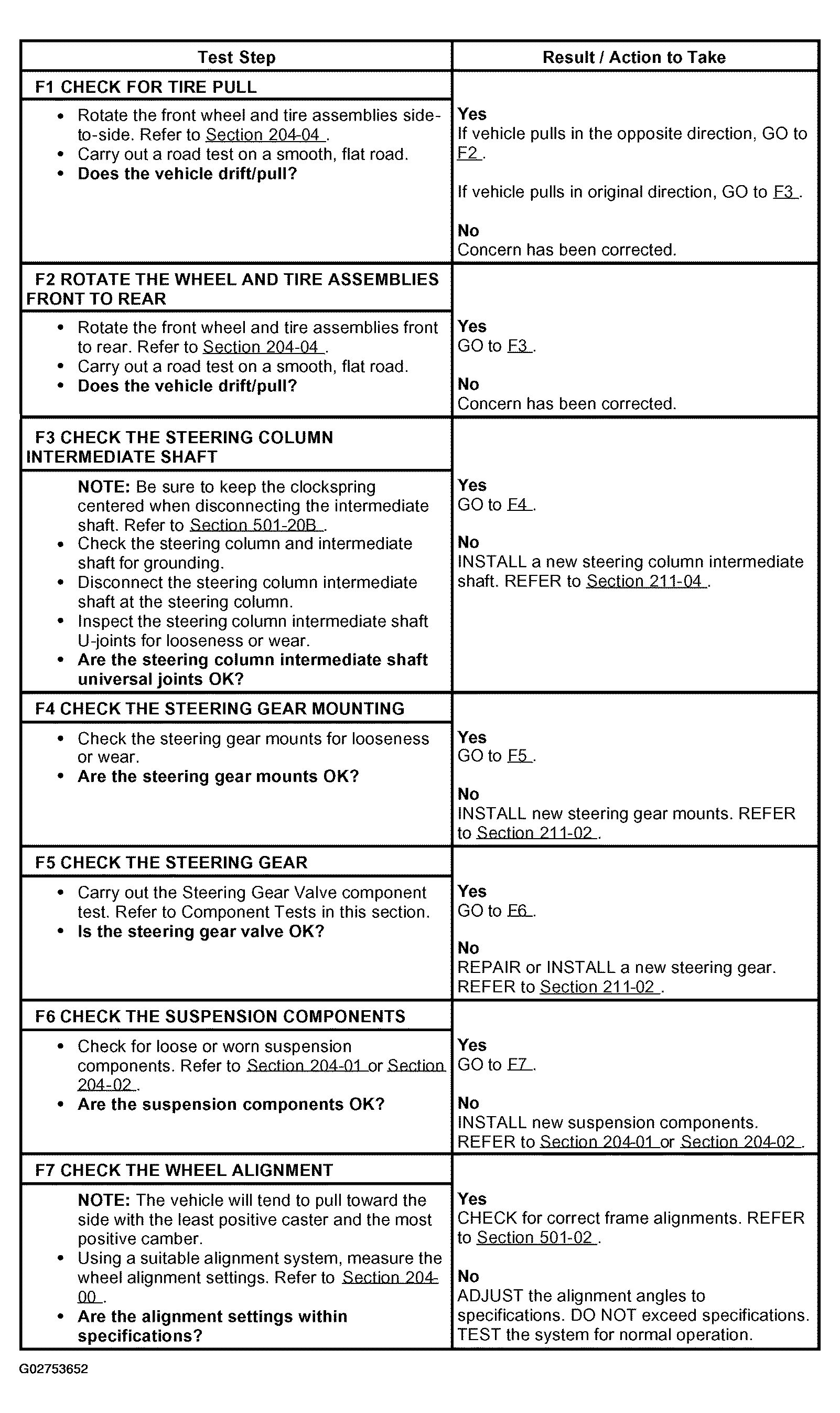

Fig 1: Pinpoint Test F: Steering System Drift/Pull/Wander (Steps F1-F7)

G02753652

Courtesy of FORD MOTOR CO.
