Home >> Mercury >> 2004 >> Marauder >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> HVAC Control System - General Information >> Diagnosis And Testing >> Climate Control System >> Pinpoint Tests >> Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module

Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module

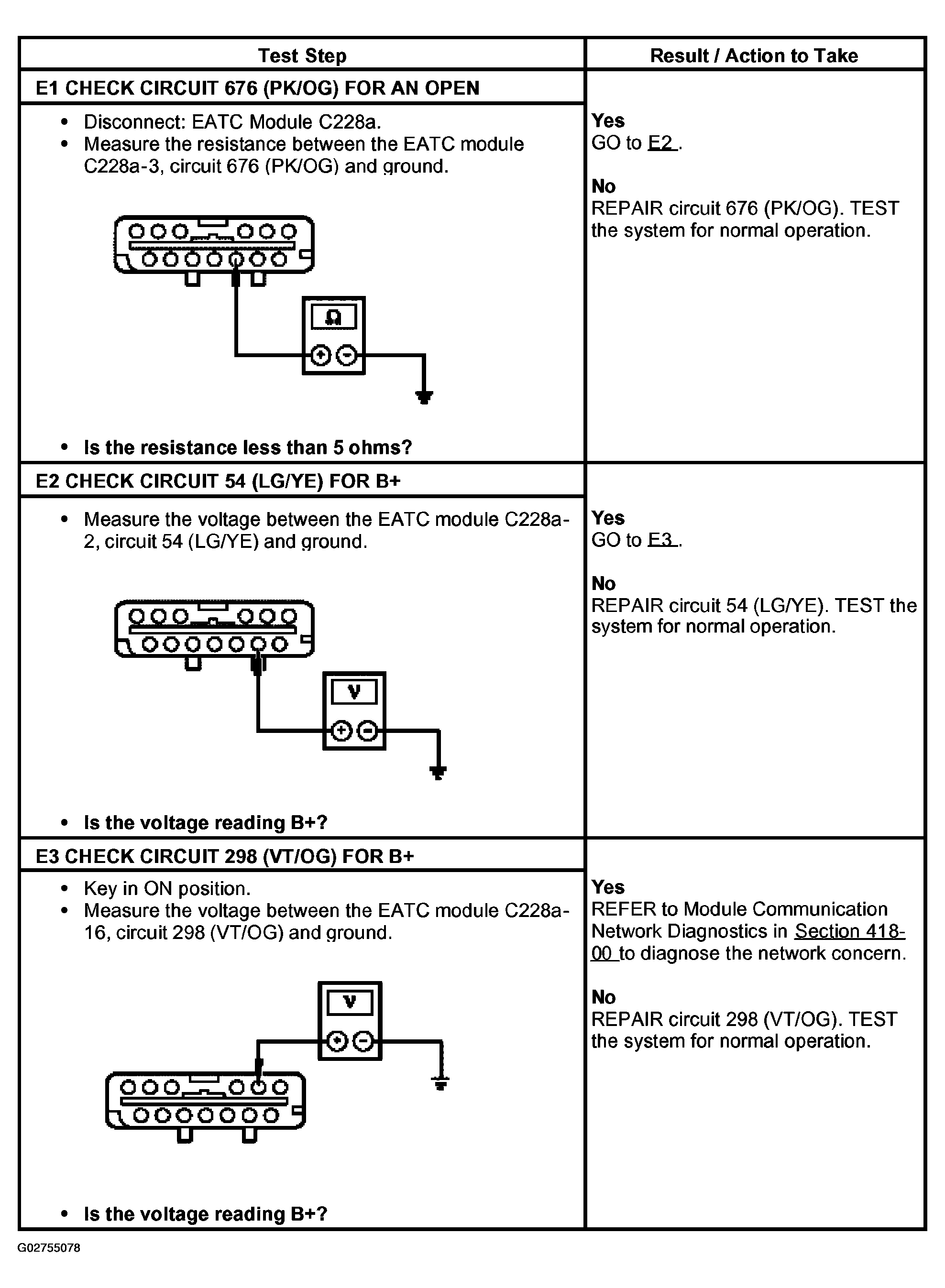

Fig 1: Pinpoint Test E: No Communication With Electronic Automatic Temperature Control (EATC) Module (Step E1-E3)
G02755078Courtesy of FORD MOTOR CO.
