Pinpoint Test P: All The Locks Operate From One Switch Only

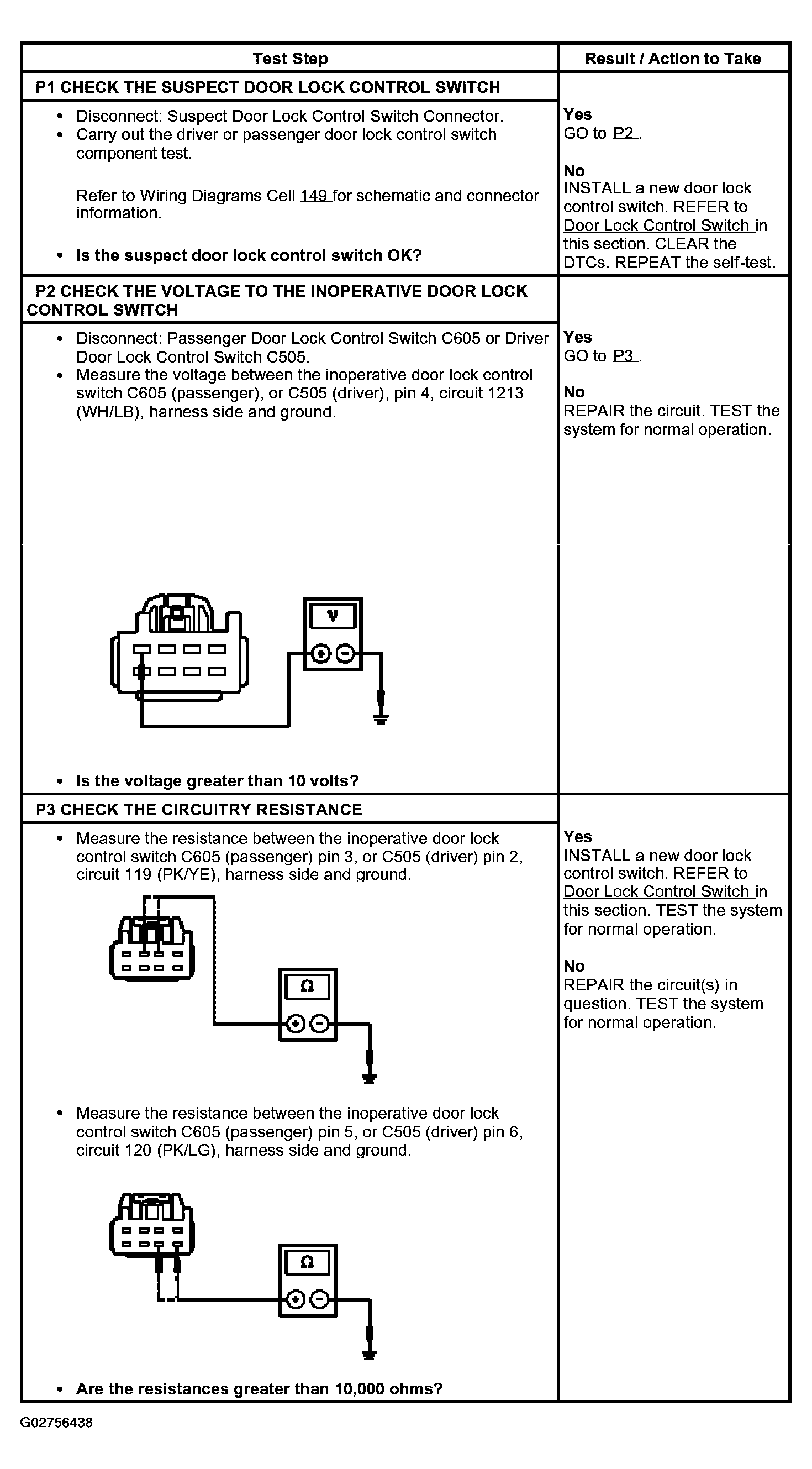

Fig 1: Pinpoint Test P: All Locks Operate From One Switch Only

G02756438

Courtesy of FORD MOTOR CO.
