Pinpoint Test C: No Communication With The Lighting Control Module

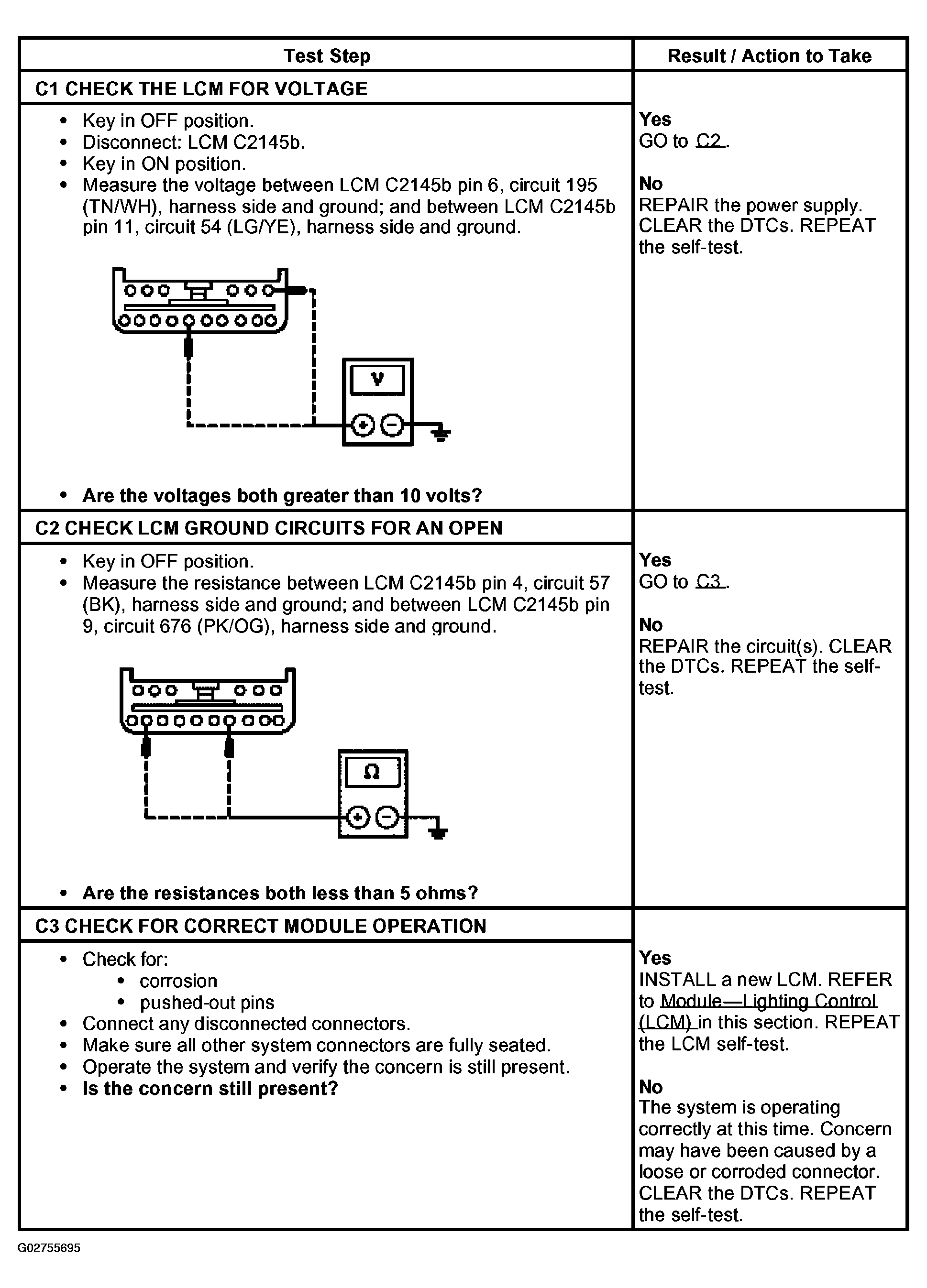

Fig 1: Pinpoint Test C: No Communication With Lighting Control Module

G02755695

Courtesy of FORD MOTOR CO.
