Pinpoint Test B: No Communication With The Driver Door Module

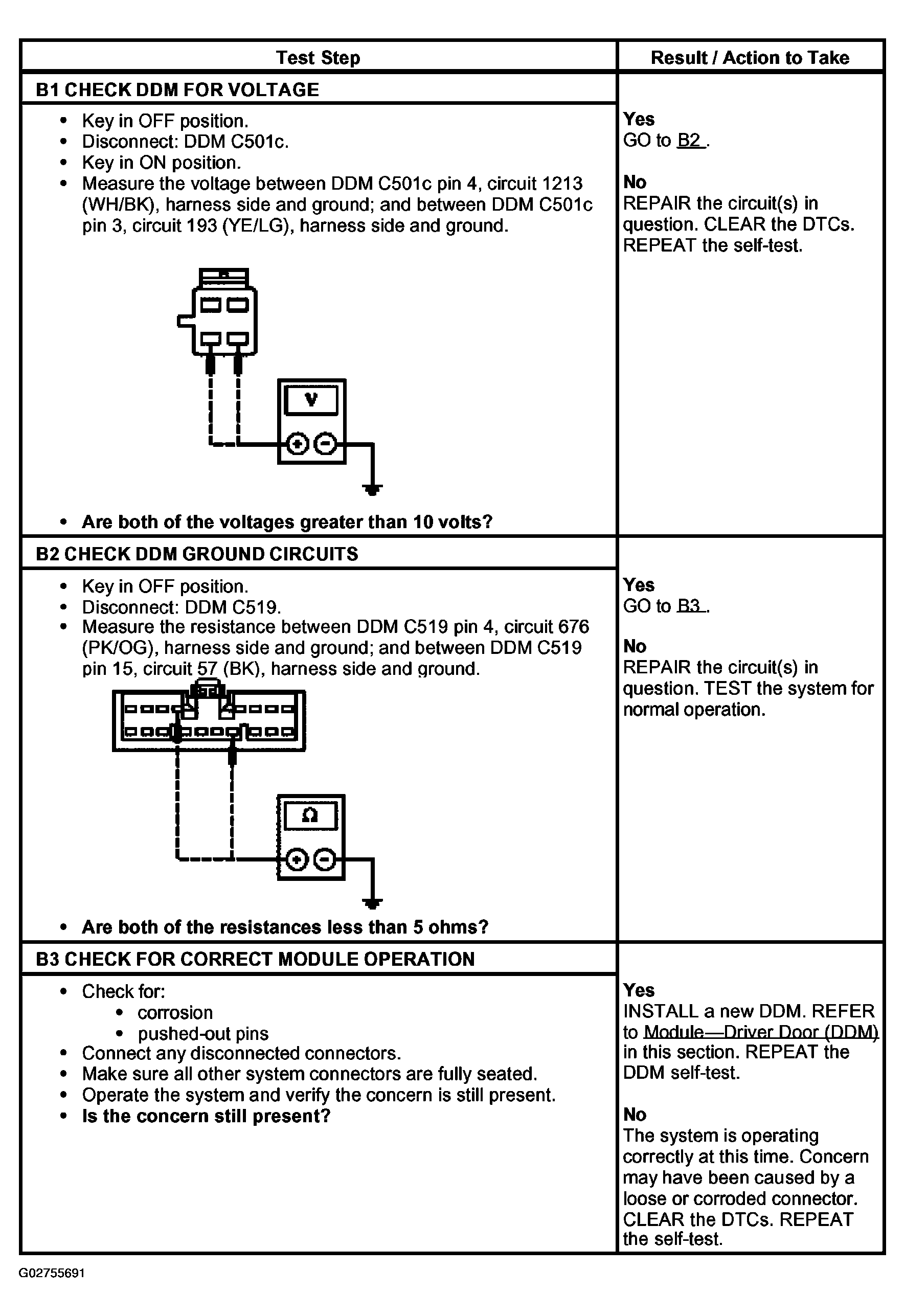

Fig 1: Pinpoint Test B Communication With Driver Door Module

G02755691

Courtesy of FORD MOTOR CO.
