Pinpoint Test O: The Remote Transmitter Has Poor Range Performance

NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

NOTE: Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

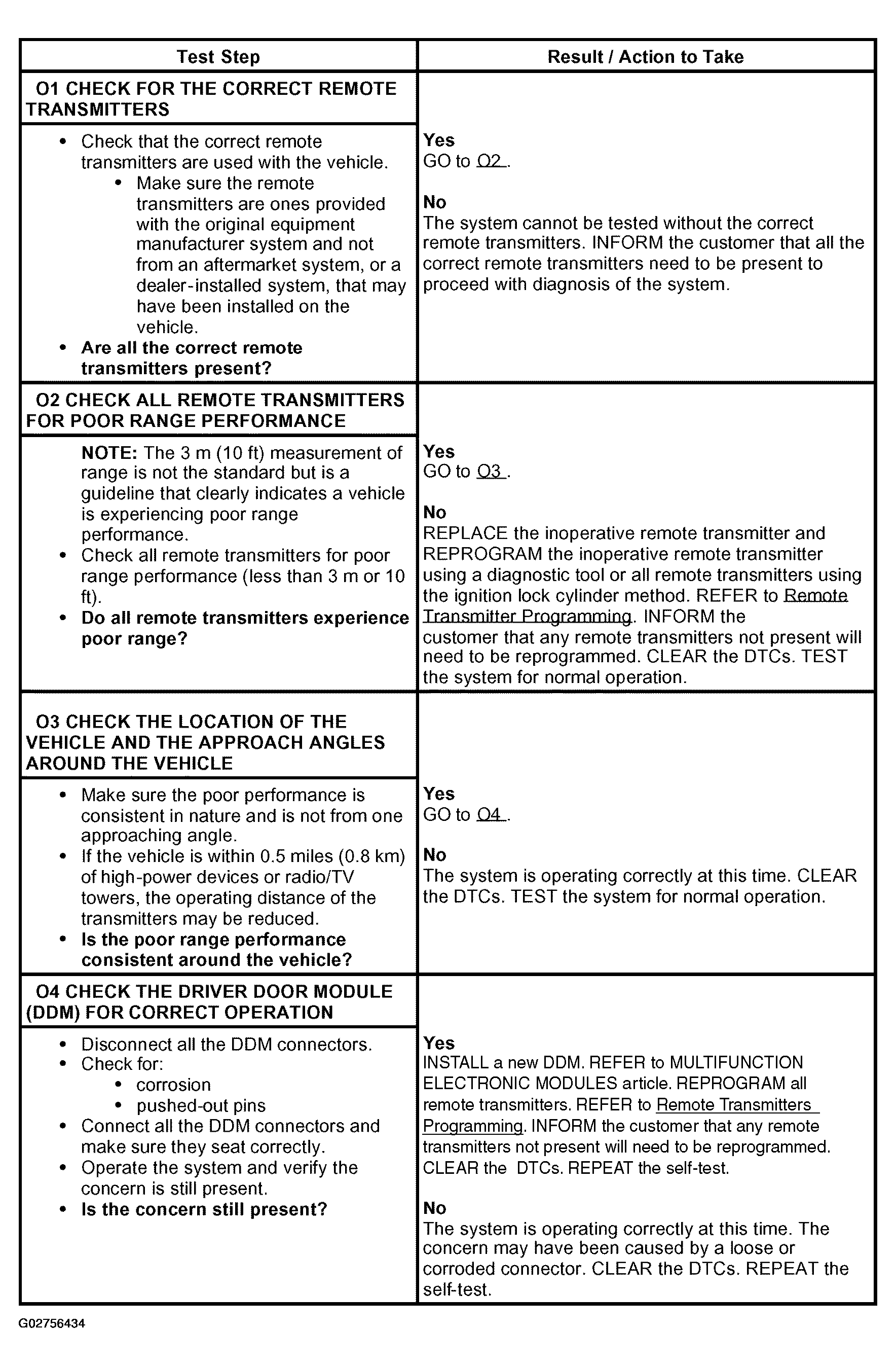

Fig 1: Pinpoint Test O: Remote Transmitter Has Poor Range Performance

Courtesy of FORD MOTOR CO.
