Repair and Diagnosis
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing
>>
Component Testing
>>
Multifunction Switch, Turn Portion
Multifunction Switch, Turn Portion

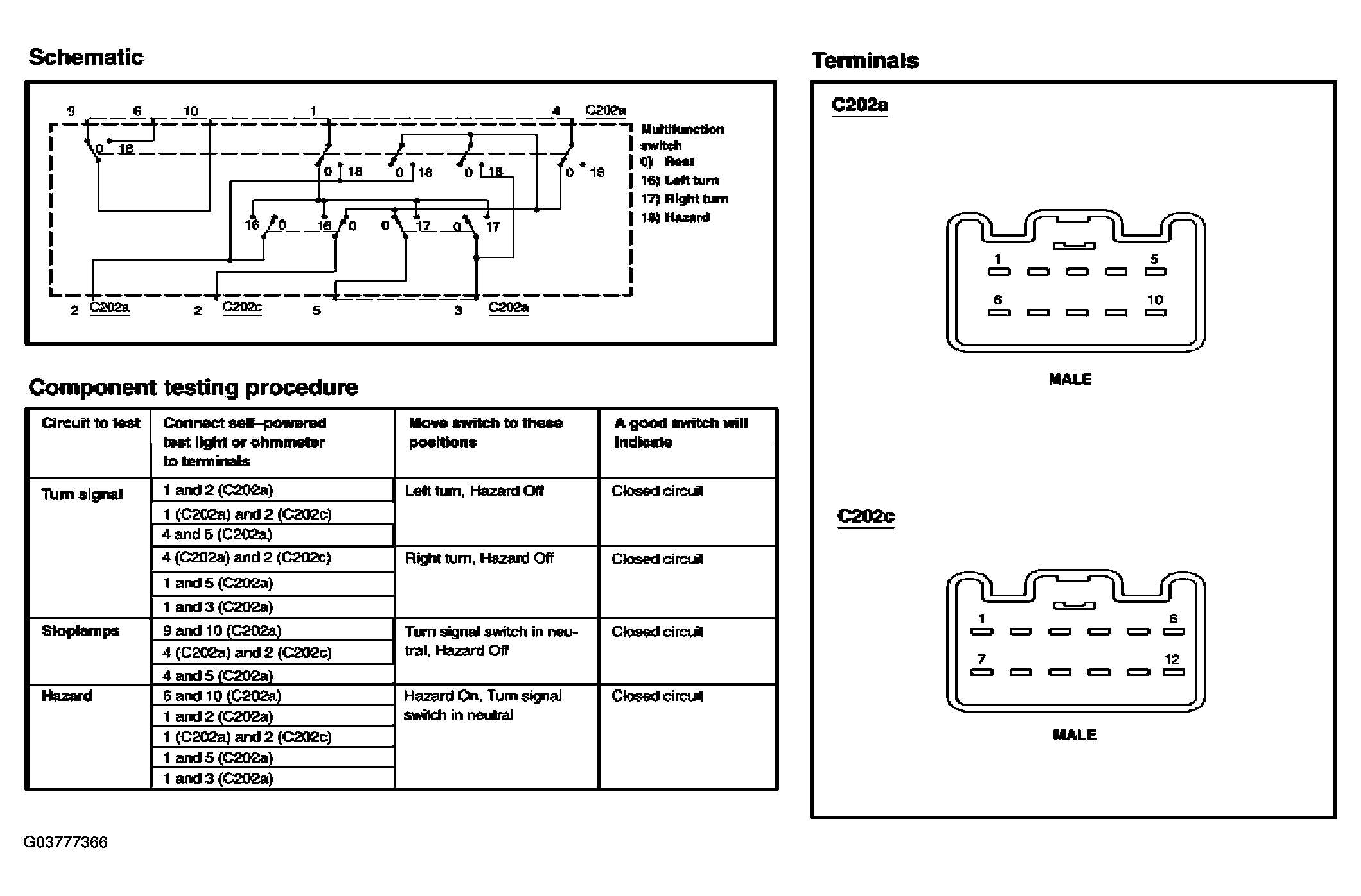

Fig 1: Testing Multifunction Switch, Turn Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
