Transaxle Support Insulator: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the rear engine support bracket and bolts.

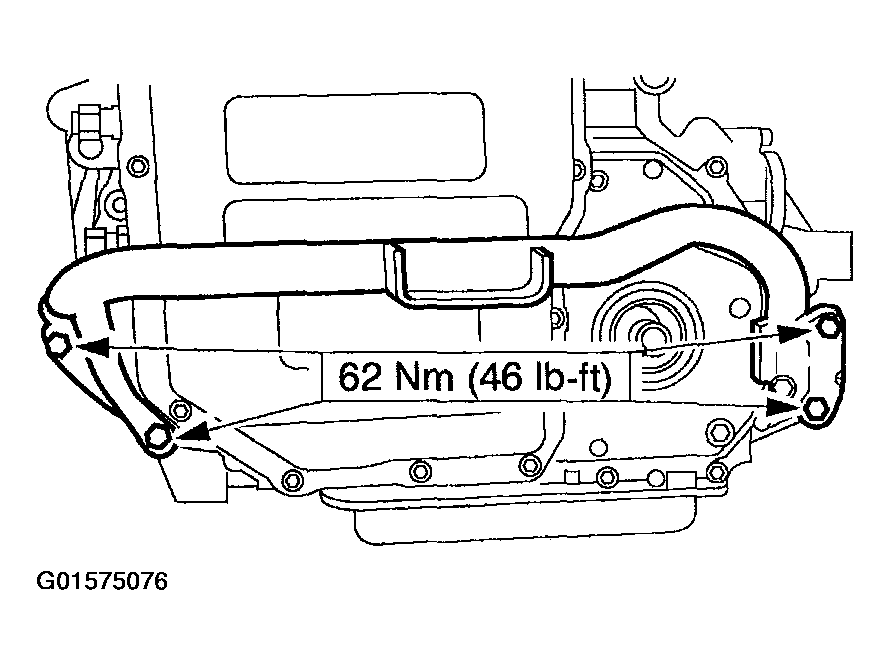

    Fig 1: Identifying Tightening Torque Of Rear Engine Support Bracket Bolts
    G01575076Courtesy of FORD MOTOR CO.
  2. Install the engine and transaxle support insulator and loosely install the bolts.

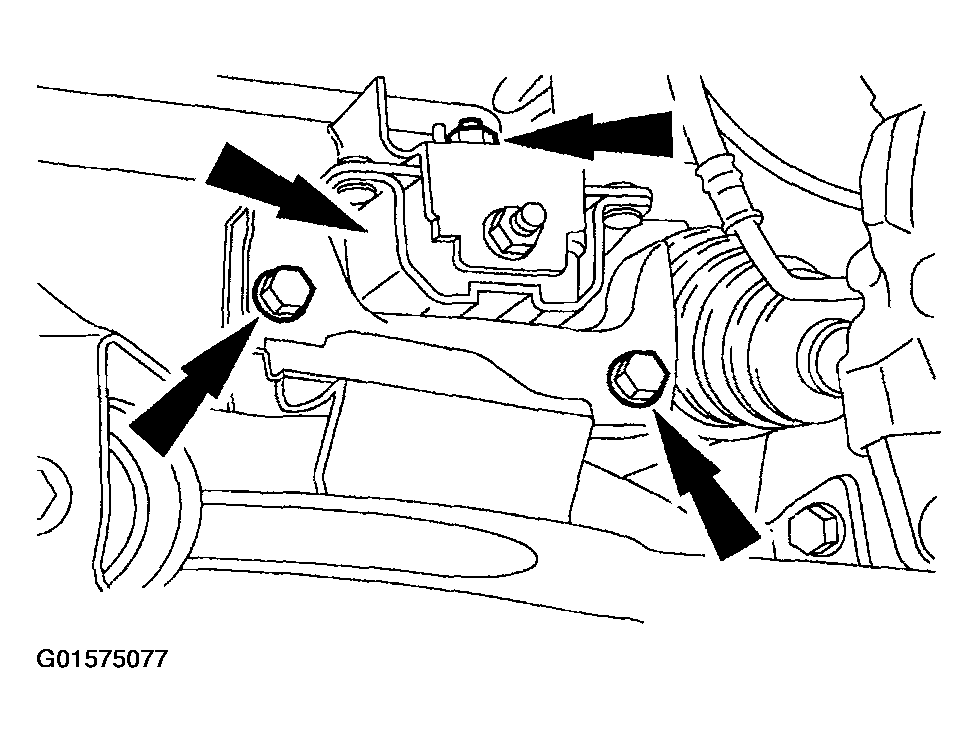

    Fig 2: Identifying Transaxle Support Insulator
    G01575077Courtesy of FORD MOTOR CO.
  3. Lower the transaxle and tighten the bolts and nut.
    1. Position mount.
    2. Tighten the nut.
    3. Tighten the bolts and nuts.
      Fig 3: Identifying Tightening Torque Of Transaxle Support Insulator Bolt And Nut
      G01575078Courtesy of FORD MOTOR CO.
  4. Remove the high lift transmission jack.
  5. Install the LH wheel and tire.
