Removal And Installation: Notes

NOTE: The 4x4 vehicle is shown in this procedure, the 4x2 vehicle is similar.
  1. With the vehicle in PARK, position on a hoist.
  2. Remove the components in the order indicated in the following illustration and table. To remove individual components, carry out the following steps.

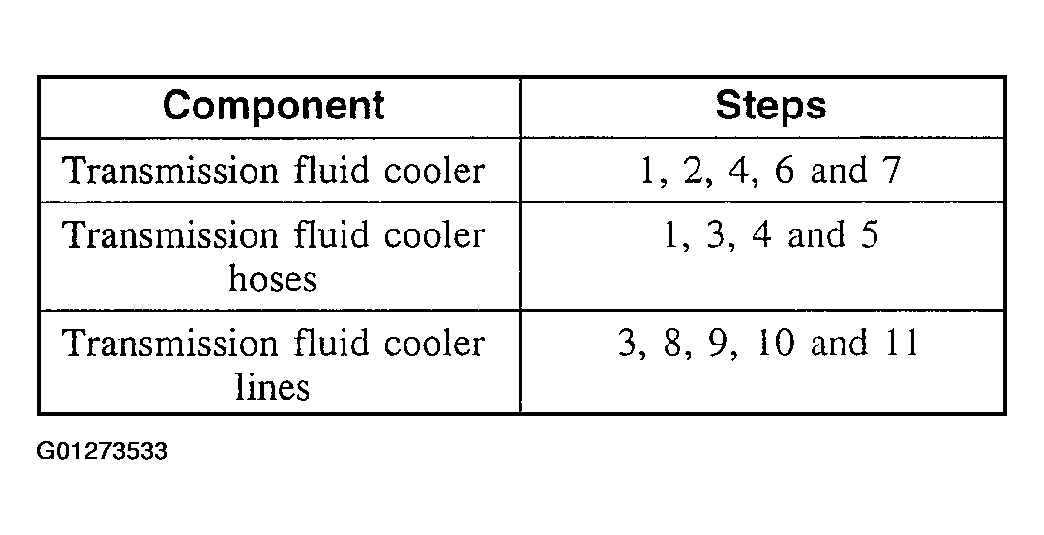

    Fig 1: Component Removal Reference Table
    G01273533Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

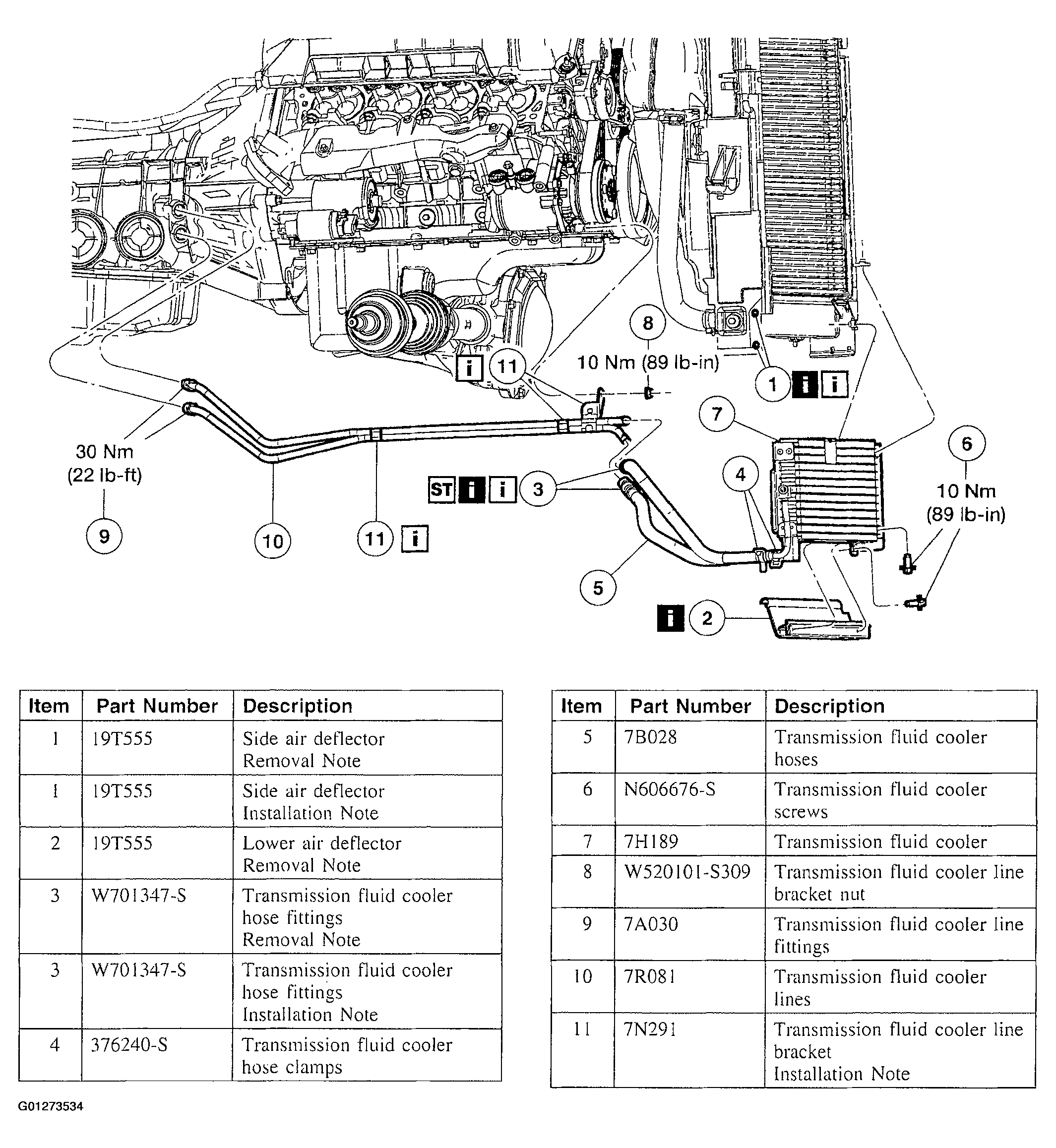

    Fig 2: Identifying Transmission Fluid Cooler Components
    G01273534Courtesy of FORD MOTOR CO.
