Removal And Installation: Notes

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.
  1. With the vehicle in PARK, position on a hoist.
  2. Remove the components in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

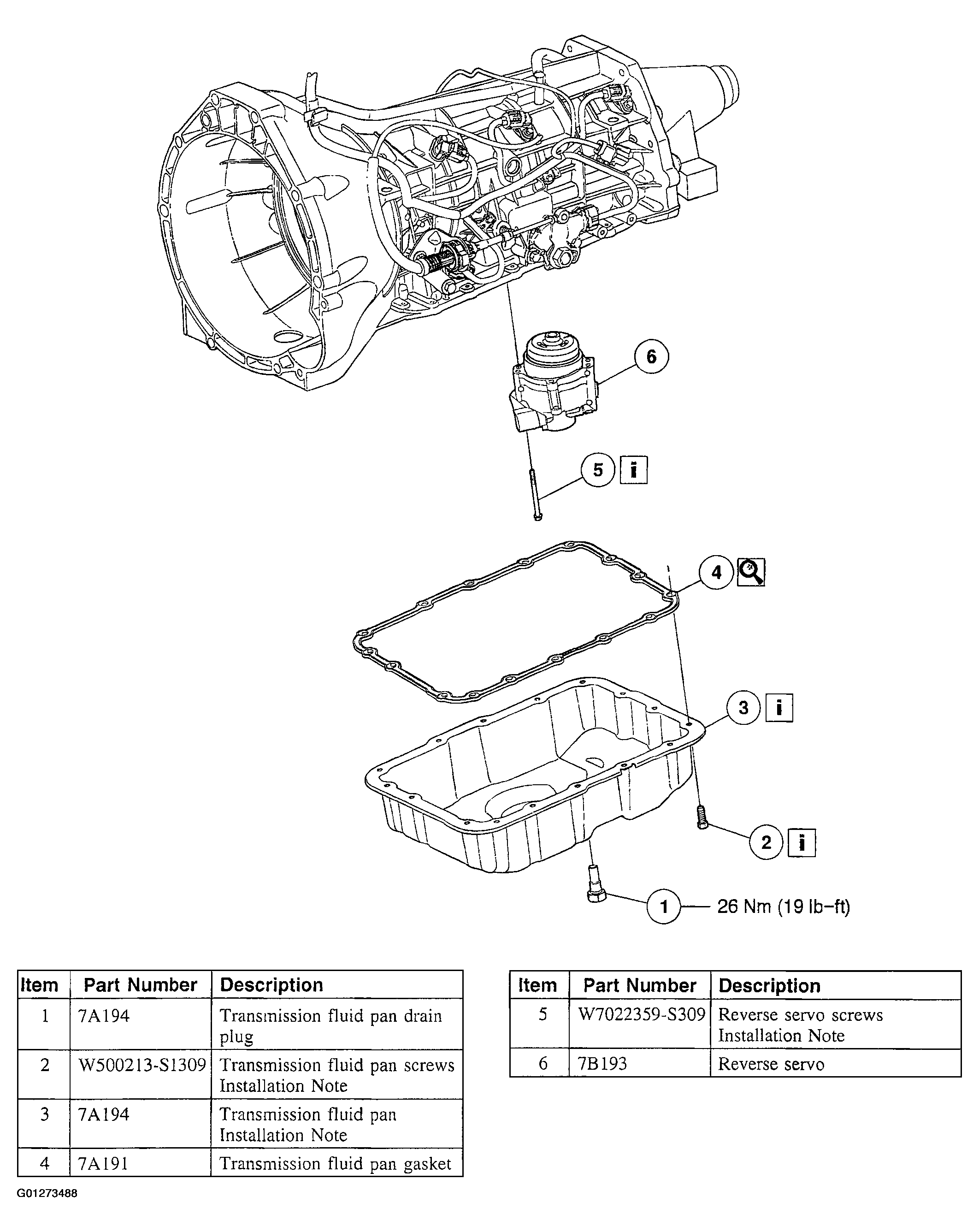

    Fig 1: Identifying Reverse Servo Assembly Components
    G01273488Courtesy of FORD MOTOR CO.
  4. Partially fill the transmission. For additional information, refer to TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG .
