Item 13: Extension Housing Installation Note

    CAUTION: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.

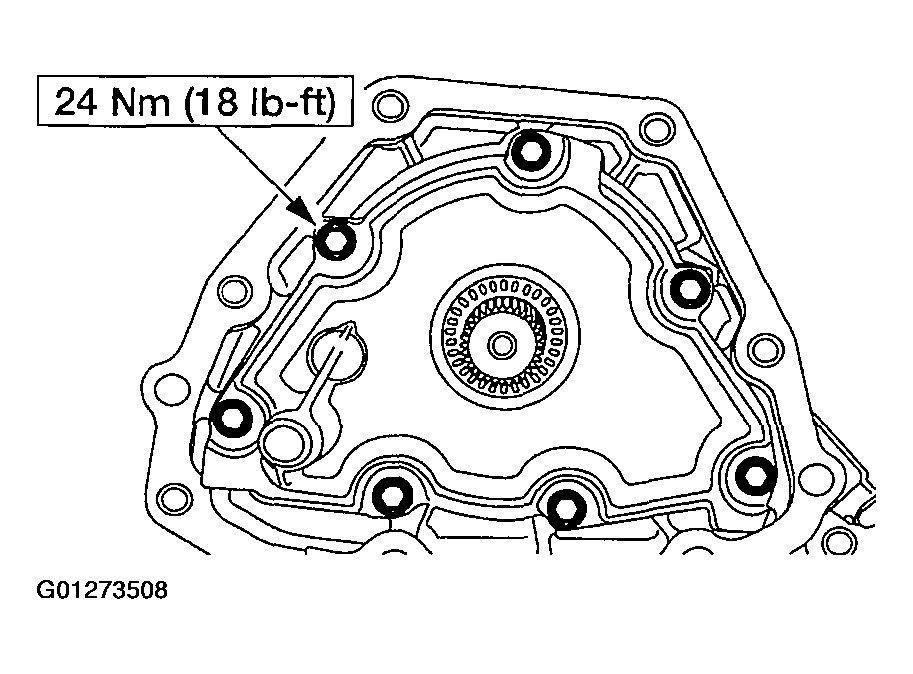

    Fig 1: Installing 4X4 Extension Housing
    G01273508Courtesy of FORD MOTOR CO.
  1. Install the 4x4 extension housing.
    2. CAUTION: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.

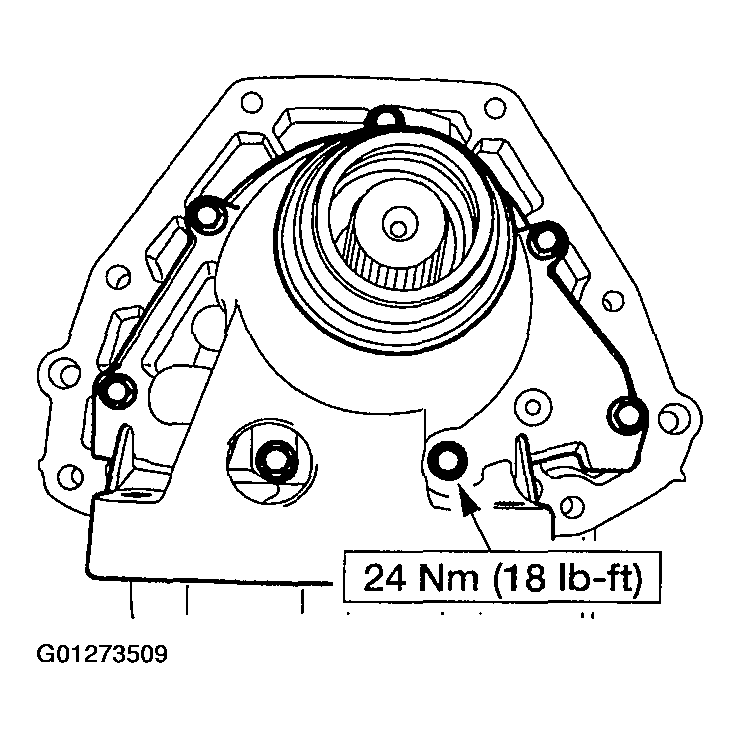

    Fig 2: Installing 4X2 Extension Housing
    G01273509Courtesy of FORD MOTOR CO.
  2. Install the 4x2 extension housing.
