Pinpoint Test H: Shift Control is Out of Correct Gear Relationship: Testing

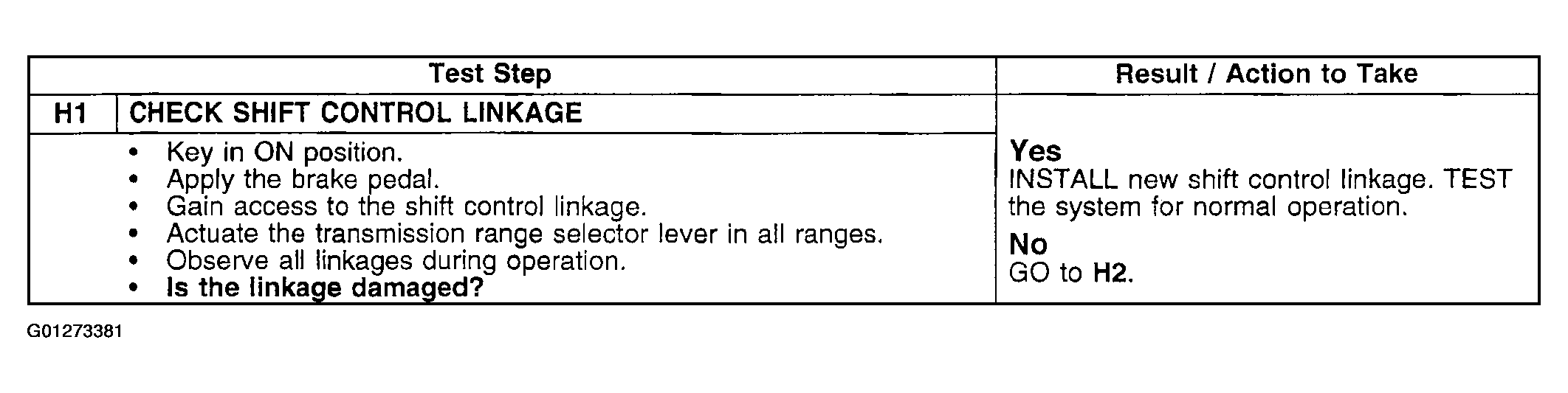

Fig 1: Pinpoint Test H: Shift Control Is Out Of Correct Gear Relationship (1 Of 2)
G01273381Courtesy of FORD MOTOR CO.

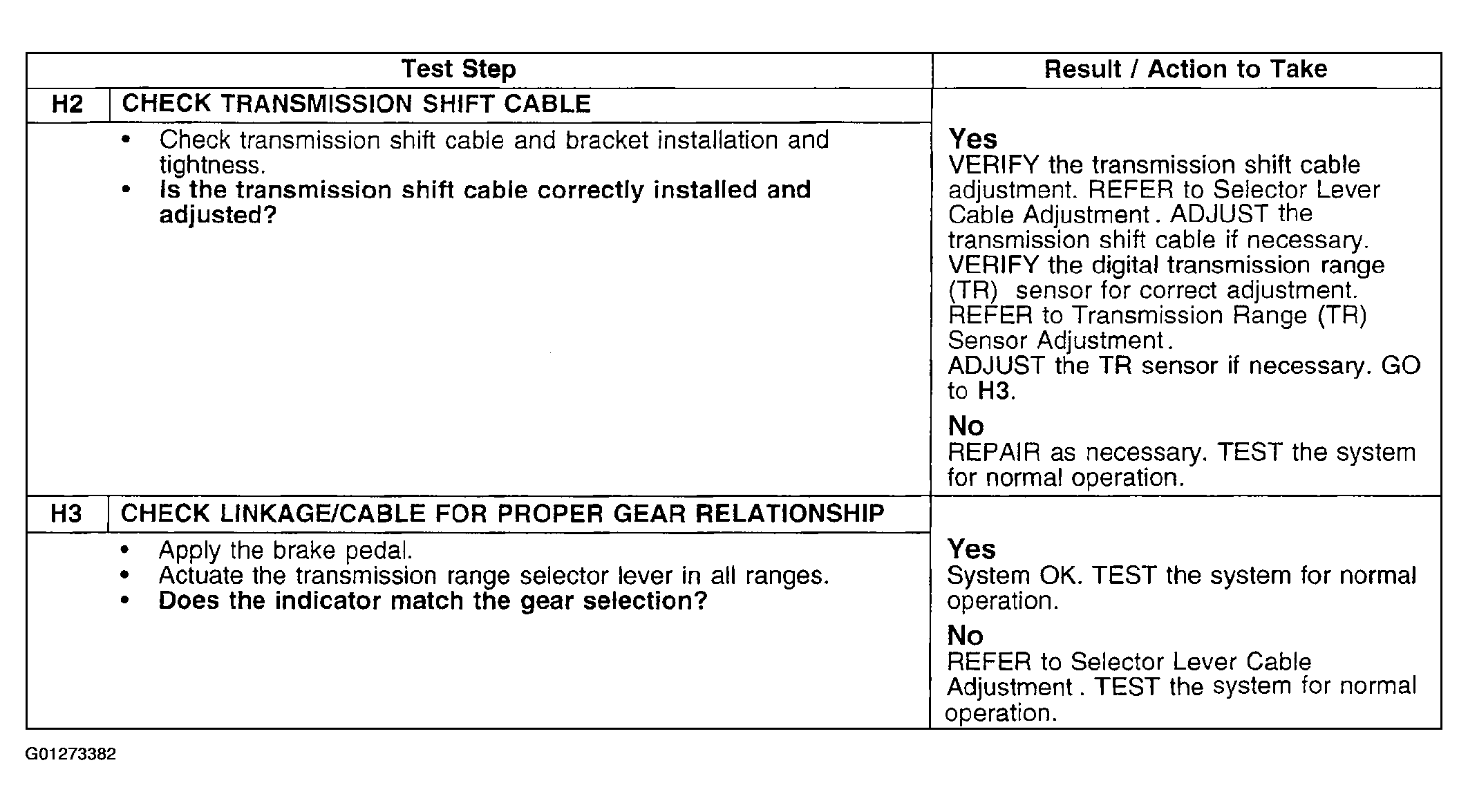

Fig 2: Pinpoint Test H: Shift Control Is Out Of Correct Gear Relationship (2 Of 2)
G01273382Courtesy of FORD MOTOR CO.
