Removal and Installation: Notes

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .
  2. Remove the components in the order indicated in the following illustration and table.

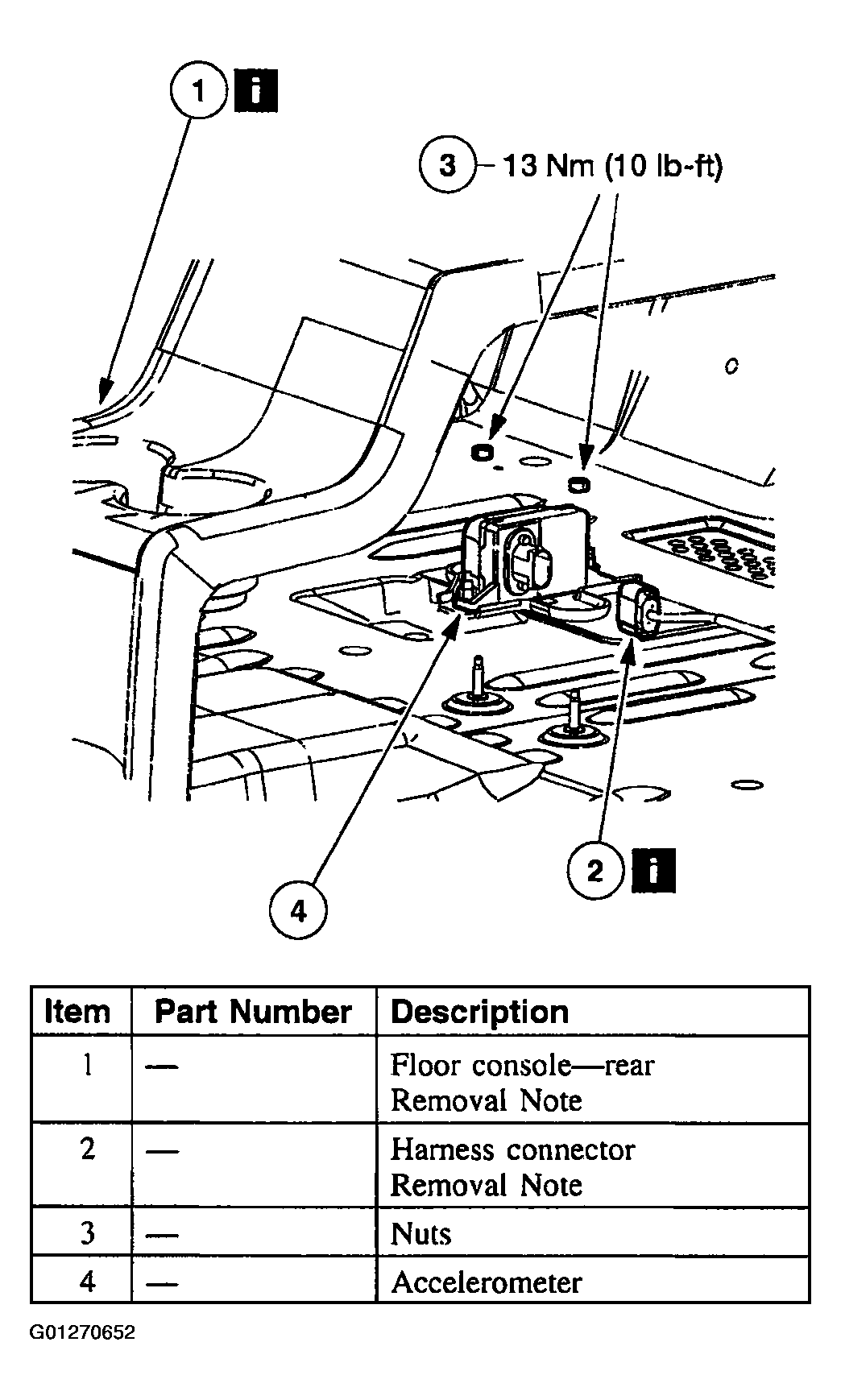

    Fig 1: Identifying Accelerometer Components In Order Of Removal
    G01270652Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
