Removal And Installation: Notes

NOTE: Lubricate the sensor O-ring with petroleum jelly prior to installing the sensor.

On 4x4 vehicles, remove the front driveshaft. For additional information, refer to DRIVELINE SYSTEM .
For 4x2 vehicles, with the vehicle in PARK, position on a hoist.
Remove the shift cable and bracket.

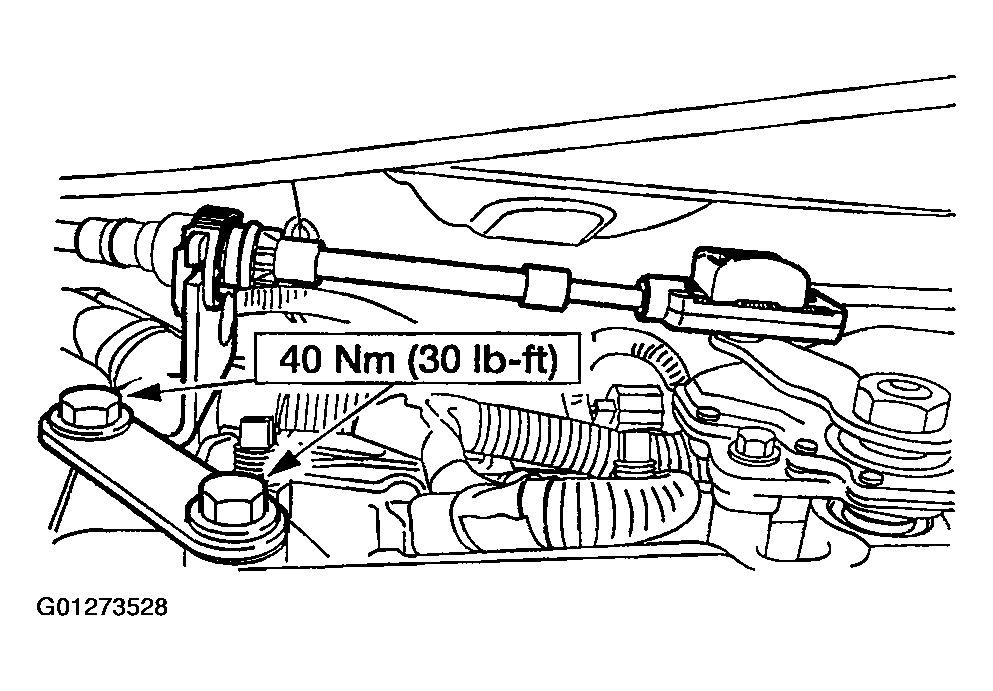

Fig 1: Removing Shift Cable And Bracket - Intermediate Shaft Speed Sensor
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

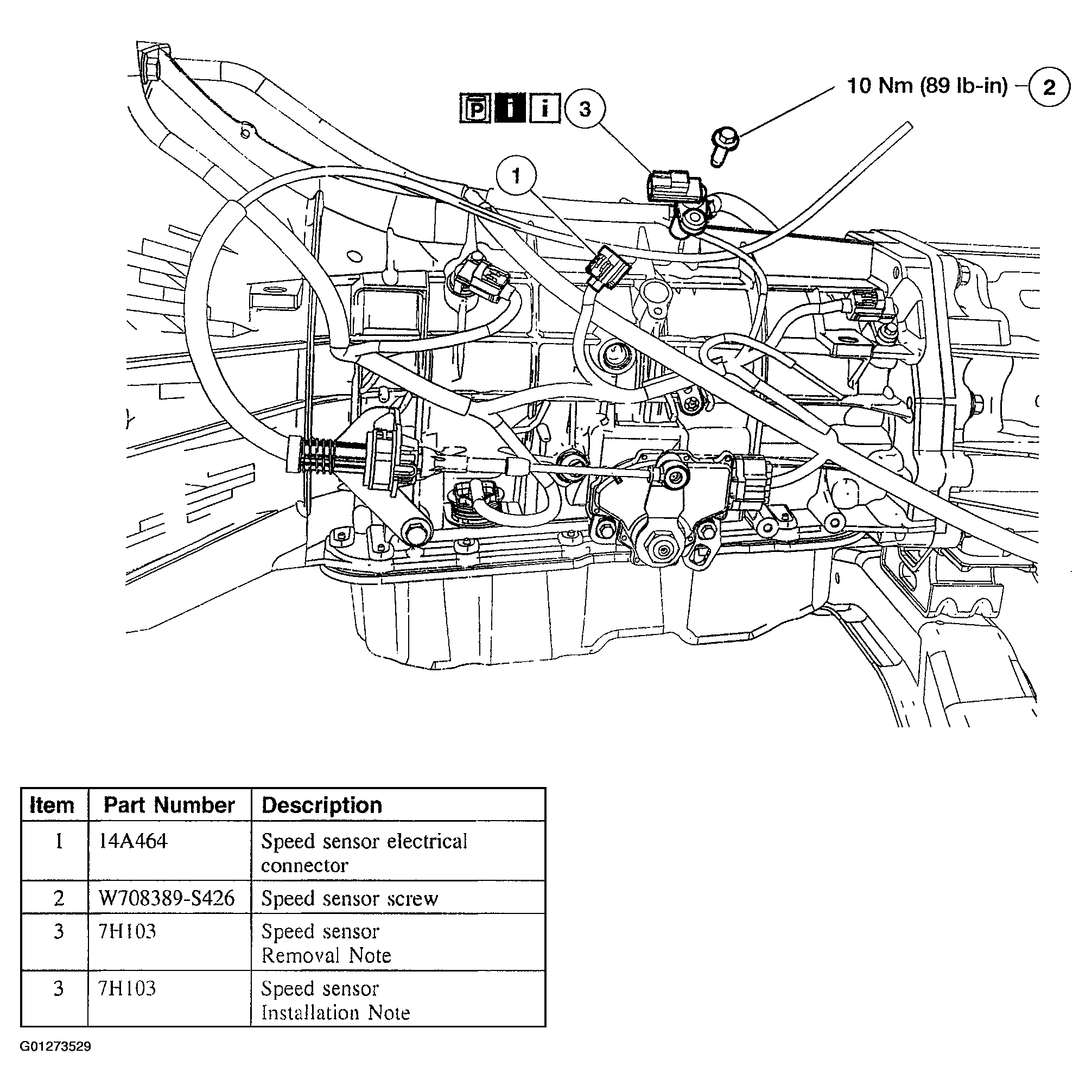

Fig 2: Identifying Intermediate Shaft Speed Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
