Generator C102a
Generator C102a

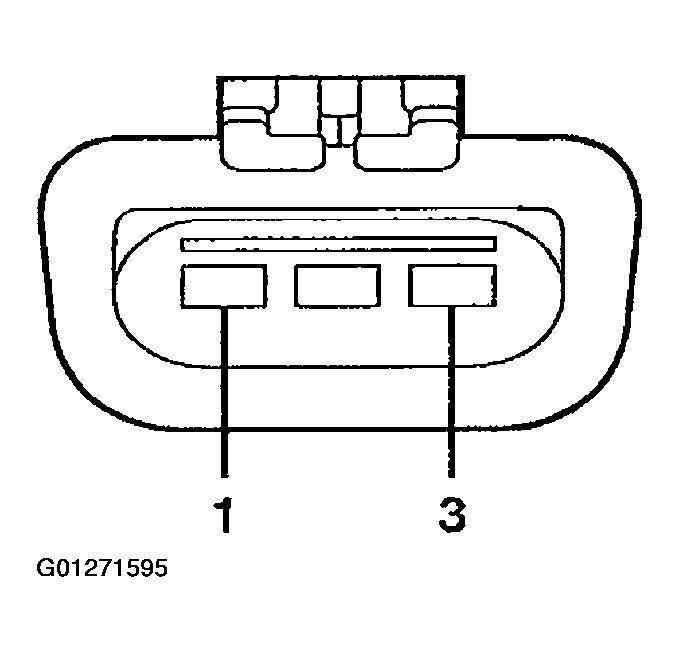

Fig 1: Identifying Generator C102a Connector Points
Courtesy of FORD MOTOR CO.

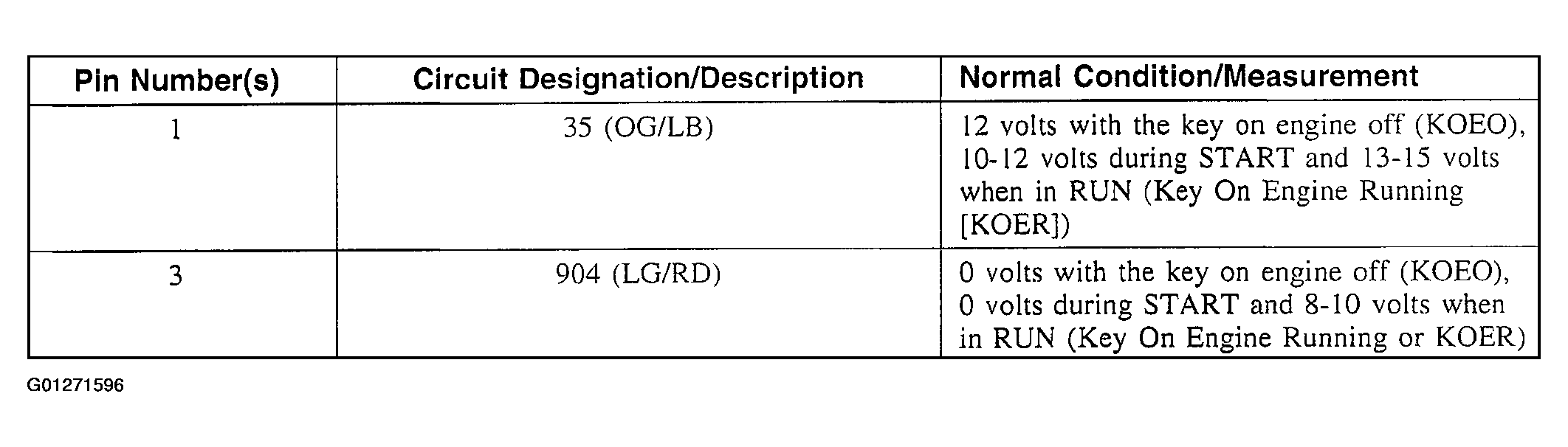

Fig 2: Identifying Generator C102a Connector Pins Reference Table
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
