Pinpoint Test C: Control Linkage Is Binding

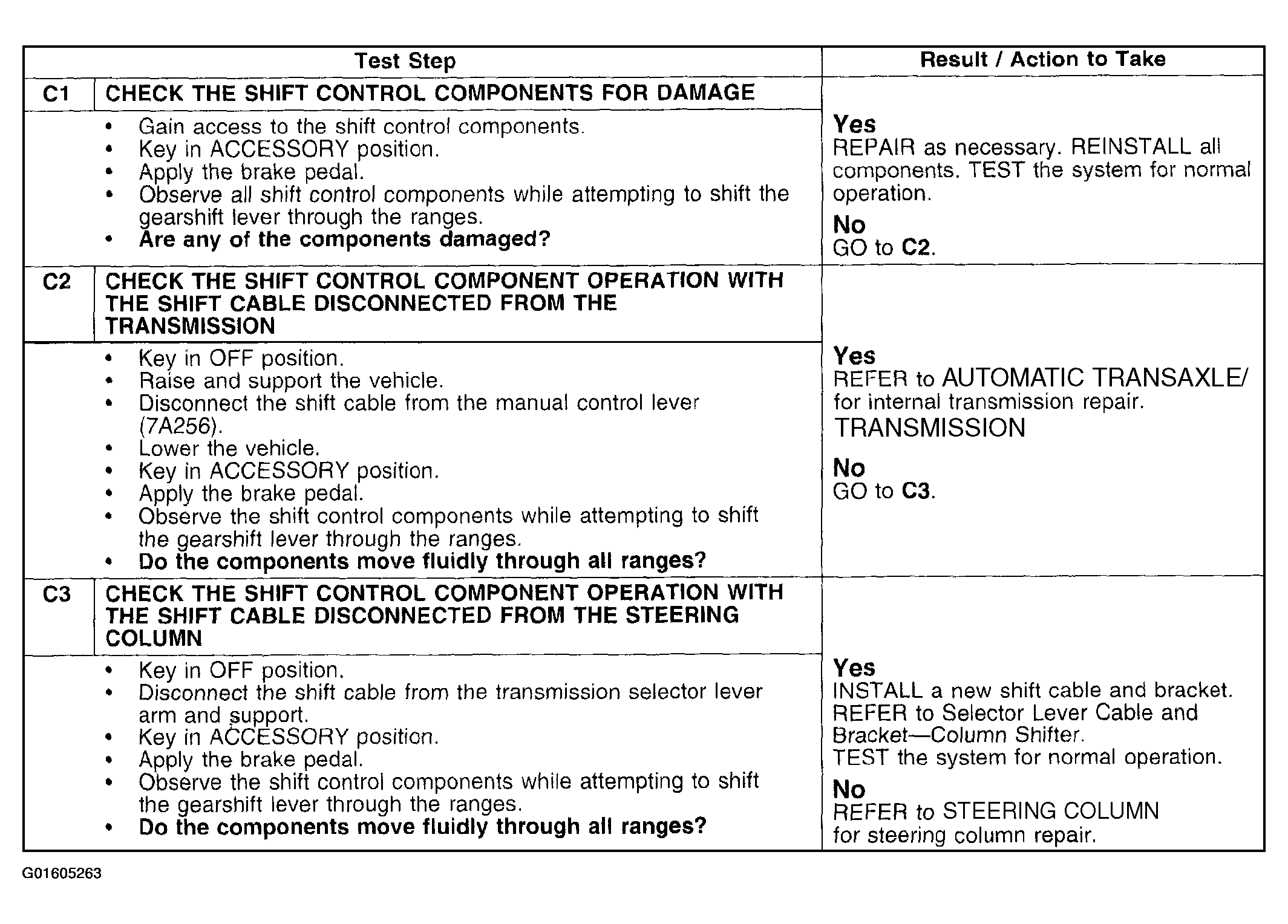

Fig 1: Pinpoint Test C: Control Linkage Is Binding

G01605263

Courtesy of FORD MOTOR CO.
