Extension Housing Gasket: Installation

  1. Install a new extension housing gasket.

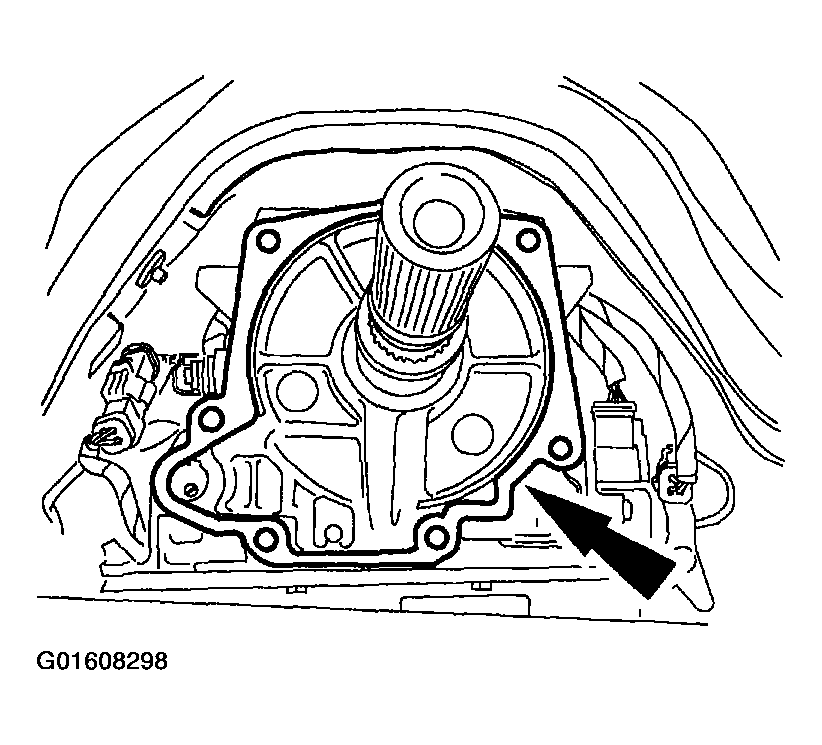

    Fig 1: Installing New Extension Housing Gasket
    G01608298Courtesy of FORD MOTOR CO.
  2. Install the extension housing and the bolts.

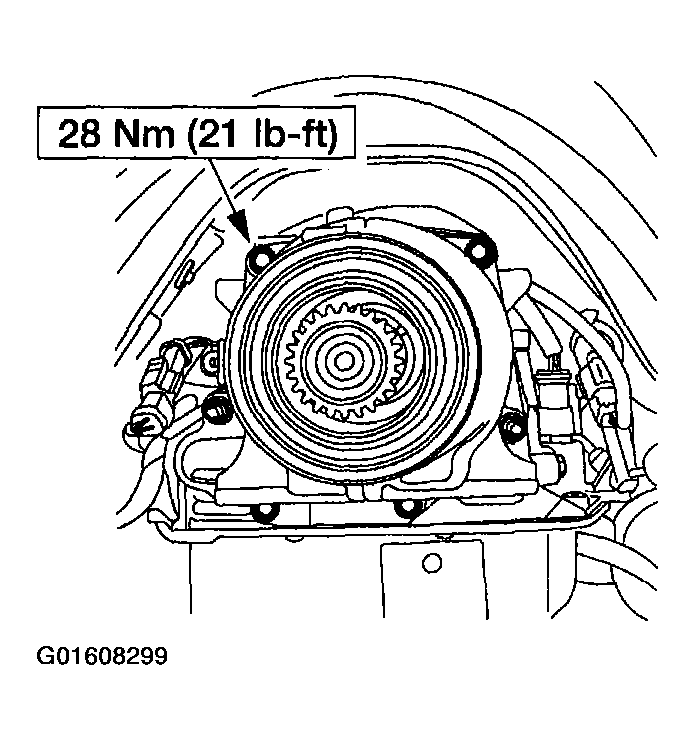

    Fig 2: Installing Extension Housing And Bolts
    G01608299Courtesy of FORD MOTOR CO.
  3. Install the LH and RH catalyst monitor connector retainers.

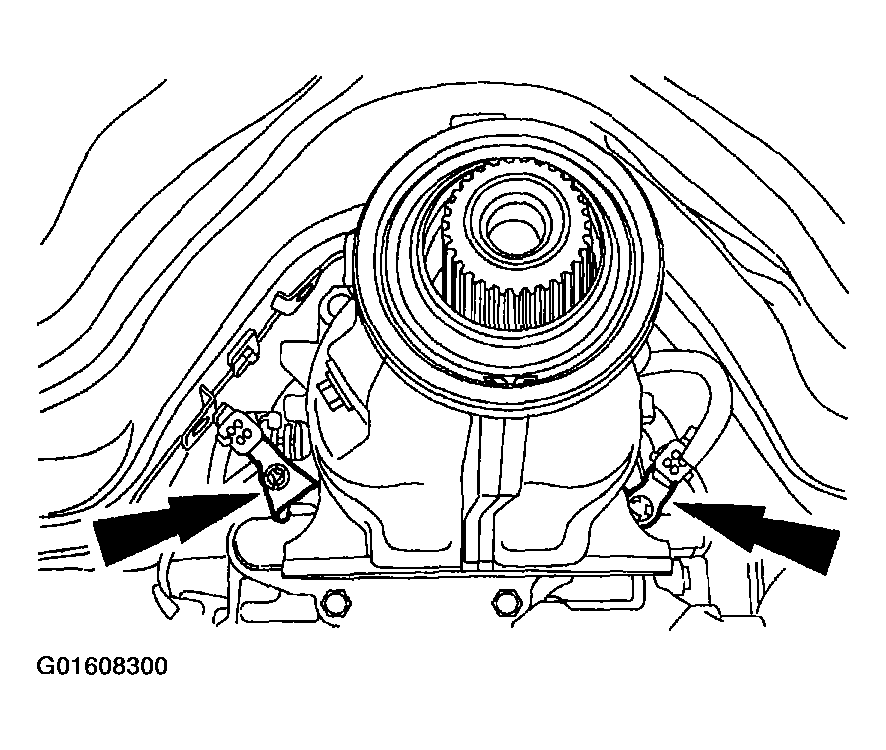

    Fig 3: Installing LH And RH Catalyst Monitor Connector Retainers
    G01608300Courtesy of FORD MOTOR CO.
  4. Install the rear transmission insulator and bolts.

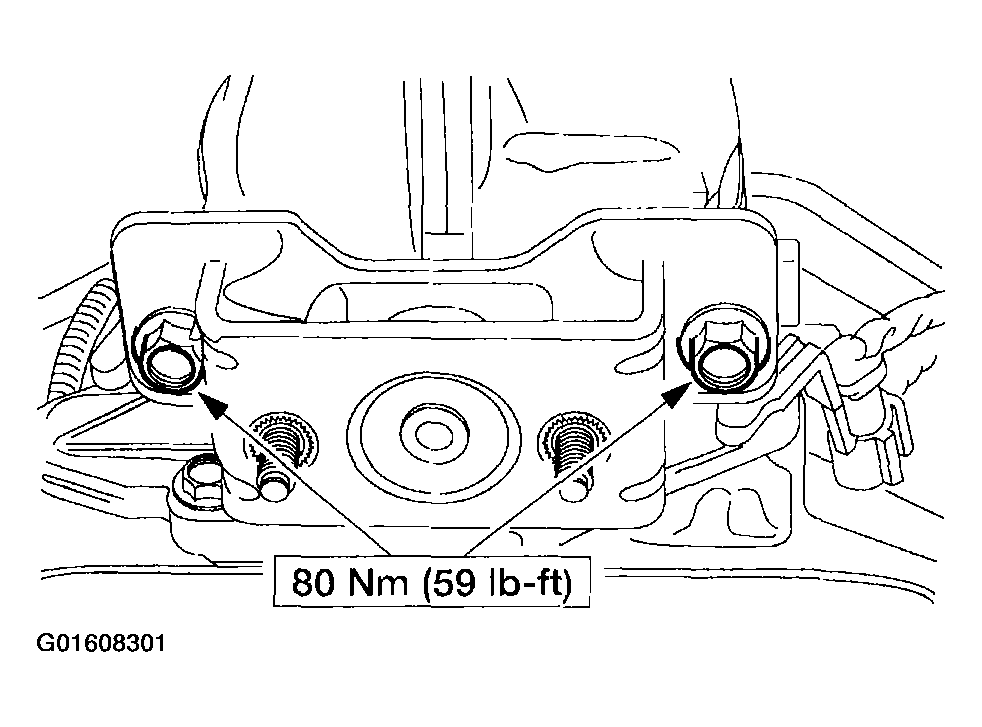

    Fig 4: Installing Rear Transmission Insulator And Bolts
    G01608301Courtesy of FORD MOTOR CO.
  5. Position the RH crossmember and install the bolts.
    Fig 5: Positioning RH Crossmember And Install Bolts
    G01608302Courtesy of FORD MOTOR CO.
  6. Install the LH side crossmember bolt.
    Fig 6: Installing LH Side Crossmember Bolt
    G01608303Courtesy of FORD MOTOR CO.
  7. Install the parking brake cable bracket.

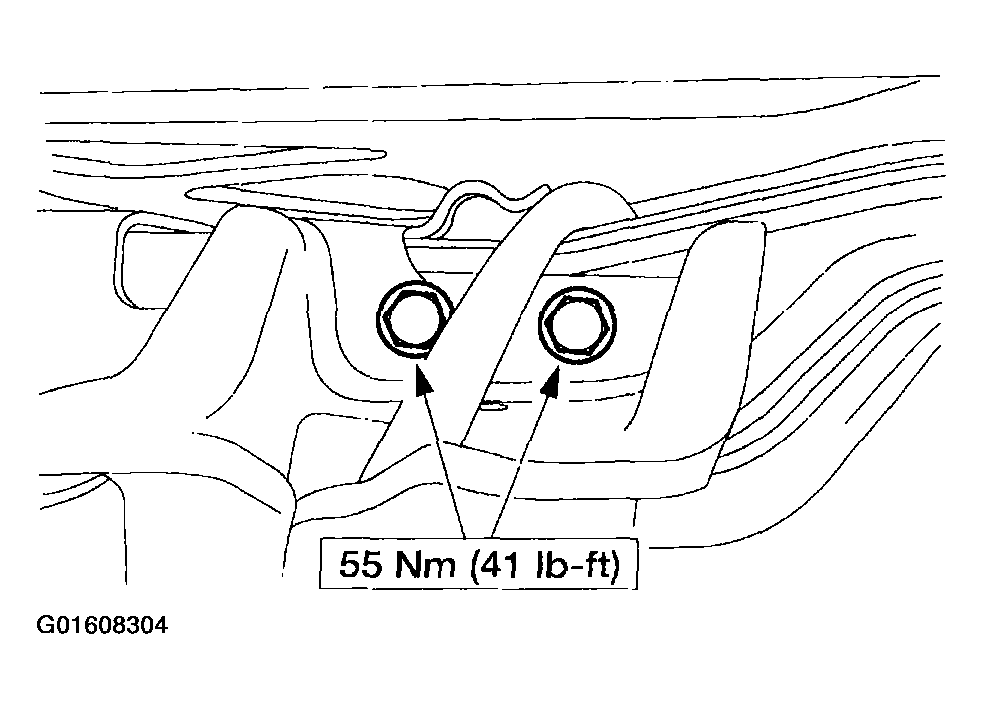

    Fig 7: Installing Parking Brake Cable Bracket
    G01608304Courtesy of FORD MOTOR CO.
  8. Lower the transmission onto the crossmember and install the rear transmission insulator nuts.
    Fig 8: Installing Rear Transmission Insulator Nuts
    G01608305Courtesy of FORD MOTOR CO.
  9. Remove the transmission jack.
  10. Position the RH catalytic converter assembly in place. Do not tighten the clamp at this time.

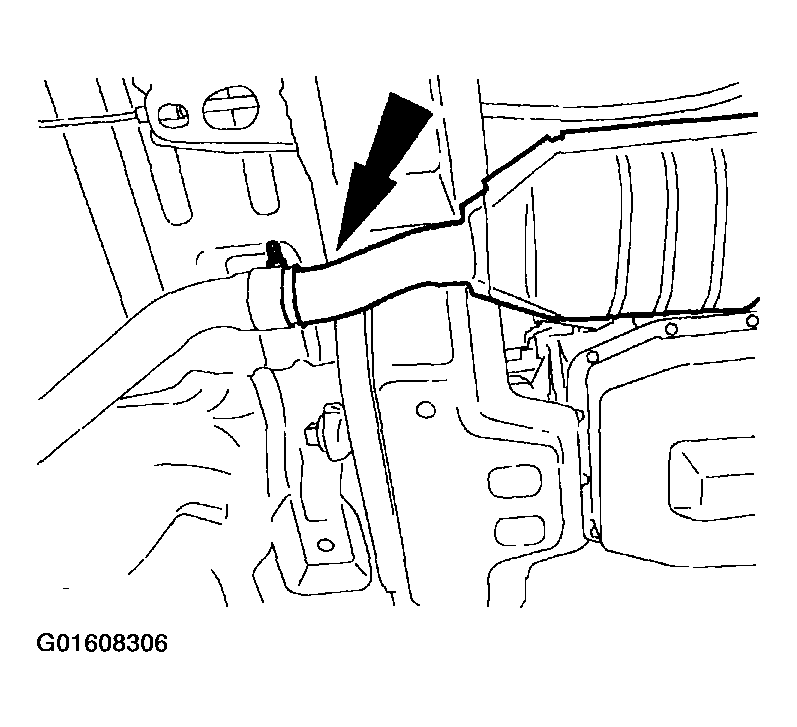

    Fig 9: Locating Clamp
    G01608306Courtesy of FORD MOTOR CO.
  11. Install the RH exhaust flange nuts.

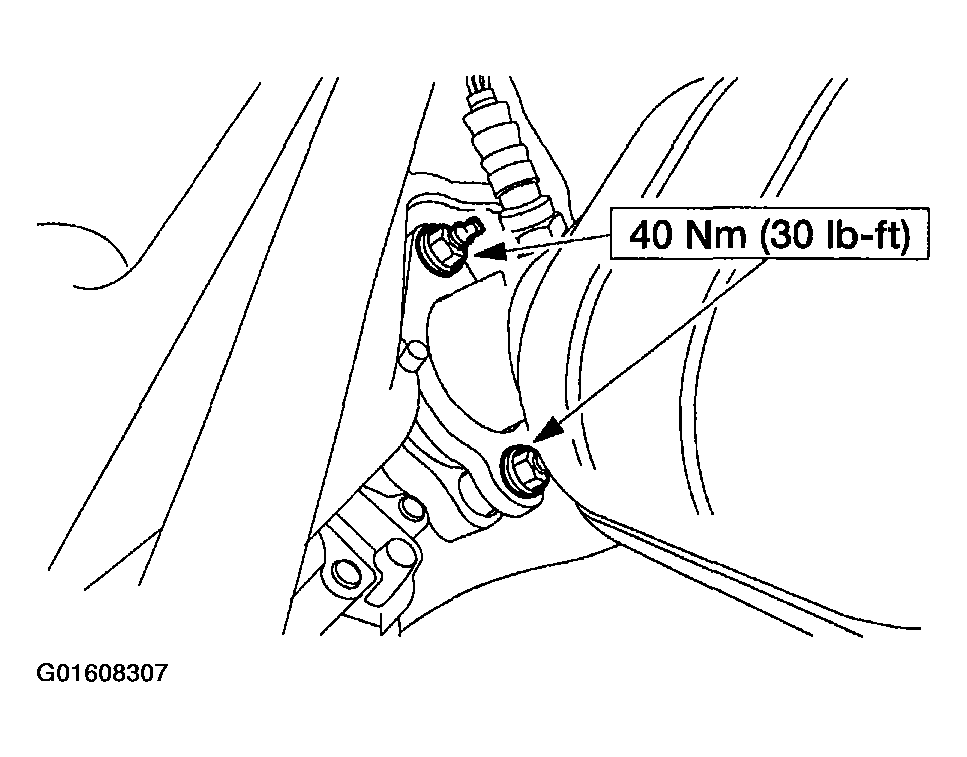

    Fig 10: Installing RH Exhaust Flange Nuts
    G01608307Courtesy of FORD MOTOR CO.
  12. Tighten the RH exhaust clamp.
    Fig 11: Tightening RH Exhaust Clamp
    G01608308Courtesy of FORD MOTOR CO.
  13. Connect the RH HO2S sensor connector.

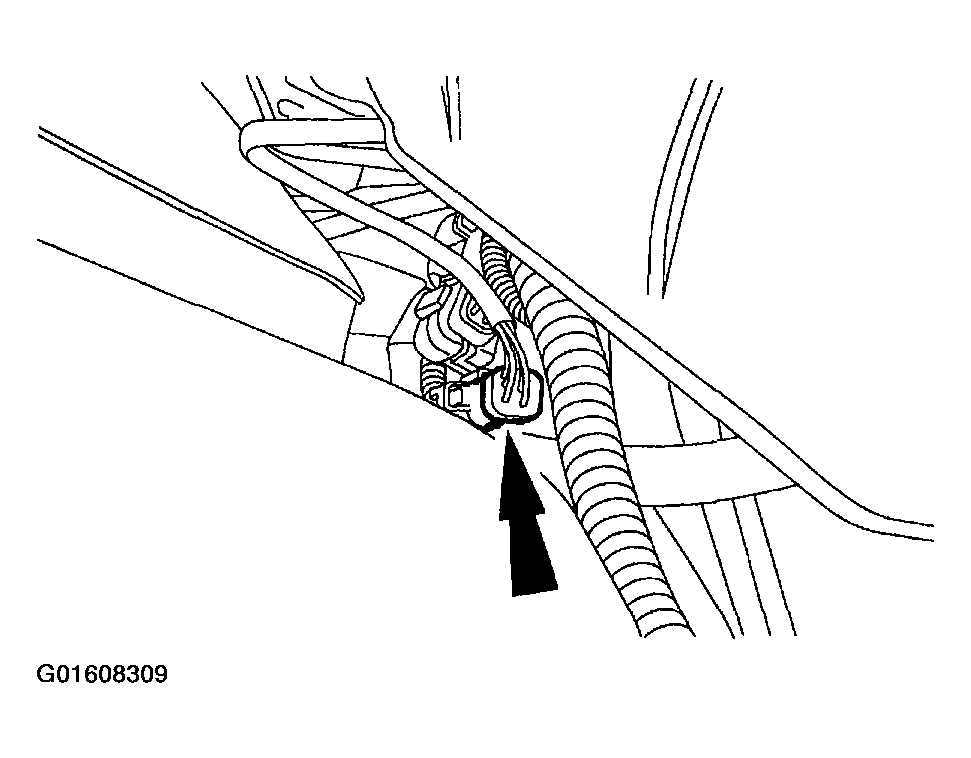

    Fig 12: Connecting RH HO2S Sensor Connector
    G01608309Courtesy of FORD MOTOR CO.
  14. Connect the RH catalyst monitor connector.

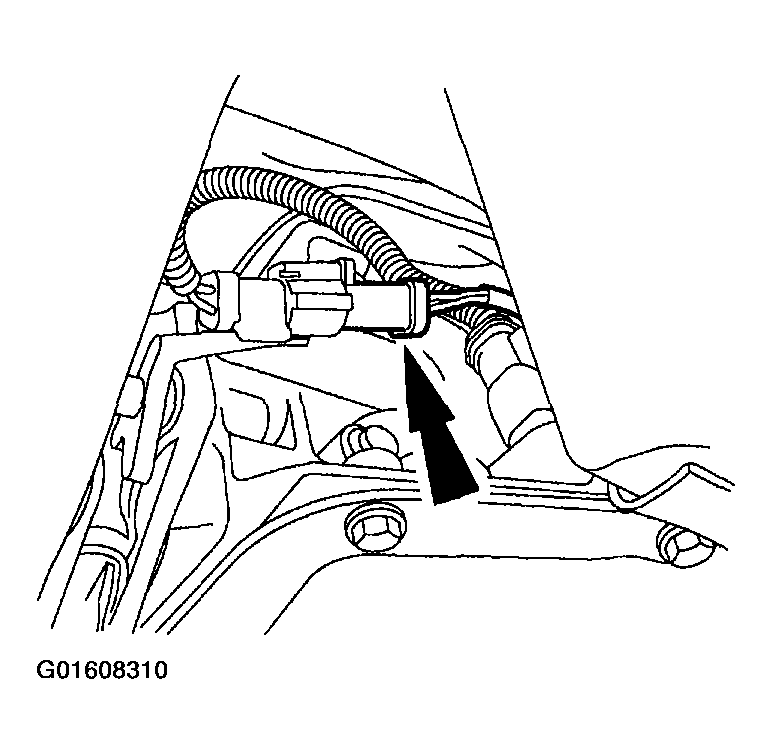

    Fig 13: Connecting RH Catalyst Monitor Connector
    G01608310Courtesy of FORD MOTOR CO.
  15. Position the LH catalytic converter assembly in place. Do not tighten the clamps at this time.

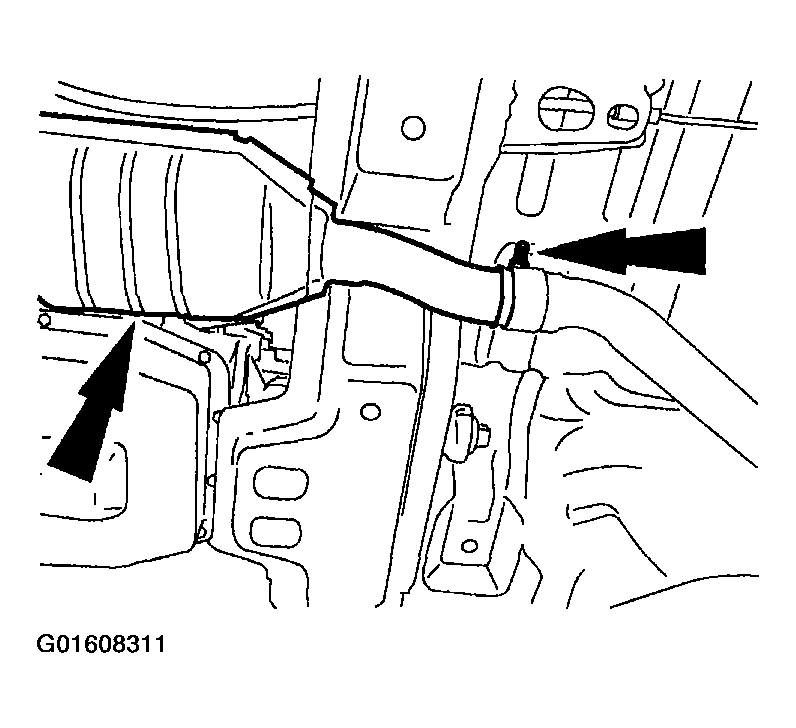

    Fig 14: Locating Clamp
    G01608311Courtesy of FORD MOTOR CO.
  16. Install the LH exhaust flange nuts.

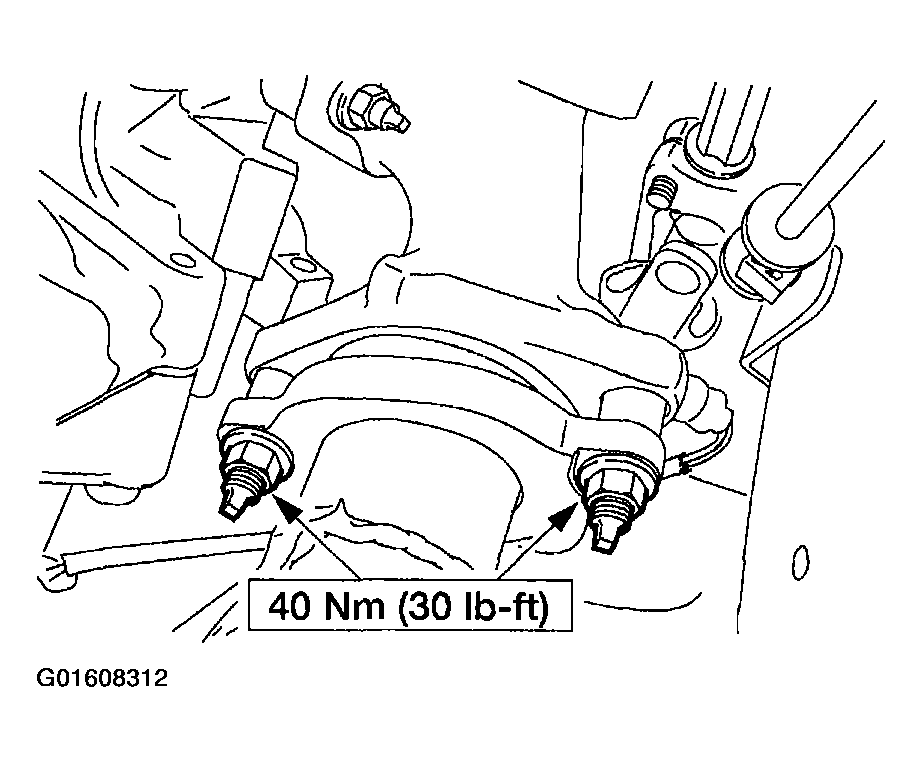

    Fig 15: Installing LH Exhaust Flange Nuts
    G01608312Courtesy of FORD MOTOR CO.
  17. Tighten the LH exhaust clamp.
    Fig 16: Tightening LH Exhaust Clamp
    G01608313Courtesy of FORD MOTOR CO.
  18. Connect the LH HO2S sensor connector.

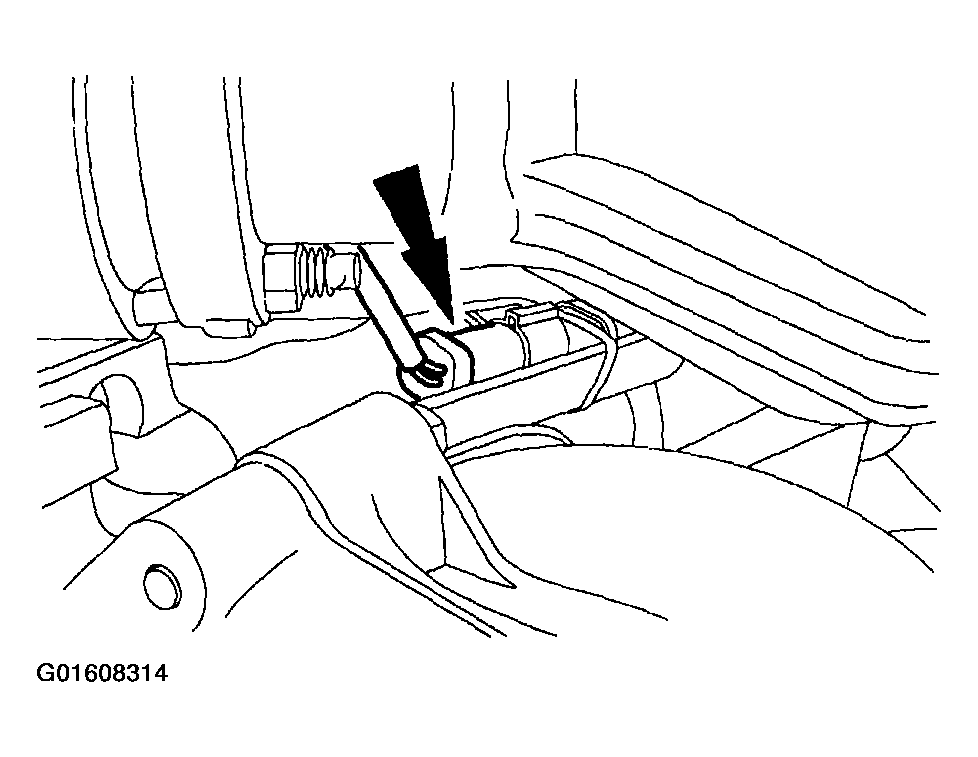

    Fig 17: Connecting LH HO2S Sensor Connector
    G01608314Courtesy of FORD MOTOR CO.
  19. Connect the LH catalyst monitor connector.

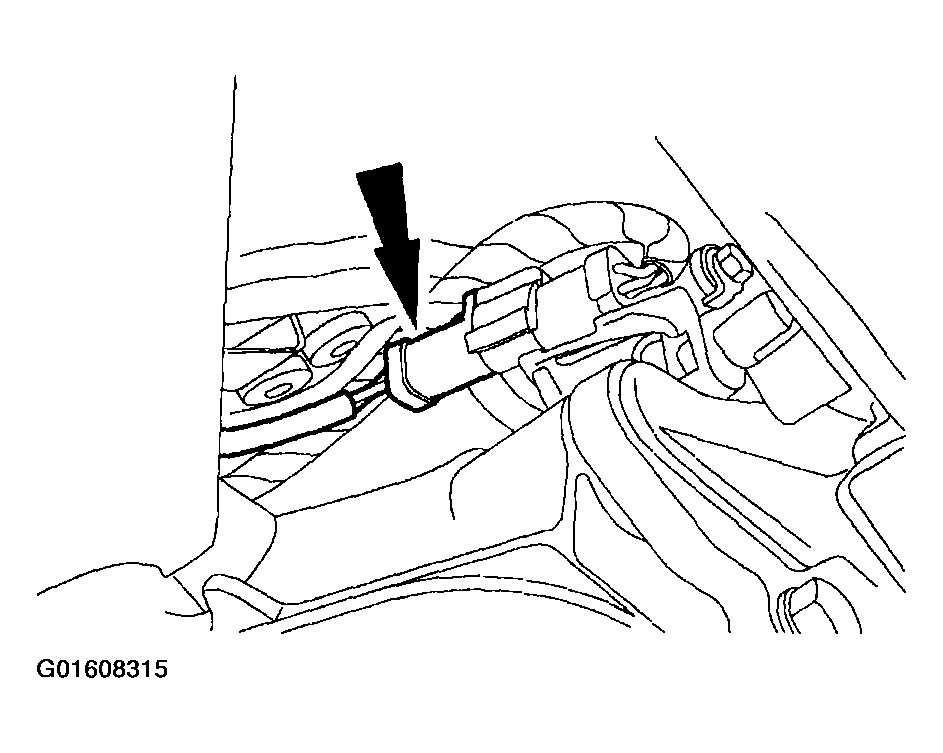

    Fig 18: Connecting LH Catalyst Monitor Connector
    G01608315Courtesy of FORD MOTOR CO.
    20. NOTE: The output shaft and the driveshaft are a balanced assembly.
    Fig 19: Installing Driveshaft
    G01608316Courtesy of FORD MOTOR CO.
  20. Install the driveshaft.
    • Align the index marks and position the driveshaft on the transmission.
    • Install the driveshaft.
    21. NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

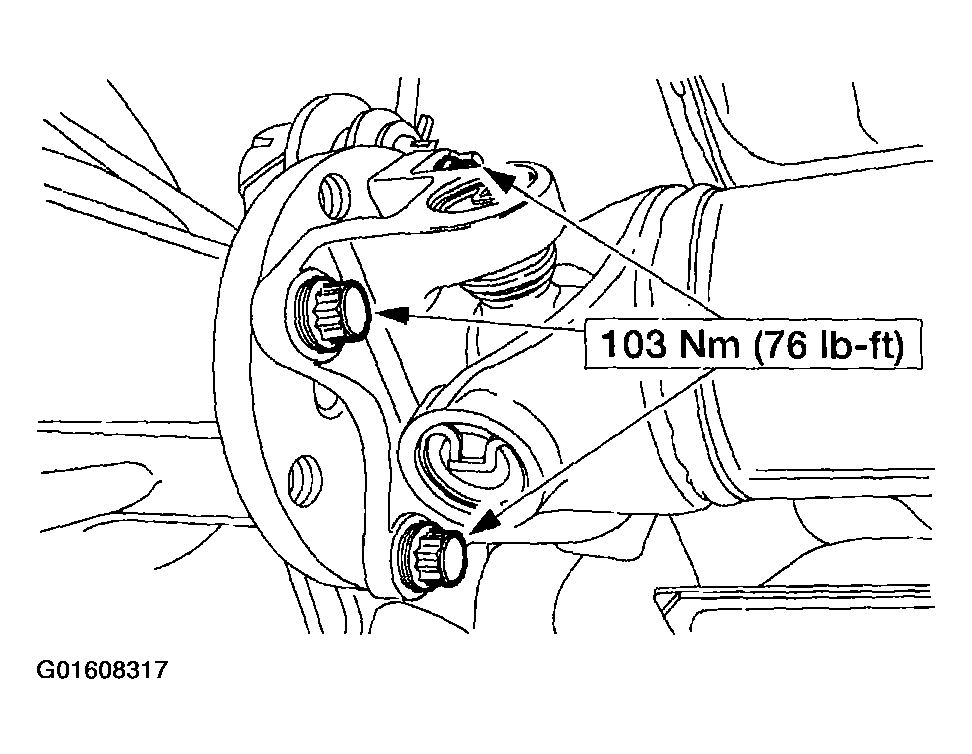

    Fig 20: Installing Retaining Bolts
    G01608317Courtesy of FORD MOTOR CO.
  21. Install the four retaining bolts.
  22. Lower the vehicle.
  23. Check the level of the transmission fluid, add clean automatic transmission fluid as necessary.
