Digital Transmission Range (TR) Sensor: Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Raise the vehicle on a hoist. For additional information, refer to JACKING & HOISTING .
Disconnect the manual lever shift control cable.

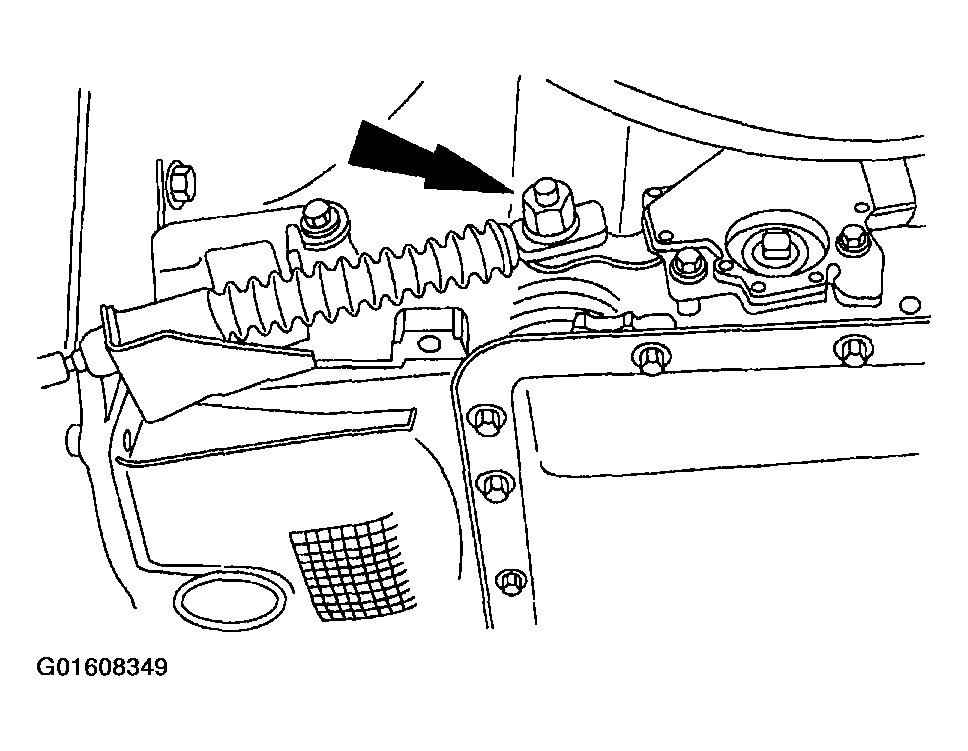

Fig 1: Disconnecting Manual Lever Shift Control Cable
Courtesy of FORD MOTOR CO.
Disconnect the digital TR sensor connector.

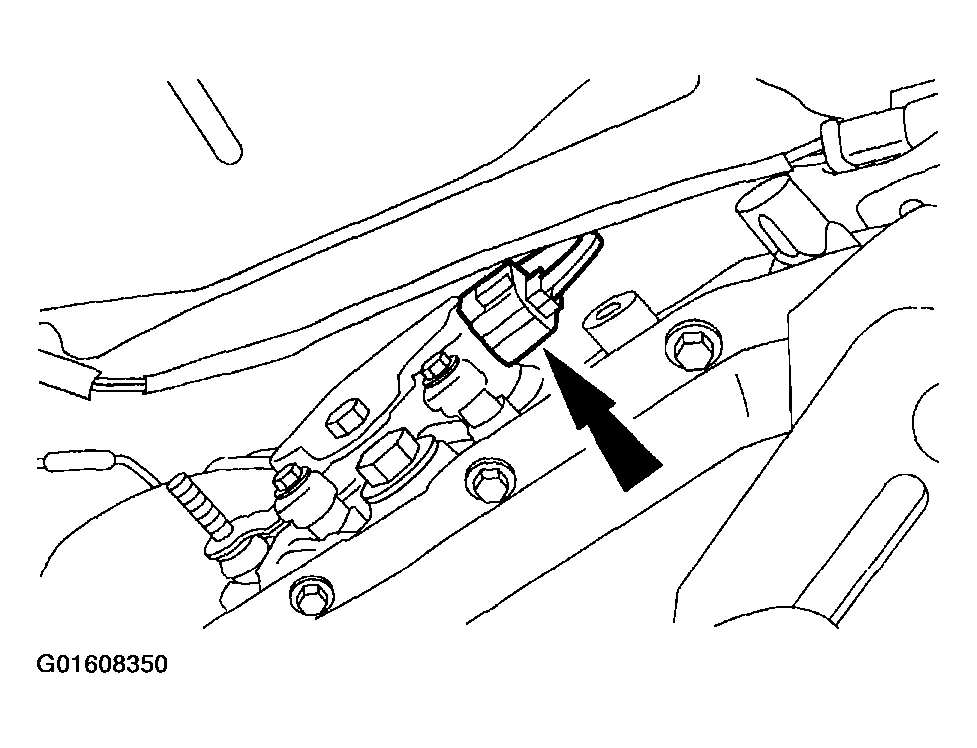

Fig 2: Disconnecting Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the digital TR sensor.

Fig 3: Removing Bolts And Removing Digital TR Sensor
Courtesy of FORD MOTOR CO.
