Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.

NOTE: Manual shift lever shaft must be in the neutral position.

Fig 2: Aligning Digital TR Sensor Slots

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.
Tighten the bolts and remove the special tool.

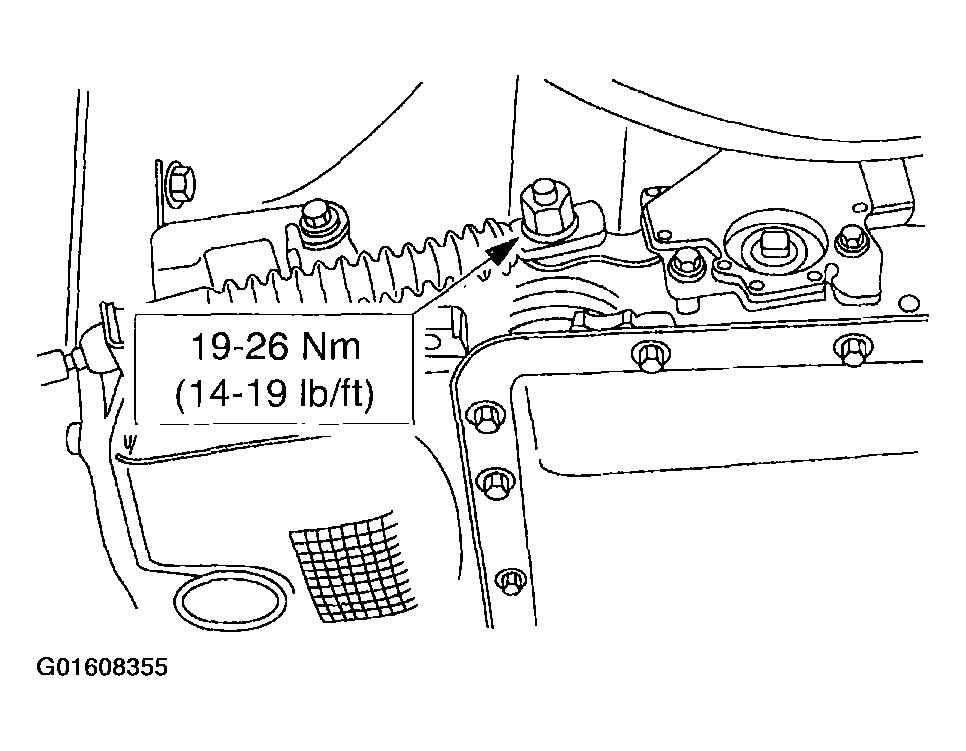

Fig 3: Tightening Bolts And Removing Special Tool
Courtesy of FORD MOTOR CO.
With the manual lever in overdrive, connect the shift lever control cable.

Fig 4: Connecting Shift Lever Control Cable
Courtesy of FORD MOTOR CO.
Connect the digital TR sensor electrical connector.

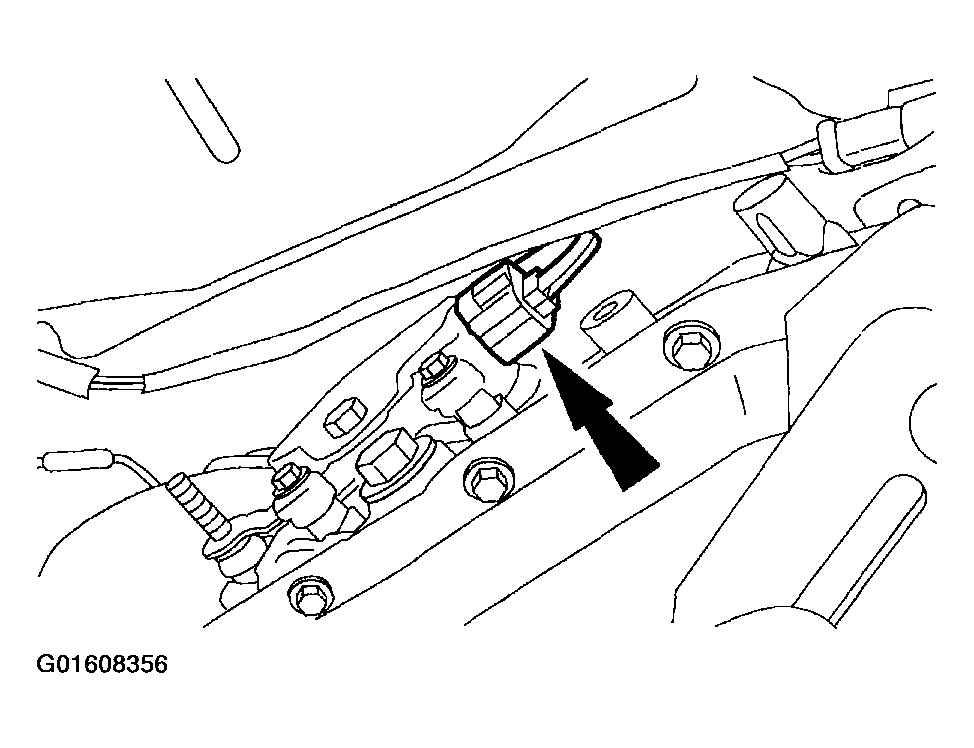

Fig 5: Connecting Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Connect the battery ground cable.
