Camber Adjustment: Front

  1. If necessary, remove and discard the cam bolt retainer flag. See Fig 1 . Loosen the cam bolt nut. See Fig 2 . Rotate the cam bolt to adjust camber. See Fig 3 .
  2. While holding the cam bolt, tighten the nut to specification. See TORQUE SPECIFICATIONS  . Recheck the camber, caster and toe, and adjust as needed.

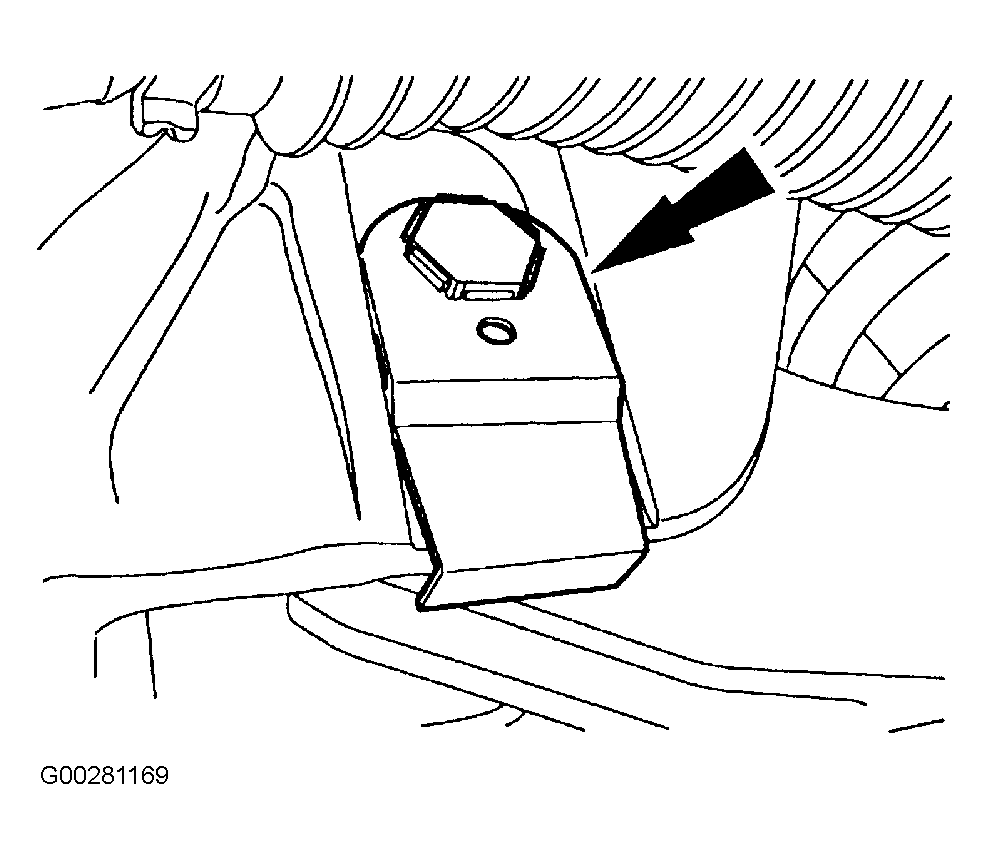

Fig 1: Identifying Cam Bolt Retainer Flag
G00281169Courtesy of FORD MOTOR CO.

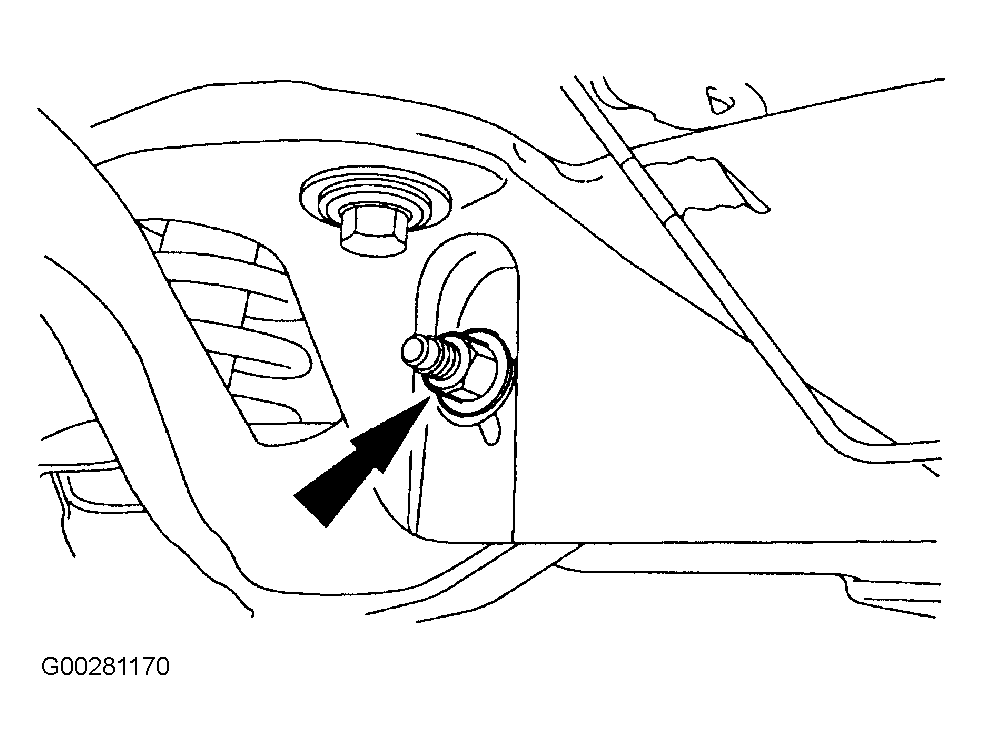

Fig 2: Locating Cam Bolt Nut
G00281170Courtesy of FORD MOTOR CO.

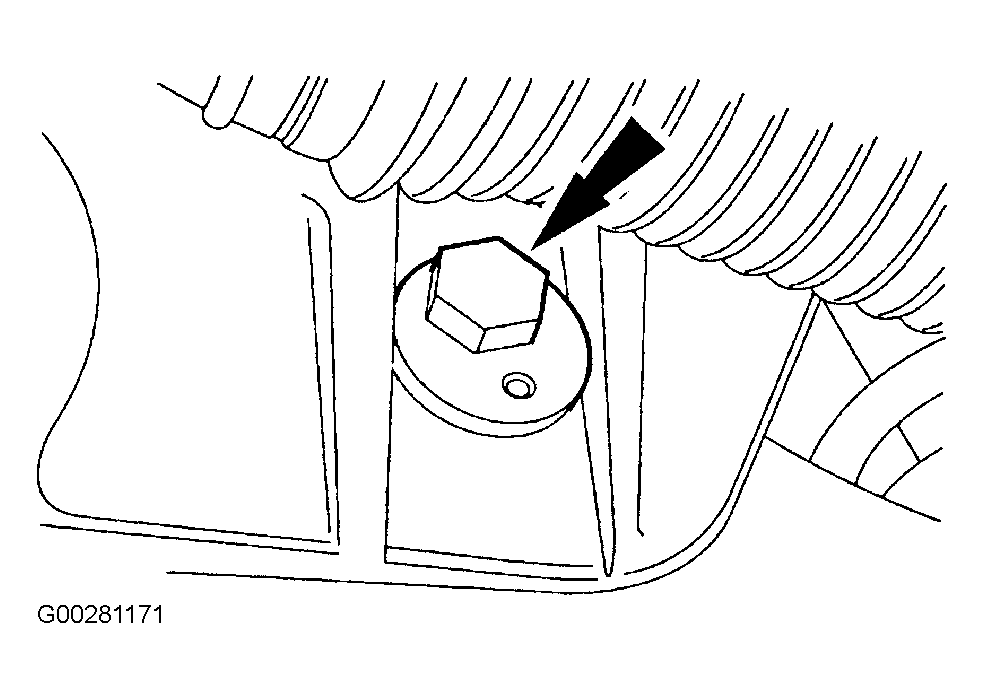

Fig 3: Identifying Cam Bolt
G00281171Courtesy of FORD MOTOR CO.
