Jacking & Hoisting: Hoist
CAUTION:
Do not allow the hoist adapters to contact the steering linkage, suspension arms, stabilizer bar, rear subframe stabilizer brackets or to compress the lower suspension arm stabilizer bar insulator. Damage to the suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the hoist adapters of two-post hoists prior to lifting the vehicle. Never use the differential housing as a lift point. Damage to the differential housing and cover. To prevent possible damage to the underbody, do not drive the vehicle onto the drive-on hoist without first checking for possible interference.

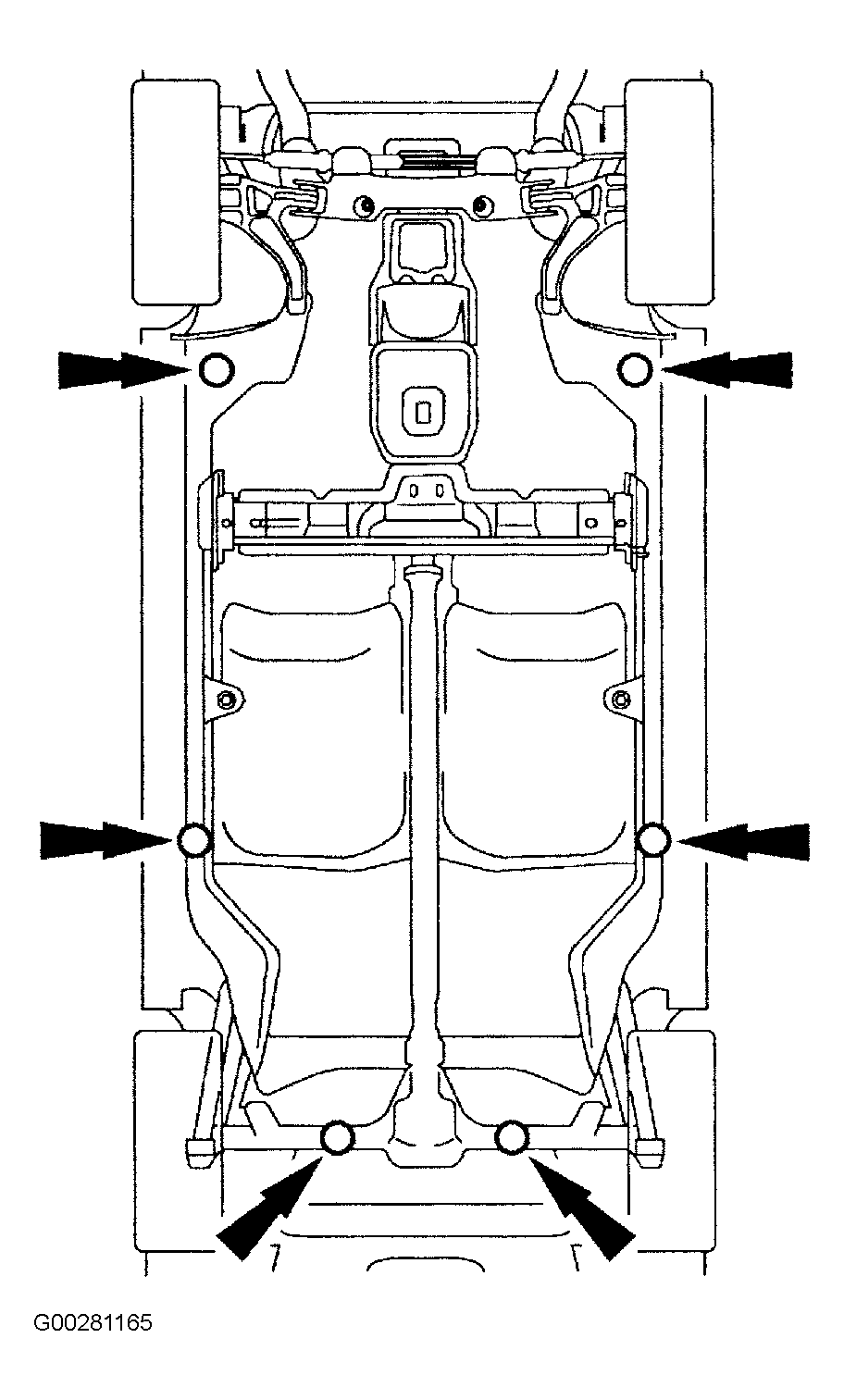

For lifting points see Fig 1 .
