Power seat switch, left

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

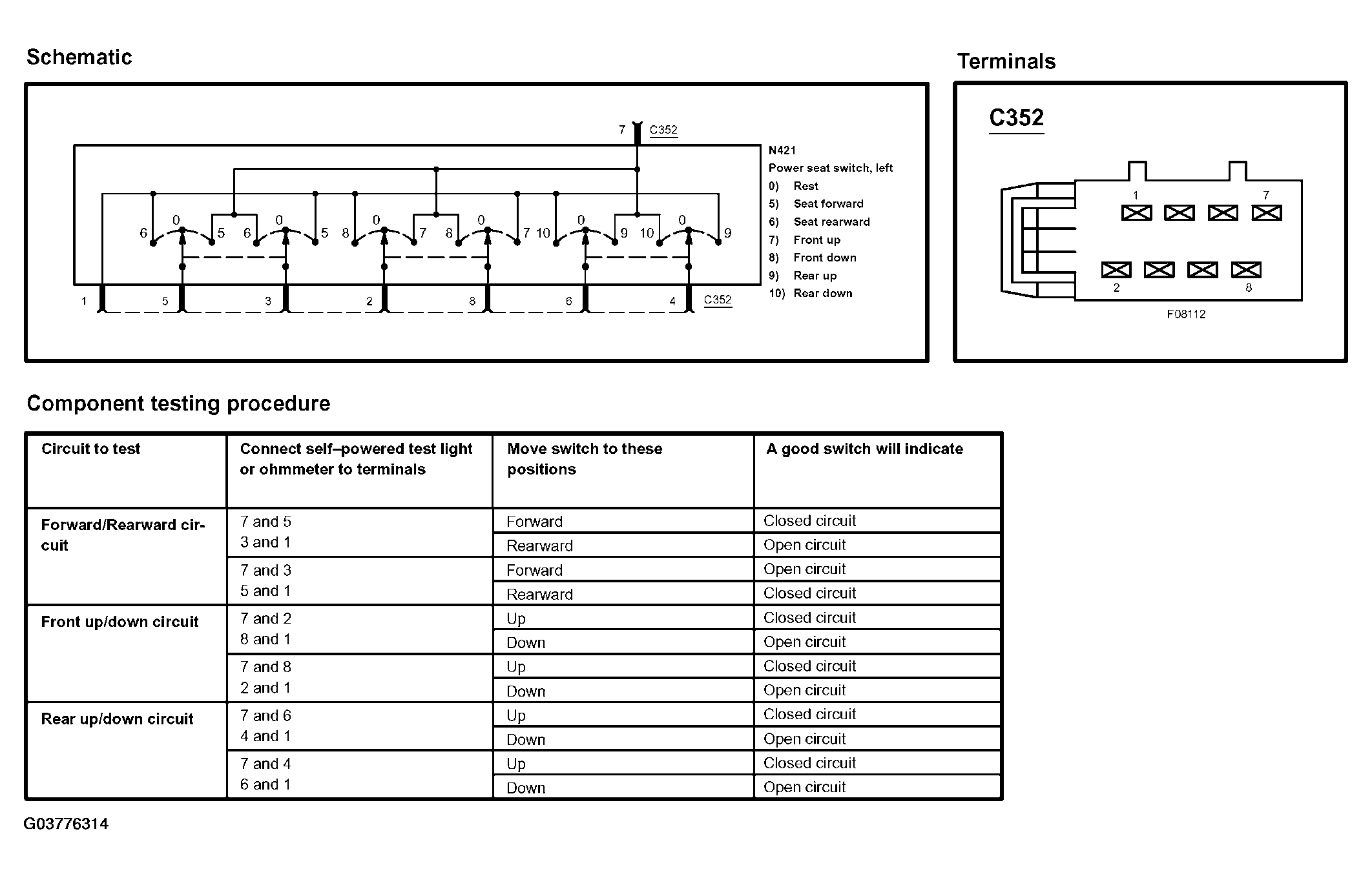

Fig 1: Testing Power Seat Switch (Left)
G03776314Courtesy of FORD MOTOR CO.
