Pinpoint Test I: The Variable Assist Power Steering (VAPS) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

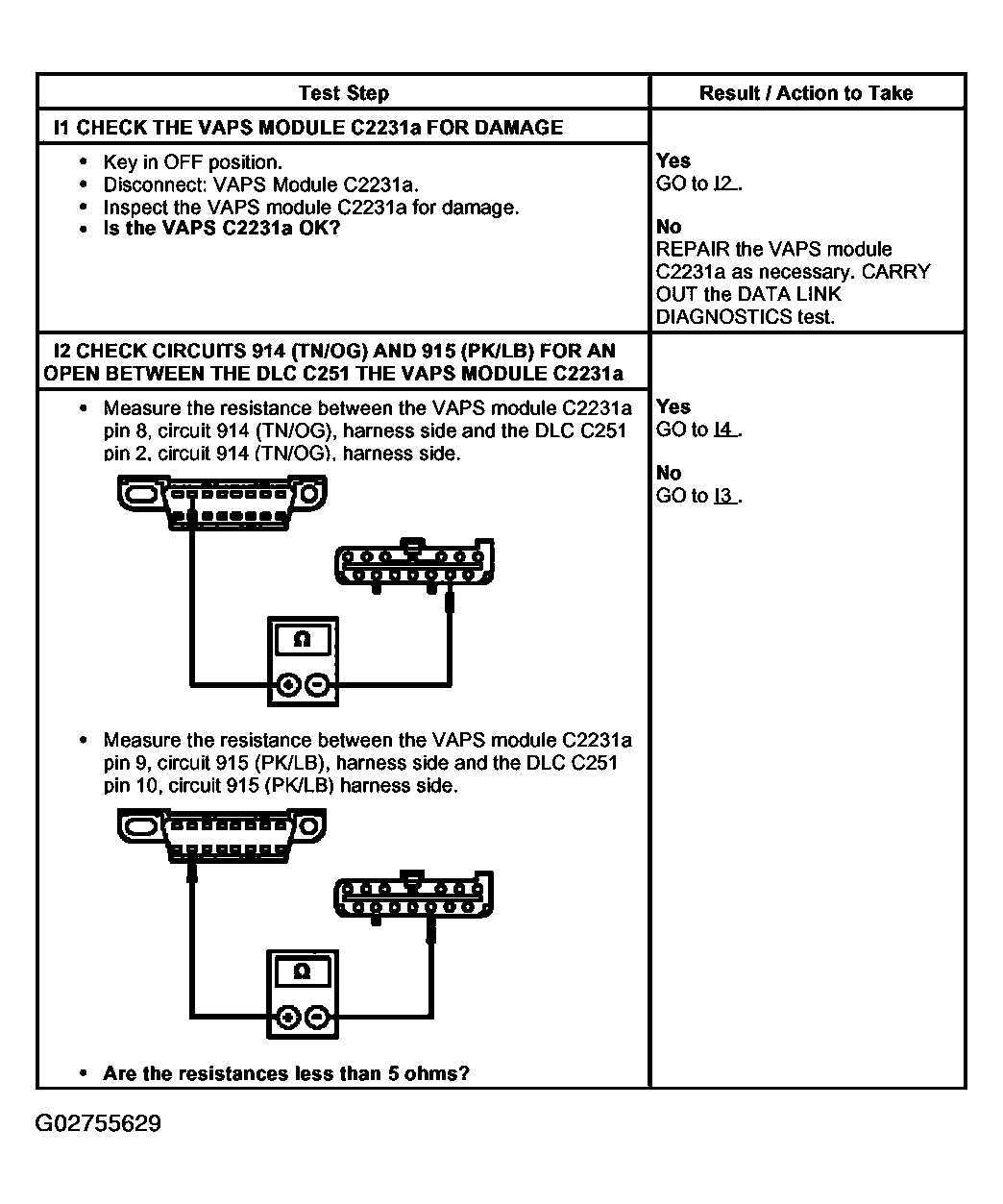

Fig 1: Pinpoint Test I: Variable Assist Power Steering (VAPS) Module Does Not Respond To Diagnostic Tool (Step I1 & I2)
G02755629Courtesy of FORD MOTOR CO.

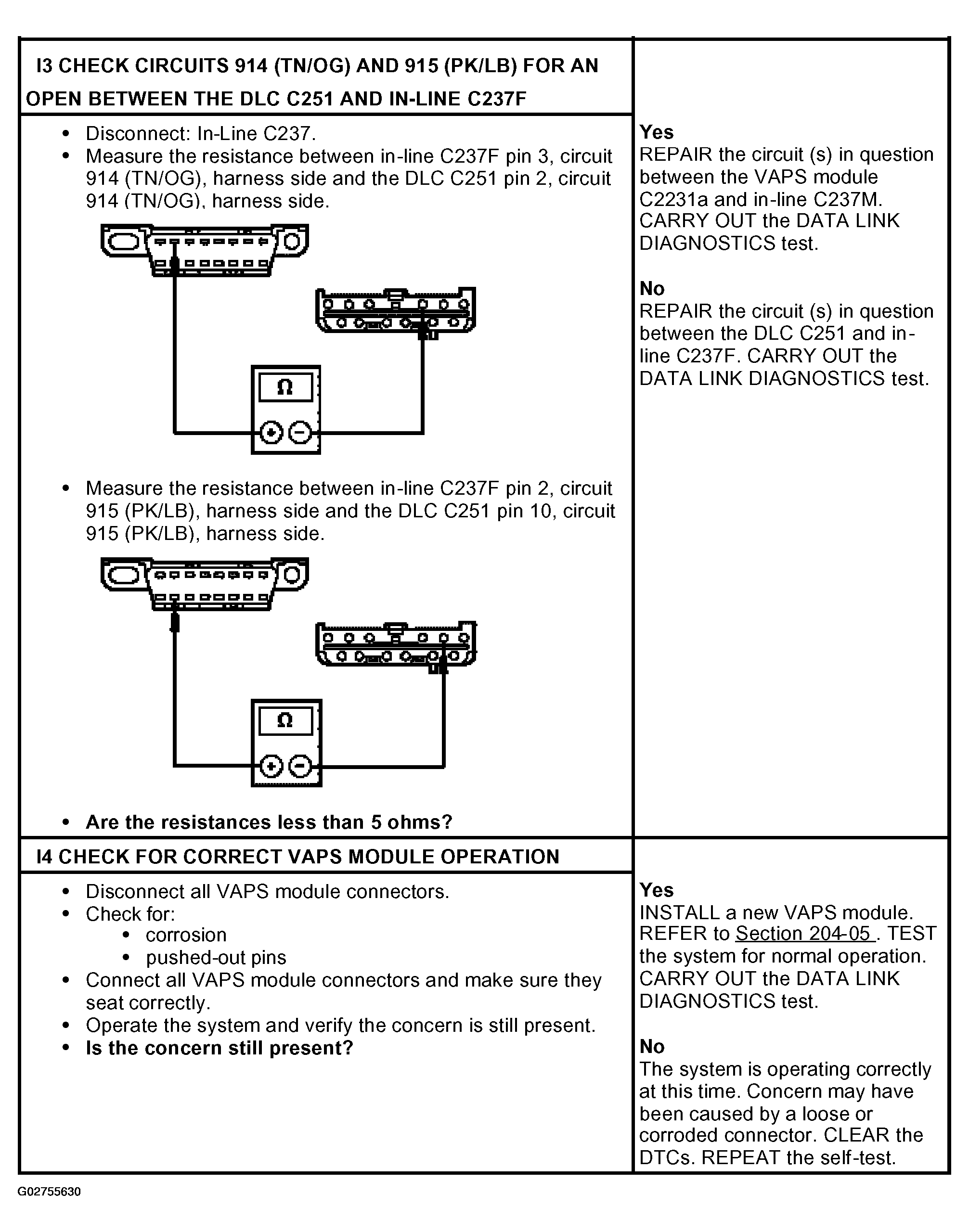

Fig 2: Pinpoint Test I: Variable Assist Power Steering (VAPS) Module Does Not Respond To Diagnostic Tool (Step I3 & I4)
G02755630Courtesy of FORD MOTOR CO.
