Pinpoint Test G: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

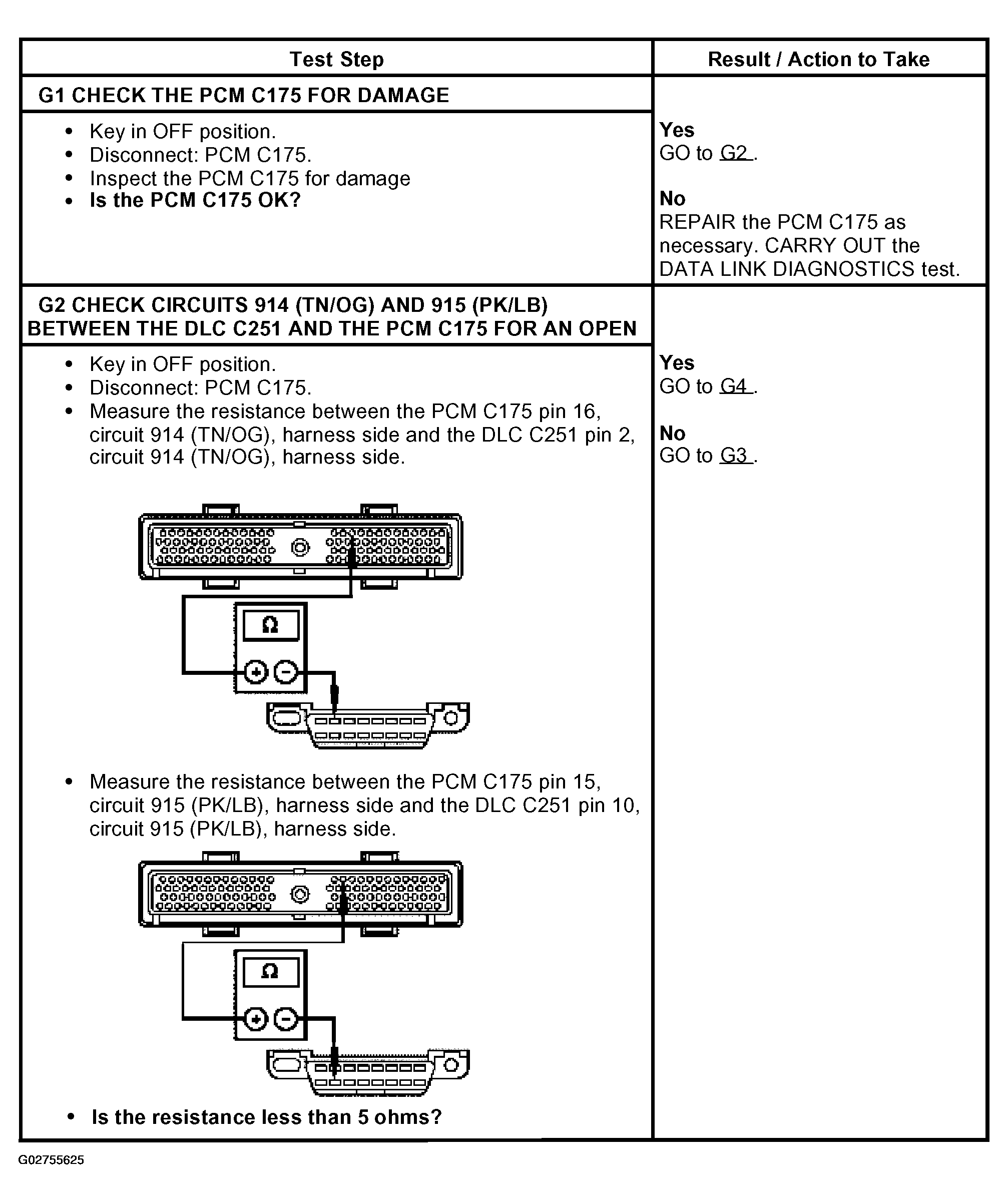

Fig 1: Pinpoint Test G: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Step G1 & G2)
G02755625Courtesy of FORD MOTOR CO.

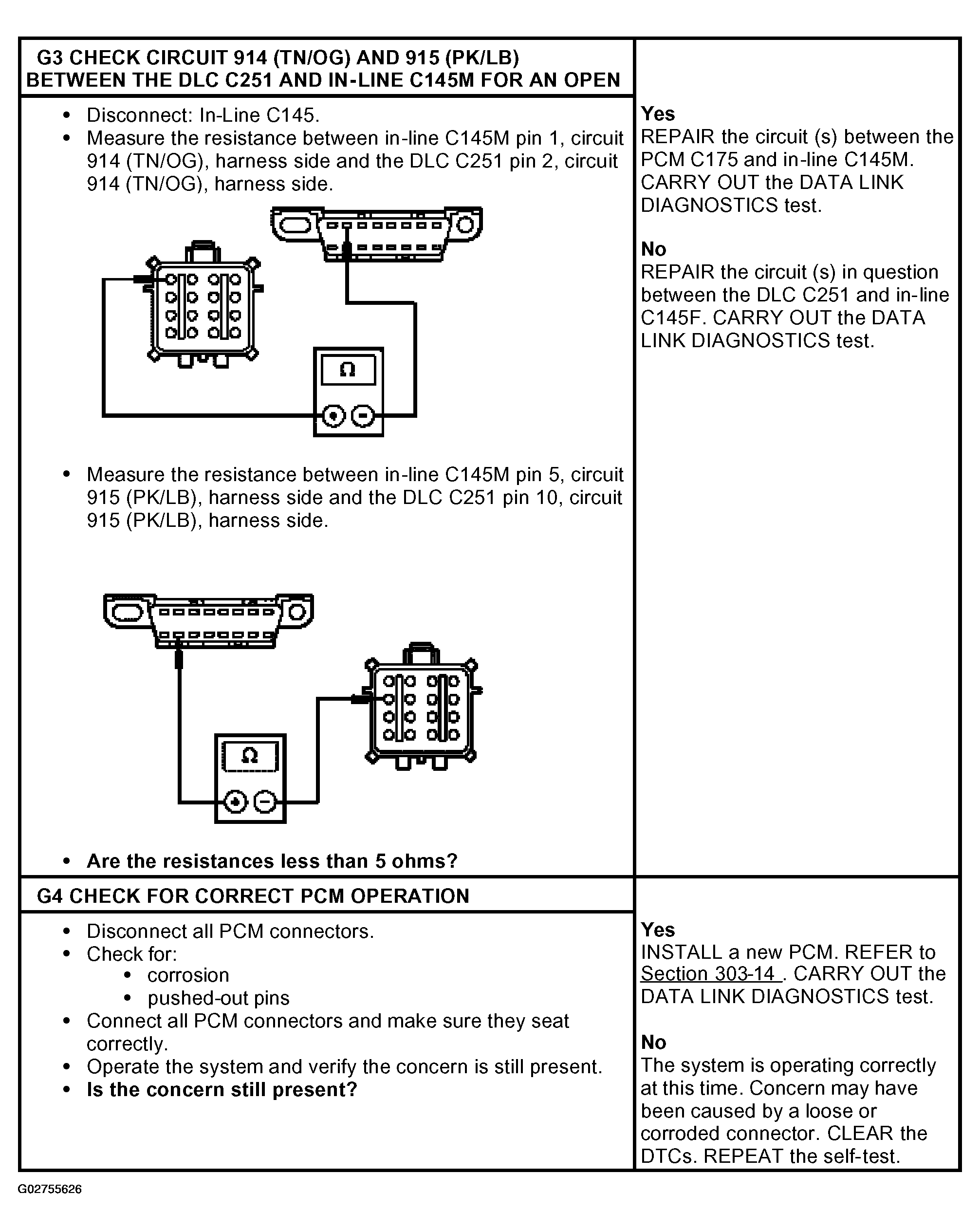

Fig 2: Pinpoint Test G: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Step G3 & G4)
G02755626Courtesy of FORD MOTOR CO.
