Pinpoint Test E: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond To The Diagnostic Tool -

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

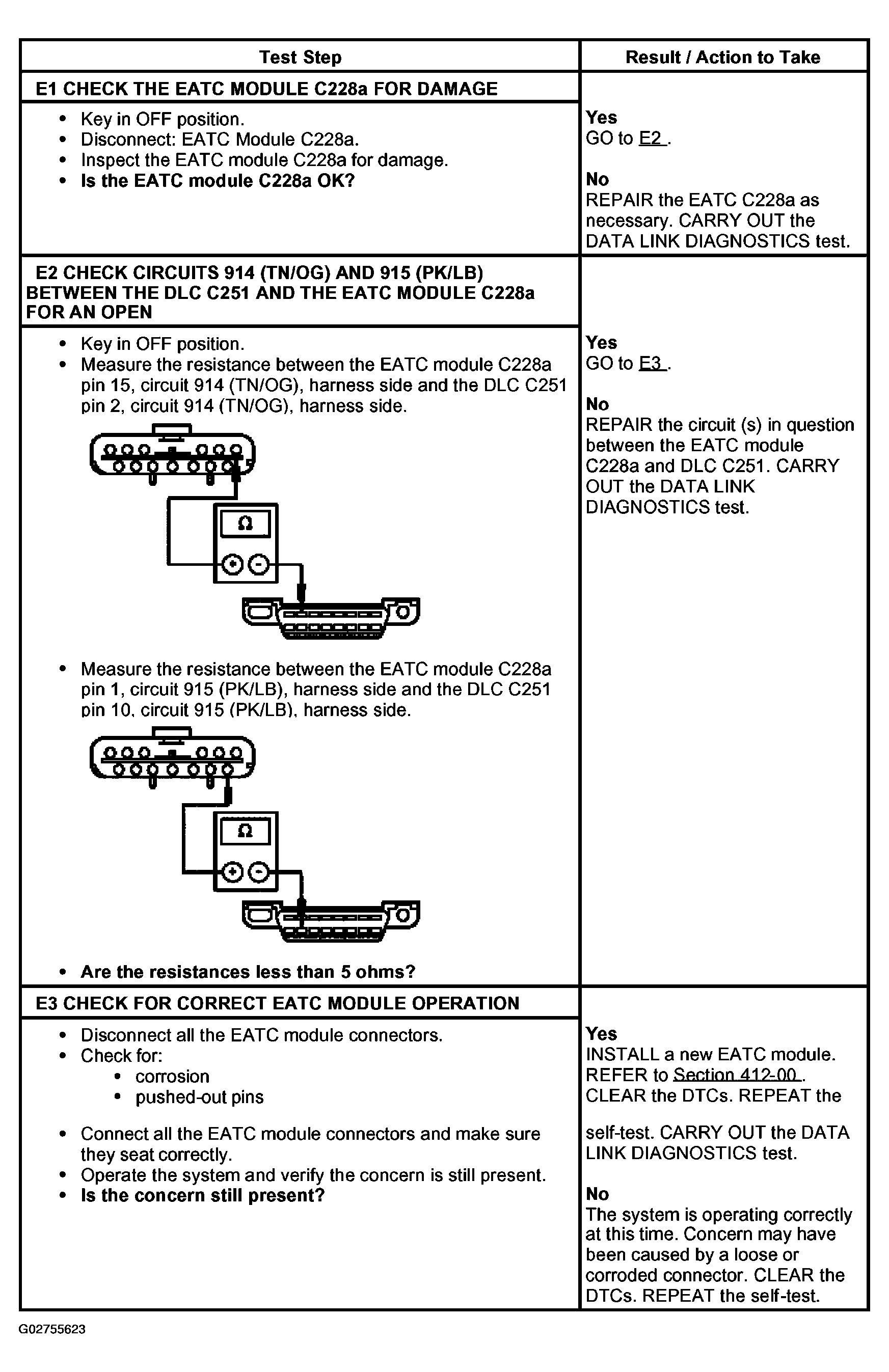

Fig 1: Pinpoint Test E: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool
G02755623Courtesy of FORD MOTOR CO.
