Pinpoint Test A: The Anti-Lock Brake System (Abs) Control Module Does Not Respond To The Diagnostic Tool (SCP)

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

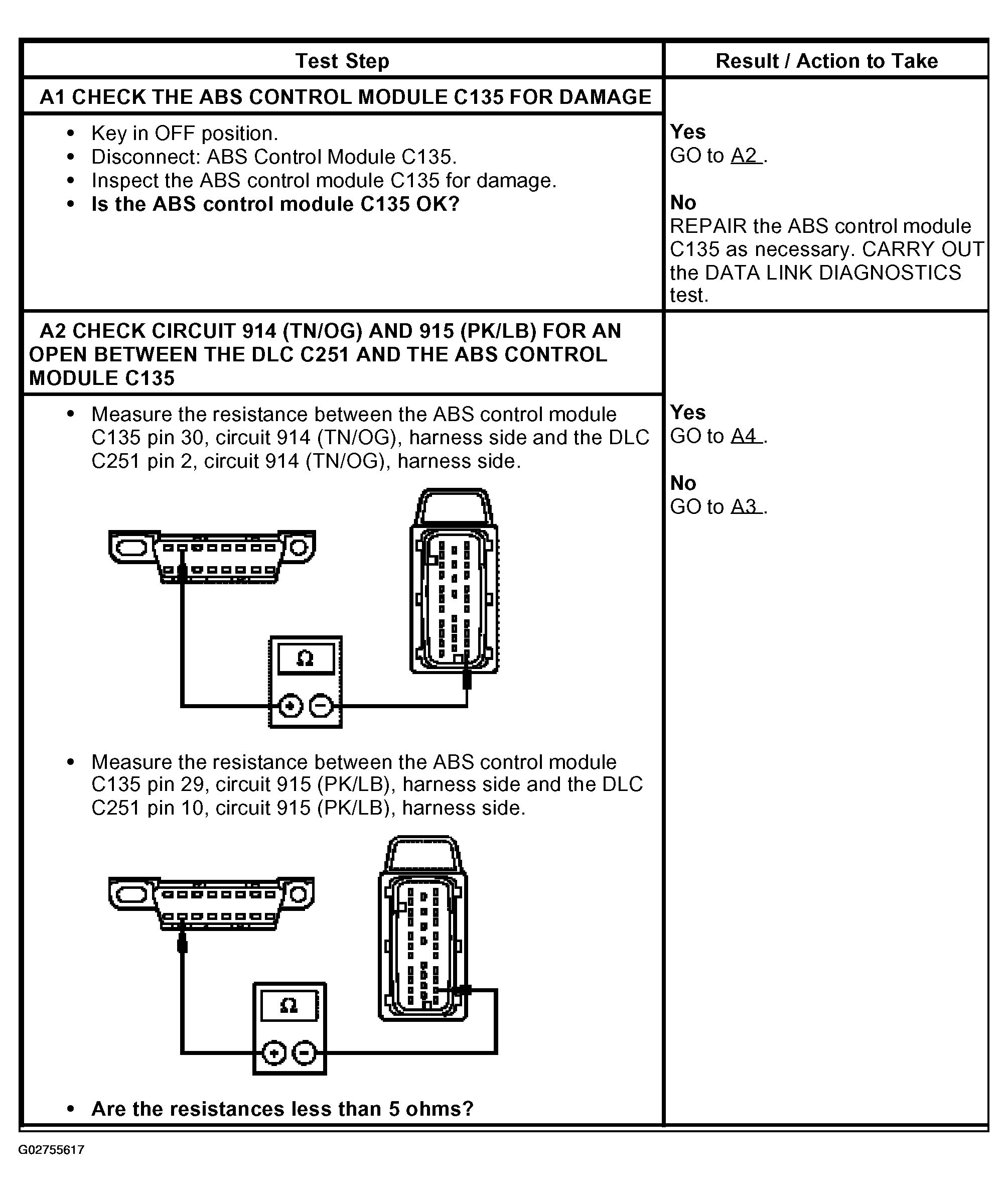

Fig 1: Pinpoint Test A: Anti-Lock Brake System (ABS) Control Module Does Not Respond To Diagnostic Tool (SCP) (Step A1 & A2)
G02755617Courtesy of FORD MOTOR CO.

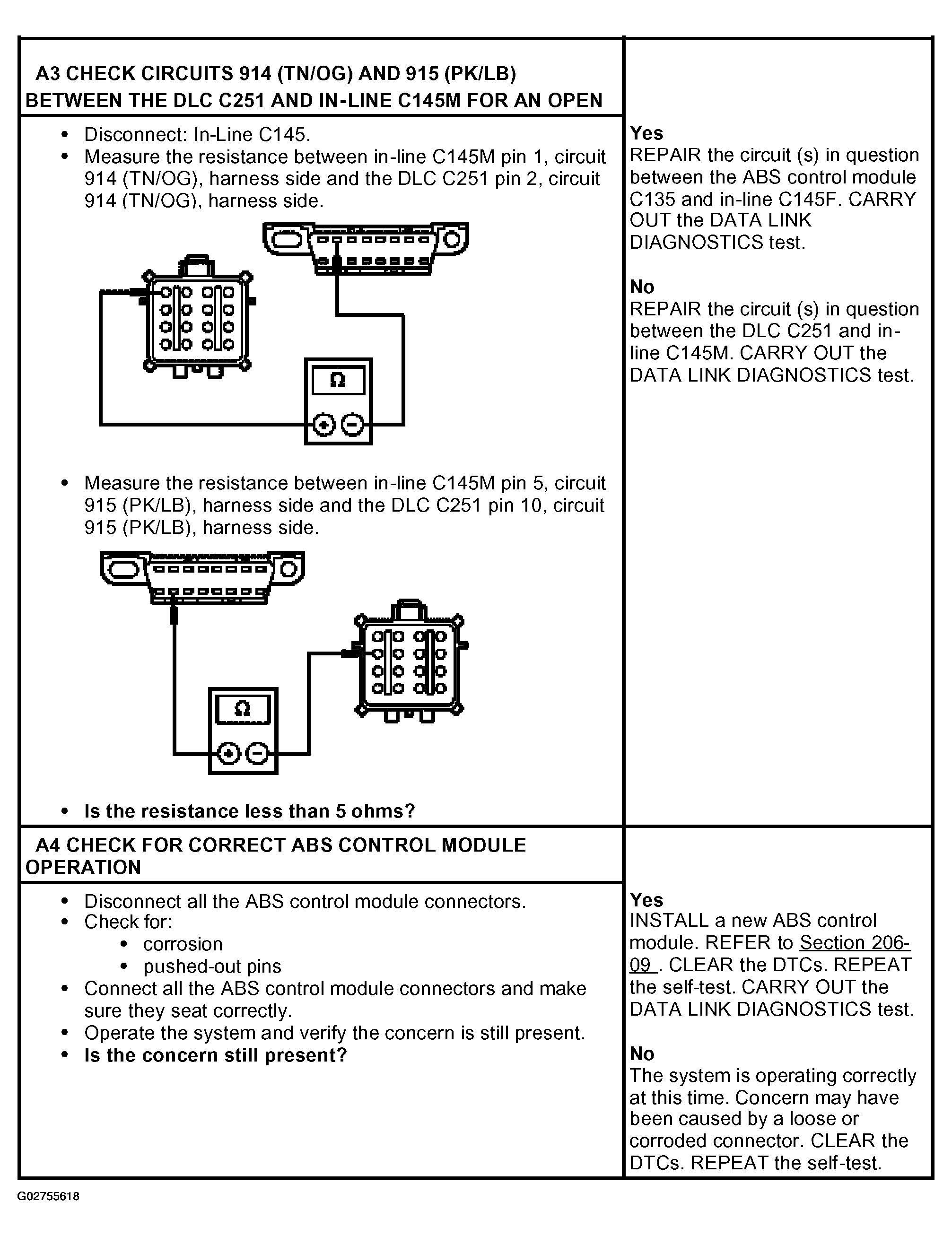

Fig 2: Pinpoint Test A: Anti-Lock Brake System (ABS) Control Module Does Not Respond To Diagnostic Tool (SCP) (Step A3 & A4)
G02755618Courtesy of FORD MOTOR CO.
