Pinpoint Test J: The Alarm System Does Not Arm/Disarm-Using the Keyless Entry Remote Transmitter: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

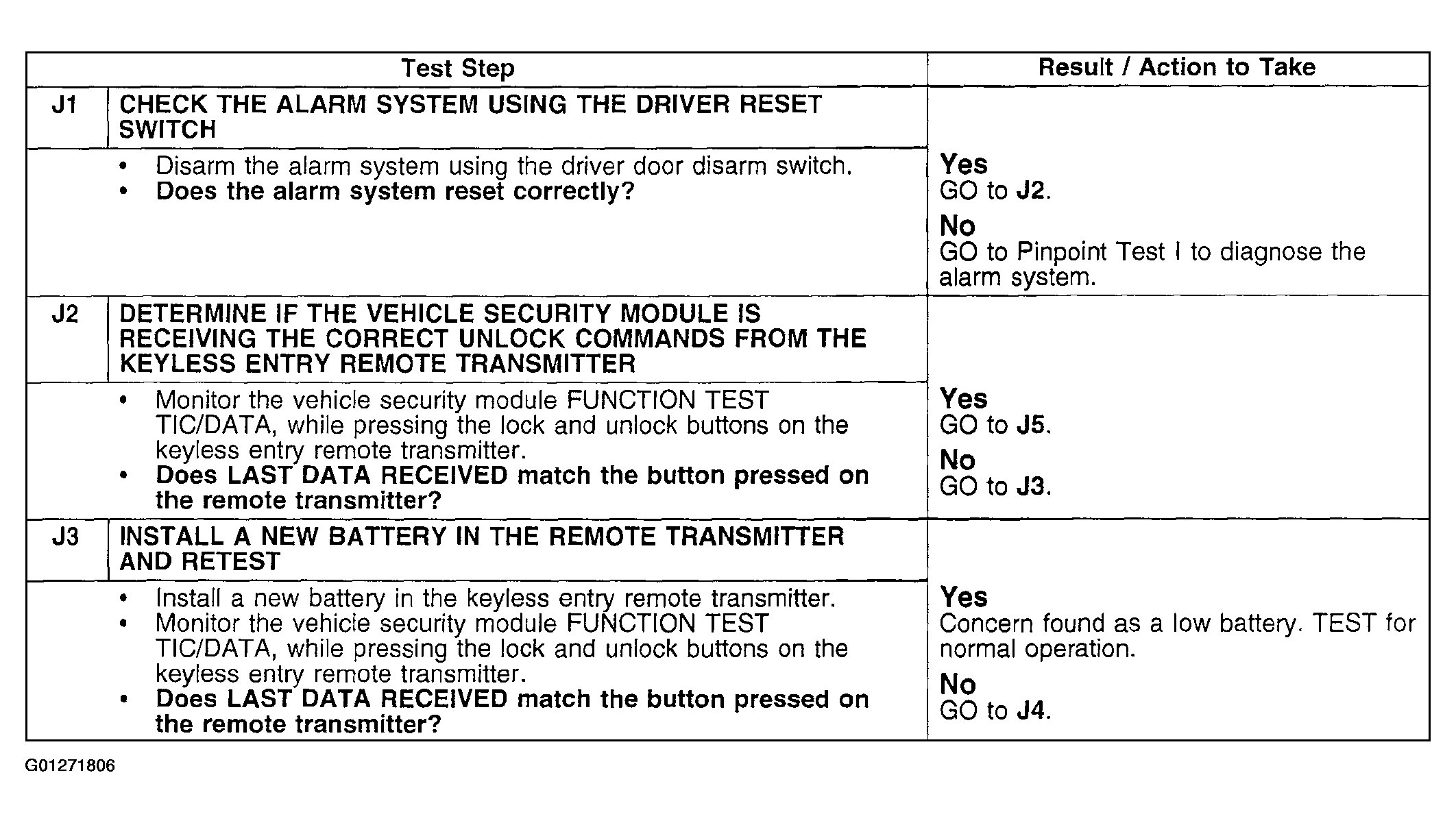

Fig 1: Pinpoint Test J Chart - Alarm System Does Not Arm/Disarm-Using Keyless Entry Remote Transmitter (J1-J3)
G01271806Courtesy of FORD MOTOR CO.

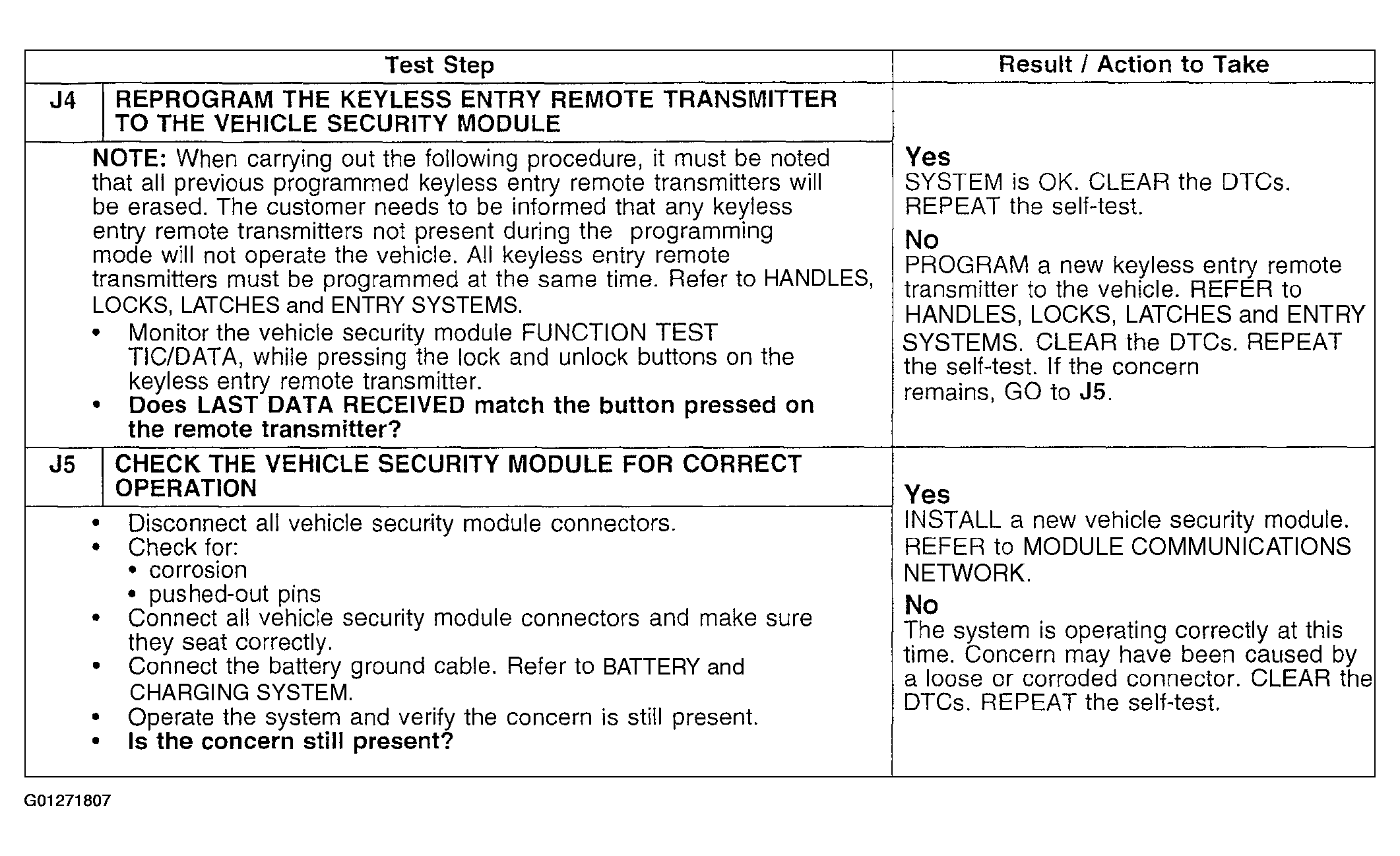

Fig 2: Pinpoint Test J Chart - Alarm System Does Not Arm/Disarm-Using Keyless Entry Remote Transmitter (J4-J5)
G01271807Courtesy of FORD MOTOR CO.
