Vehicle Security Module C3008e

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

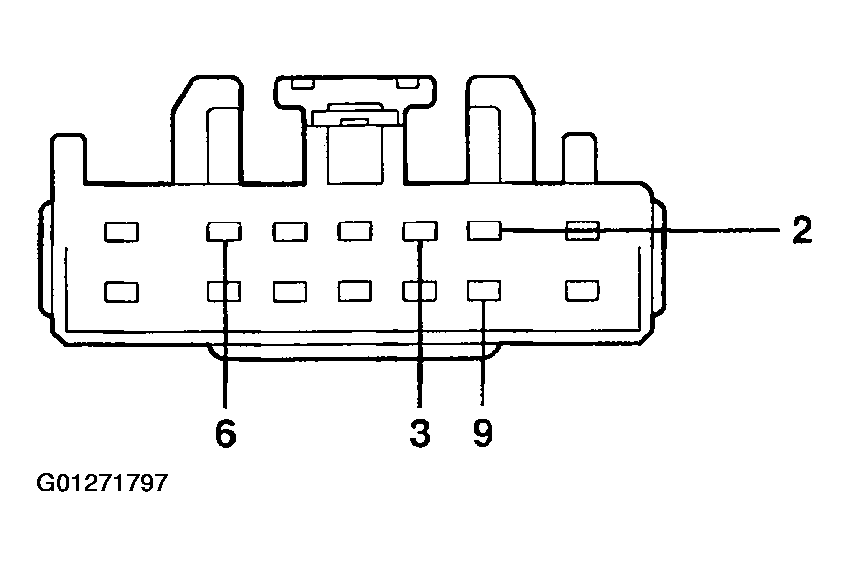

Fig 1: Identifying Vehicle Security Module C3008e Connector Pinouts
G01271797Courtesy of FORD MOTOR CO.

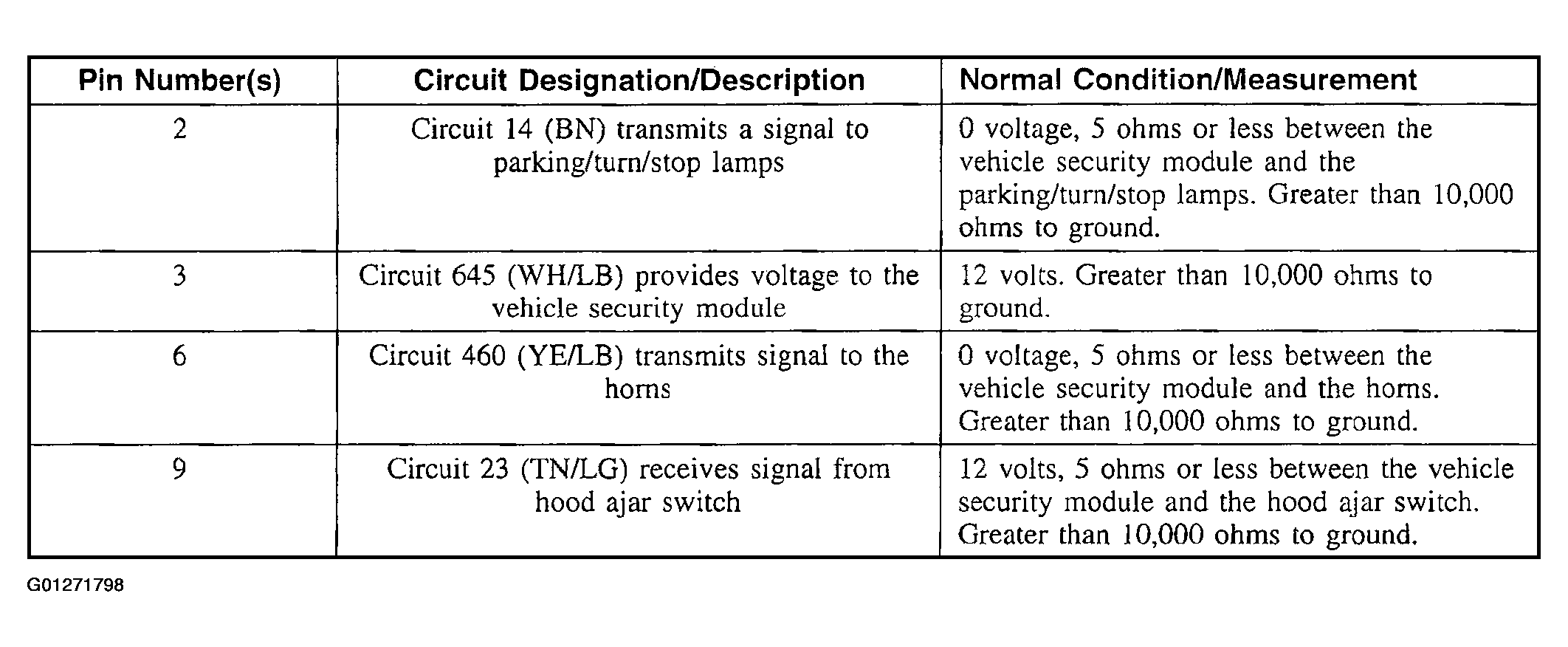

Fig 2: Vehicle Security Module C3008e Connector Pins Reference Table
G01271798Courtesy of FORD MOTOR CO.
