Vehicle Security Module C3008d

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

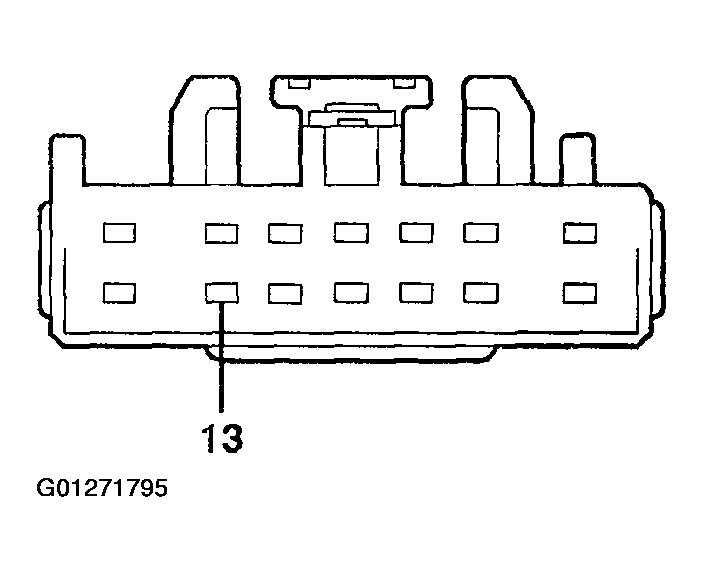

Fig 1: Identifying Vehicle Security Module C3008d Connector Pinouts
G01271795Courtesy of FORD MOTOR CO.

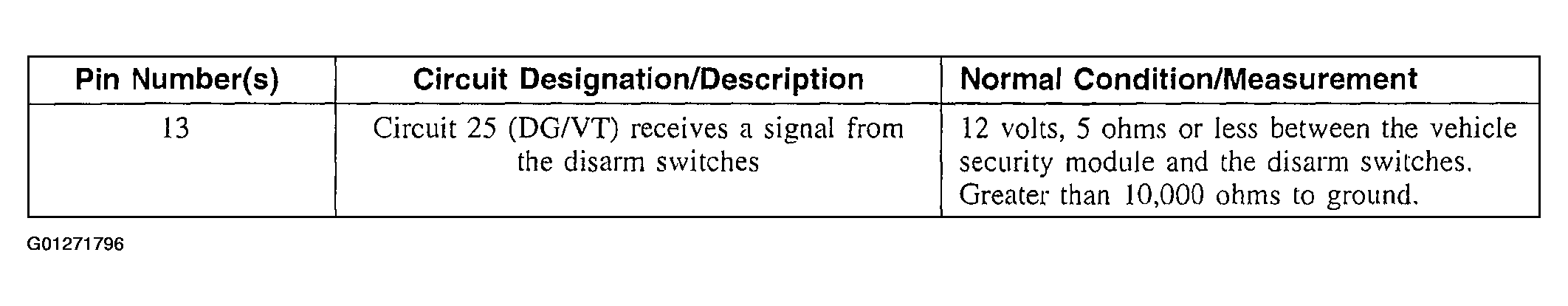

Fig 2: Vehicle Security Module C3008D Connector Pins Reference Table
G01271796Courtesy of FORD MOTOR CO.
