Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver seat. For additional information, refer to SEATING .
  2. Remove the components in the order indicated in the following illustration and the table.

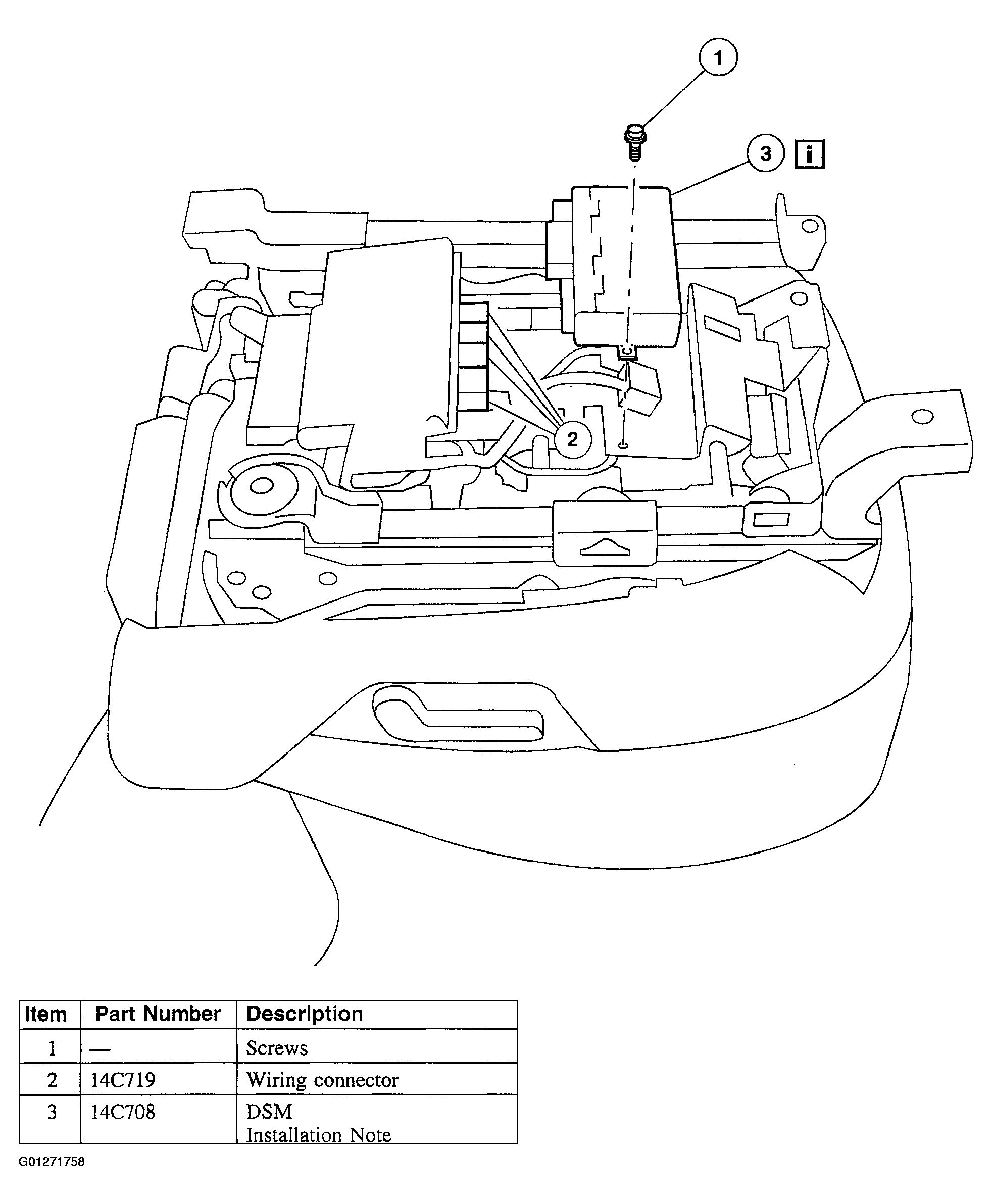

    Fig 1: Identifying Driver Seat Module Components Removing Sequence
    G01271758Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
